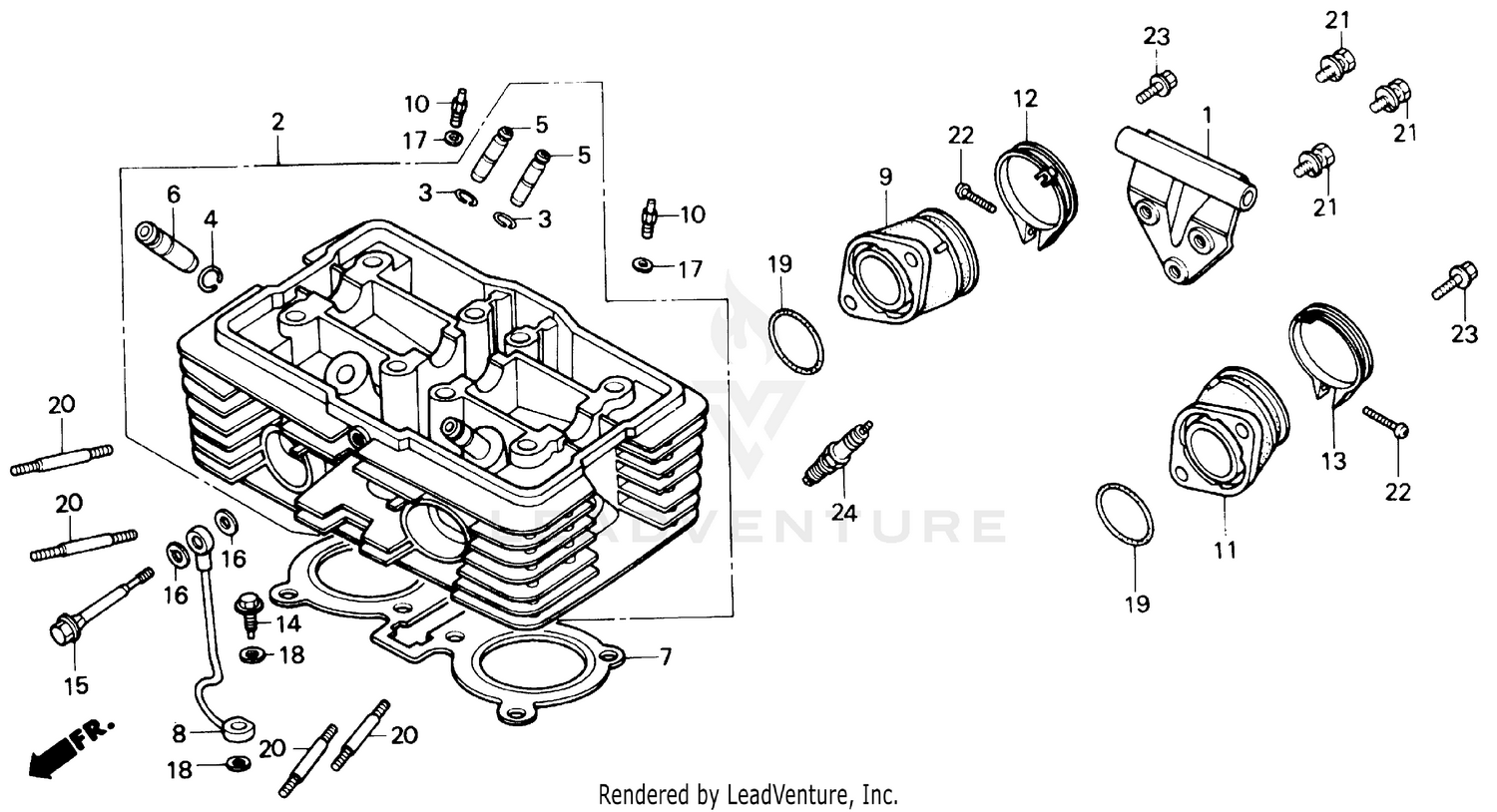

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PLATE, ENGINE HANGER
11851-MM2-670
|
$25.44 | ||
|
Unavailable |
|||
|
#2
CYLINDER HEAD
12200-MM2-670
|
$800.44 | ||
|
Unavailable |
|||
|
#2
CYLINDER HEAD (NOT AVAILABLE)
12200-MM2-671
|
$623.24 | ||
|
Unavailable |
|||
|
#3
CLIP, VALVE GUIDE
12211-ML4-610
|
$1.22 | ||
|
Unavailable |
|||
|
#4
CLIP, VALVE GUIDE
12211-250-310
|
$4.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
GUIDE, VALVE
12231-ML4-305
|
$9.91 | ||
|
Unavailable |
|||
|
#6
GUIDE, EX. VALVE (NOT AVAILABLE)
12241-ML4-305
|
$16.21 | ||
|
Unavailable |
|||
|
#7
GASKET, CYLINDER HEAD
12251-ML4-611
Superseded by 12251-MR4-901
|
$35.74 | ||
|
Unavailable |
|||
|
#7
GASKET, CYLINDER HEAD
12251-ML4-612
Superseded by 12251-MR4-901
|
$35.74 | ||
|
Unavailable |
|||
|
#7
GASKET, CYLINDER HEAD
12251-ML4-613
Superseded by 12251-MR4-901
|
$35.74 | ||
|
Unavailable |
|||
|
#7
GASKET, CYLINDER HEAD
12251-MR4-901
|
$35.74 | ||
|
Unavailable |
|||
|
#8
PIPE B, OIL
15520-MM2-670
|
$43.72 | ||
|
Available to order. Add to View Price |
|||
|
#9
INSULATOR, R. CARBURETOR
16211-MM2-670
|
$31.16 | ||
|
Unavailable |
|||
|
#10
JOINT, BOOSTER
16214-MB0-000
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
JOINT, PB
16221-MA6-000
|
$16.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
INSULATOR, L. CARBURETOR
16221-MM2-670
|
$29.22 | ||
|
Unavailable |
|||
|
#12
BAND, R. INSULATOR
16223-KT6-000
|
$9.20 | ||
|
Unavailable |
|||
|
#12
BAND, R. INSULATOR
16223-MM2-670
|
$5.97 | ||
|
Unavailable |
|||
|
#13
BAND, L. INSULATOR
16224-KT6-000
|
$11.29 | ||
|
Unavailable |
|||
|
#14
BOLT, OIL CONTROL (NOT AVAILABLE)
90045-MC0-000
|
$17.96 | ||
|
Unavailable |
|||
|
#14
BOLT, OIL CONTROL
90045-MM2-670
|
$20.83 | ||
|
Unavailable |
|||
|
#15
BOLT, SPECIAL (6MM)
90130-ML4-610
|
$4.20 | ||
|
Unavailable |
|||
|
#16
WASHER, SEALING (7MM)
90441-MC0-000
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SEALING (5MM)
90452-323-000
|
$1.91 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, OIL BOLT (10.2X15X1.4)
90545-MC0-000
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
O-RING (40X2.4)
91325-413-830
|
$10.56 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, STUD (6X65)
92700-06065-0E
|
$1.71 | ||
|
Unavailable |
|||
|
#20
BOLT 2, STUD (6X50)
92900-06050-0E
|
$1.61 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT-WASHER (8X20)
93482-08020-07
Superseded by 93402-08020-07
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN (5X20)
93500-05020-0G
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X18)
96000-06018-07
Superseded by 96001-06018-07
|
$1.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X18)
96001-06018-07
|
$1.44 | ||
|
Unavailable |
|||
|
#24
SPARK PLUG (DPR7EA-9) (NGK)
98069-57916
|
$2.91 | ||
|
Unavailable |
|||
|
#24
SPARK PLUG (X22EPR-U9) (DENSO)
98069-57926
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPARK PLUG (DPR8EA-9) (NGK)
98069-58916
|
$2.91 | ||
|
Unavailable |
|||
|
#24
SPARK PLUG (X24EPR-U9) (DENSO)
98069-58926
|
$2.80 | ||
|
Unavailable |
|||
|
#24
SPARK PLUG (DPR9EA-9) (NGK)
98069-59916
|
$2.91 | ||
|
Unavailable |
|||
|
#24
SPARK PLUG (X27EPR-U9) (DENSO)
98069-59926
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
