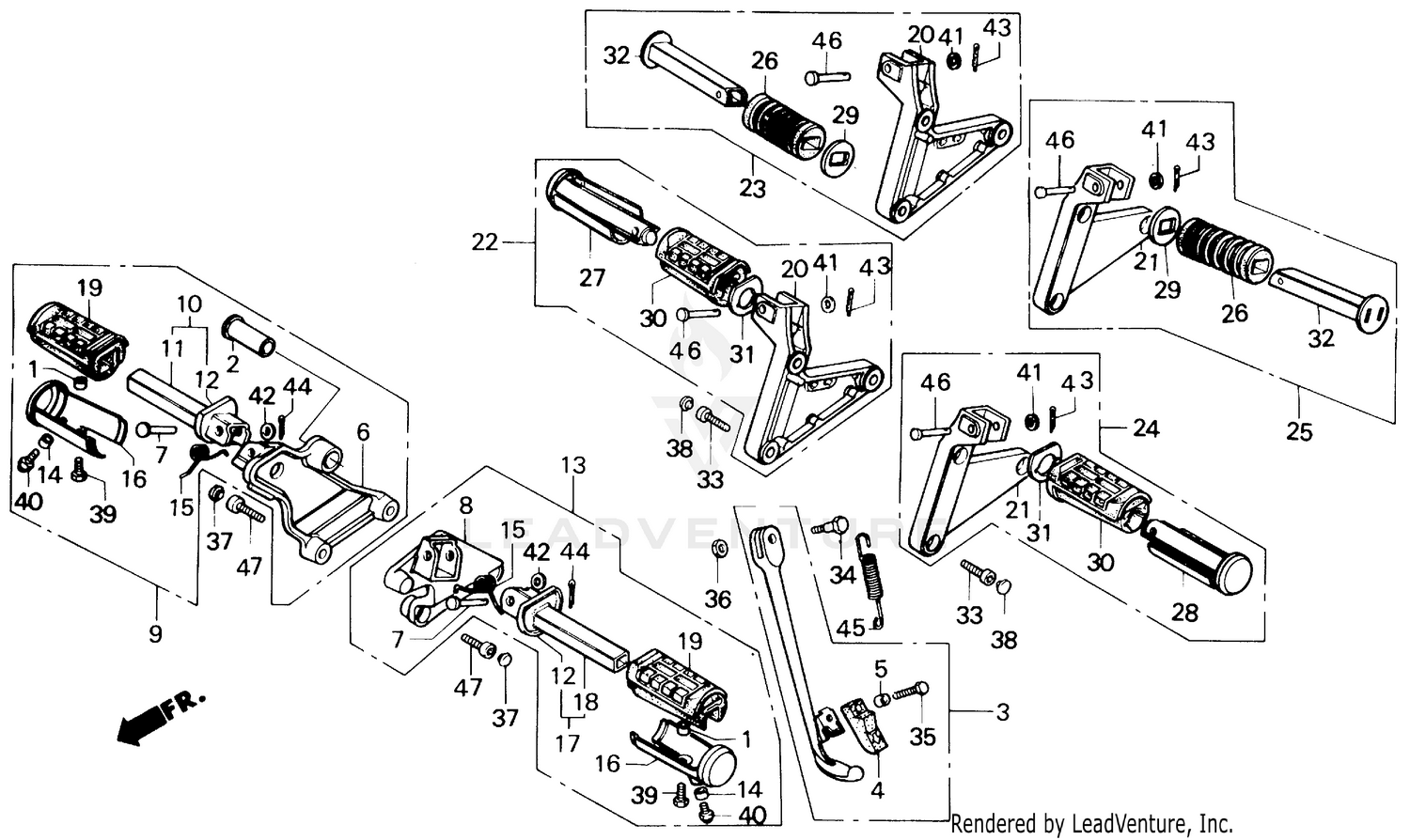

Step Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLLAR, CHAIN CASE
40515-413-000
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
BUSH A, RR. BRAKE PIVOT
46535-MM2-003
|
$15.44 | ||
|
Unavailable |
|||
|
#3
BAR ASSY., SIDE STAND (NOT AVAILABLE)
50540-MM2-000
|
$57.46 | ||
|
Unavailable |
|||
|
#4
RUBBER, STAND
50548-356-700
|
$12.71 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
COLLAR, STAND RUBBER SETTING
50549-356-700
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET ASSY., R. STEP (NOT AVAILABLE)
50601-MM2-000
|
$56.24 | ||
|
Unavailable |
|||
|
#7
PIN, STEP BAR JOINT
50603-033-000
Superseded by 50603-033-010
|
$4.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
PIN, STEP BAR JOINT
50603-033-010
|
$4.02 | ||
|
Unavailable |
|||
|
#8
BRACKET, L. STEP (NOT AVAILABLE)
50605-MM2-000
|
$48.45 | ||
|
Unavailable |
|||
|
#9
STEP ASSY., R. MAIN (NOT AVAILABLE)
50610-MM2-000
|
$93.36 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAR, R. STEP (NOT AVAILABLE)
50612-MM2-000
|
$10.99 | ||
|
Unavailable |
|||
|
#13
STEP ASSY., L. MAIN (NOT AVAILABLE)
50615-MM2-000
|
$71.85 | ||
|
Unavailable |
|||
|
#14
COLLAR, STEP (NOT AVAILABLE)
50616-MM2-000
|
$1.93 | ||
|
Unavailable |
|||
|
#15
SPRING, STEP RETURN
50617-195-000
|
$5.49 | ||
|
Unavailable |
|||
|
#16
STOPPER, STEP RUBBER
50619-MK7-000
|
$15.86 | ||
|
Available to order. Add to View Price |
|||
|
#17
BAR, L. STEP (COO)
50642-MK7-000
Superseded by 50642-MFR-305
|
$21.56 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BAR, L. STEP (COO)
50642-MM8-000
Superseded by 50642-MFR-305
|
$21.56 | ||
|
Unavailable |
|||
|
#19
RUBBER, MAIN STEP (COO)
50661-MK7-000
Superseded by 50661-MFR-305
|
$12.27 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET, R. PILLION STEP (NOT AVAILABLE)
50680-MM2-000
|
$63.67 | ||
|
Unavailable |
|||
|
#21
BRACKET, L. PILLION STEP
50690-MM2-000
|
$64.44 | ||
|
Unavailable |
|||
|
#22
STEP ASSY., R. PILLION (NOT AVAILABLE)
50700-MM2-000
|
$71.90 | ||
|
Unavailable |
|||
|
#24
STEP ASSY., L. PILLION
50705-MM2-000
|
$97.96 | ||
|
Unavailable |
|||
|
#27
BAR, R. PILLION STEP
50711-MK7-000
|
$29.60 | ||
|
Available to order. Add to View Price |
|||
|
#28
BAR, L. PILLION STEP
50712-MK7-000
|
$25.59 | ||
|
Unavailable |
|||
|
#30
RUBBER, PILLION STEP
50713-MK7-000
|
$11.54 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PILLION STEP
50714-MK7-000
|
$5.76 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, SOCKET (8X28)
90105-MA6-750
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW, SIDE STAND PIVOT
90108-KG0-000
|
$10.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
SCREW, SIDE STAND PIVOT
90108-KR3-000
Superseded by 90108-KG0-000
|
$10.00 | ||
|
Unavailable |
|||
|
#35
BOLT, SIDE STAND RUBBER
90115-MB0-000
|
$2.43 | ||
|
Unavailable |
|||
|
#36
NUT, U (10MM)
90304-GE8-003
|
$4.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
CAP, SOCKET BOLT (8MM)
91455-MB0-000
Superseded by 91455-MB0-010
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
CAP, SOCKET BOLT (8MM)
91455-MB0-010
|
$4.75 | ||
|
Unavailable |
|||
|
#38
CAP, SOCKET BOLT (10MM)
91456-MJ0-000
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, HEX. (6X16)
92000-06016-0B
Superseded by 92101-06016-0B
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, HEX. (6X16)
92101-06016-0B
|
$1.47 | ||
|
Unavailable |
|||
|
#40
BOLT, CAP (8X16)
92500-08016-0A
Superseded by 92501-08016-0A
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, CAP (8X16)
92501-08016-0A
|
$2.98 | ||
|
Unavailable |
|||
|
#41
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#41
WASHER, PLAIN (6MM)
94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#42
WASHER, PLAIN (8MM)
94101-08000
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
PIN, COTTER (1.6X10)
94201-16100
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
PIN, COTTER (1.6X25)
94201-16150
Superseded by 94201-16250
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
PIN, COTTER (1.6X25)
94201-16250
|
$1.08 | ||
|
Unavailable |
|||
|
#45
SPRING D, SIDE STAND
95014-72402
|
$3.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#46
PIN C, PILLION FOOTPEG
95015-83000
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#47
BOLT, SOCKET (8X25)
96600-08025-00
|
$2.31 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#47
BOLT, SOCKET (8X25)
96700-08025-00
Superseded by 96600-08025-00
|
$2.31 | ||
|
Unavailable |
|||
