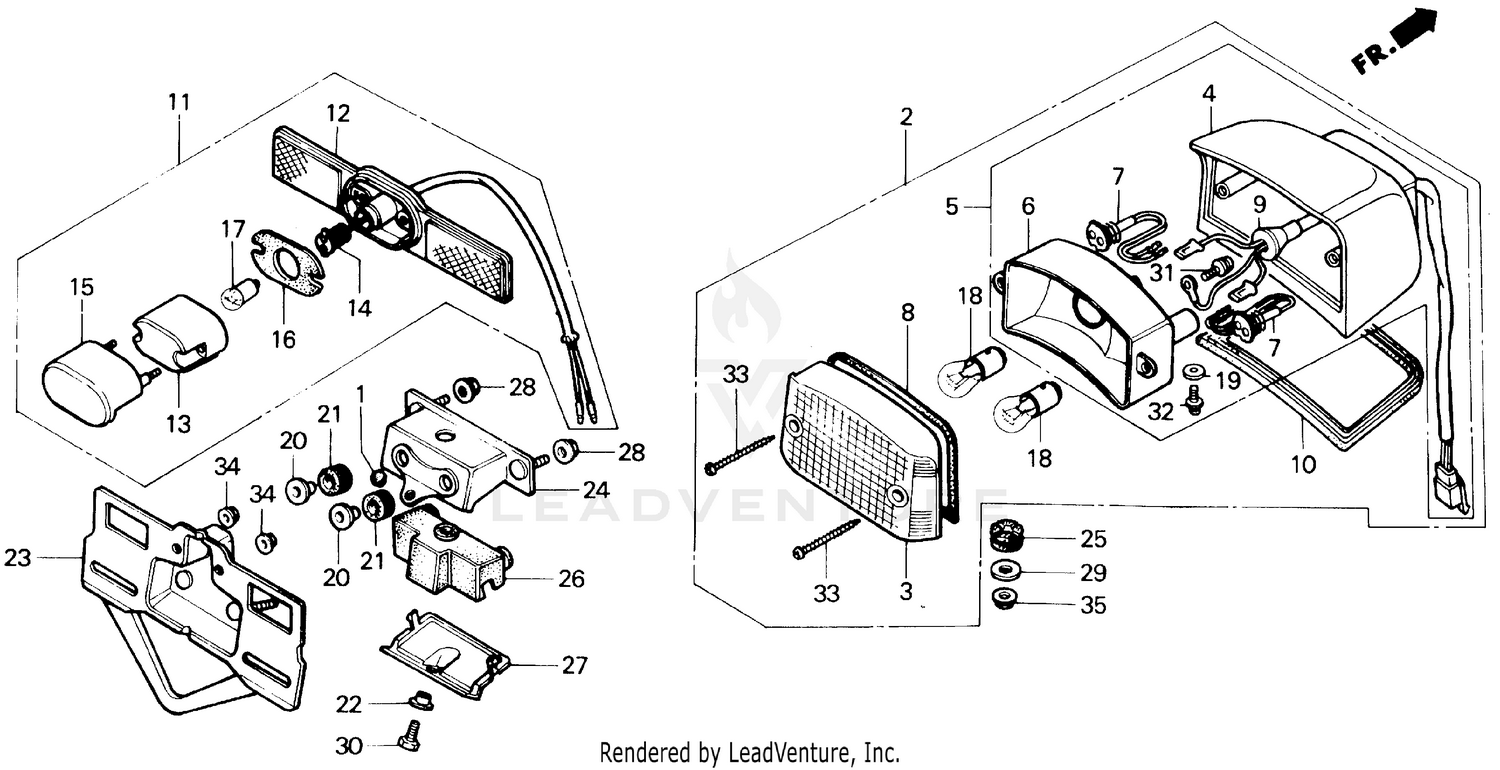

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GROMMET B, RR. TURN SIGNAL WIRE
33666-053-000
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#2
TAILLIGHT UNIT (NOT AVAILABLE)
33701-MM2-671
|
$100.39 | ||
|
Unavailable |
|||
|
#3
LENS, TAILLIGHT (NOT AVAILABLE)
33702-MM2-003
|
$21.80 | ||
|
Unavailable |
|||
|
#4
BASE, TAILLIGHT (NOT AVAILABLE)
33703-MM2-003
|
$34.73 | ||
|
Unavailable |
|||
|
#5
BASE, TAILLIGHT (NOT AVAILABLE)
33704-MM2-671
|
$54.17 | ||
|
Unavailable |
|||
|
#6
REFLECTOR, TAILLIGHT (NOT AVAILABLE)
33705-MM2-671
|
$15.74 | ||
|
Unavailable |
|||
|
#7
WIRE, TAILLIGHT (NOT AVAILABLE)
33706-MM2-003
|
$6.06 | ||
|
Unavailable |
|||
|
#8
GASKET, TAILLIGHT LENS
33709-KR3-671
|
$5.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SUB-WIRE, TAILLIGHT
33711-MM2-003
|
$21.76 | ||
|
Unavailable |
|||
|
#10
GASKET, TAILLIGHT
33717-KR3-671
|
$17.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
LIGHT ASSY., LICENSE (NOT AVAILABLE)
33720-MM2-670
|
$90.32 | ||
|
Unavailable |
|||
|
#12
BASE
33721-MB1-671
|
$103.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
LENS, LICENSE
33722-MB1-013
|
$23.85 | ||
|
Available to order. Add to View Price |
|||
|
#14
WIRE, LICENSE (NOT AVAILABLE)
33725-MM2-670
|
$9.50 | ||
|
Unavailable |
|||
|
#15
COVER
33727-MB1-003
|
$28.21 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET, LENS
33729-MB1-003
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#17
BULB (12V8W)
34616-568-671
Superseded by 34909-505-003
|
$3.45 | ||
|
Unavailable |
|||
|
#17
BULB (12V8W)
34902-500-003
Superseded by 34909-505-003
|
$3.45 | ||
|
Unavailable |
|||
|
#17
BULB (12V8W)
34908-272-000
Superseded by 34909-505-003
|
$3.45 | ||
|
Unavailable |
|||
|
#17
BULB (12V8W4CP) (67) (STANLEY)
34909-505-003
|
$3.45 | ||
|
Unavailable |
|||
|
#17
BULB (12V8W)
34909-505-610
Superseded by 34909-505-003
|
$3.45 | ||
|
Unavailable |
|||
|
#18
BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)
34906-MG9-771
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLAIN (5.5MM)
37314-061-810
|
$3.71 | ||
|
Unavailable |
|||
|
#20
COLLAR, FR. FENDER (WHITE)
61104-MA6-720
Superseded by 61104-428-010
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR, FR. FENDER (WHITE)
61104-357-000
Superseded by 61104-428-010
|
$5.29 | ||
|
Unavailable |
|||
|
#20
COLLAR, FR. FENDER (WHITE)
61104-428-000
Superseded by 61104-428-010
|
$5.29 | ||
|
Unavailable |
|||
|
#21
RUBBER, HEADLIGHT CASE SETTING
61304-415-000
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR, SIDE COVER
61406-MB1-000
|
$2.17 | ||
|
Unavailable |
|||
|
#23
BRACKET, NUMBER PLATE
84701-MG8-000
|
$54.05 | ||
|
Available to order. Add to View Price |
|||
|
#24
STAY, NUMBER PLATE BRACKET
84702-MM2-000
|
$30.45 | ||
|
Unavailable |
|||
|
#25
RUBBER, TAILLIGHT SETTING
84703-KR3-670
|
$4.00 | ||
|
Unavailable |
|||
|
#26
COVER, NUMBER PLATE (INNER)
84703-MM2-000
|
$19.20 | ||
|
Unavailable |
|||
|
#27
COVER, NUMBER PLATE
84704-MM2-000
|
$10.04 | ||
|
Unavailable |
|||
|
#28
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
WASHER, WHEEL (6MM)
90563-355-000
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, WHEEL (6MM)
91414-634-000
Superseded by 90563-355-000
|
$3.93 | ||
|
Unavailable |
|||
|
#30
BOLT, HEX. (5X8)
92000-05008
Superseded by 92101-05008-0A
|
$0.90 | ||
|
Unavailable |
|||
|
#30
BOLT, HEX. (5X8)
92000-05008-0A
Superseded by 92101-05008-0A
|
$0.90 | ||
|
Unavailable |
|||
|
#30
BOLT, HEX. (5X8)
92100-05008-0A
Superseded by 92101-05008-0A
|
$0.90 | ||
|
Unavailable |
|||
|
#30
BOLT, HEX. (5X8)
92101-05008-0A
|
$0.90 | ||
|
Unavailable |
|||
|
#30
BOLT, HEX. (5X8)
93000-05008
Superseded by 92101-05008-0A
|
$0.90 | ||
|
Unavailable |
|||
|
#31
SCREW-WASHER (4X10)
93892-04010-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW-WASHER (4X10)
93892-04010-10
Superseded by 93892-04010-00
|
$1.05 | ||
|
Unavailable |
|||
|
#32
SCREW-WASHER (5X14)
93892-05014-00
|
$0.78 | ||
|
Unavailable |
|||
|
#32
SCREW-WASHER (5X14)
93892-05014-10
Superseded by 93892-05014-00
|
$0.78 | ||
|
Unavailable |
|||
|
#33
SCREW, TAPPING (4X30)
93901-34780
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, CAP (4MM)
94021-04020-0S
|
$0.60 | ||
|
Unavailable |
|||
|
#34
NUT, FLANGE (4MM)
94050-04080
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
Unavailable |
|||
