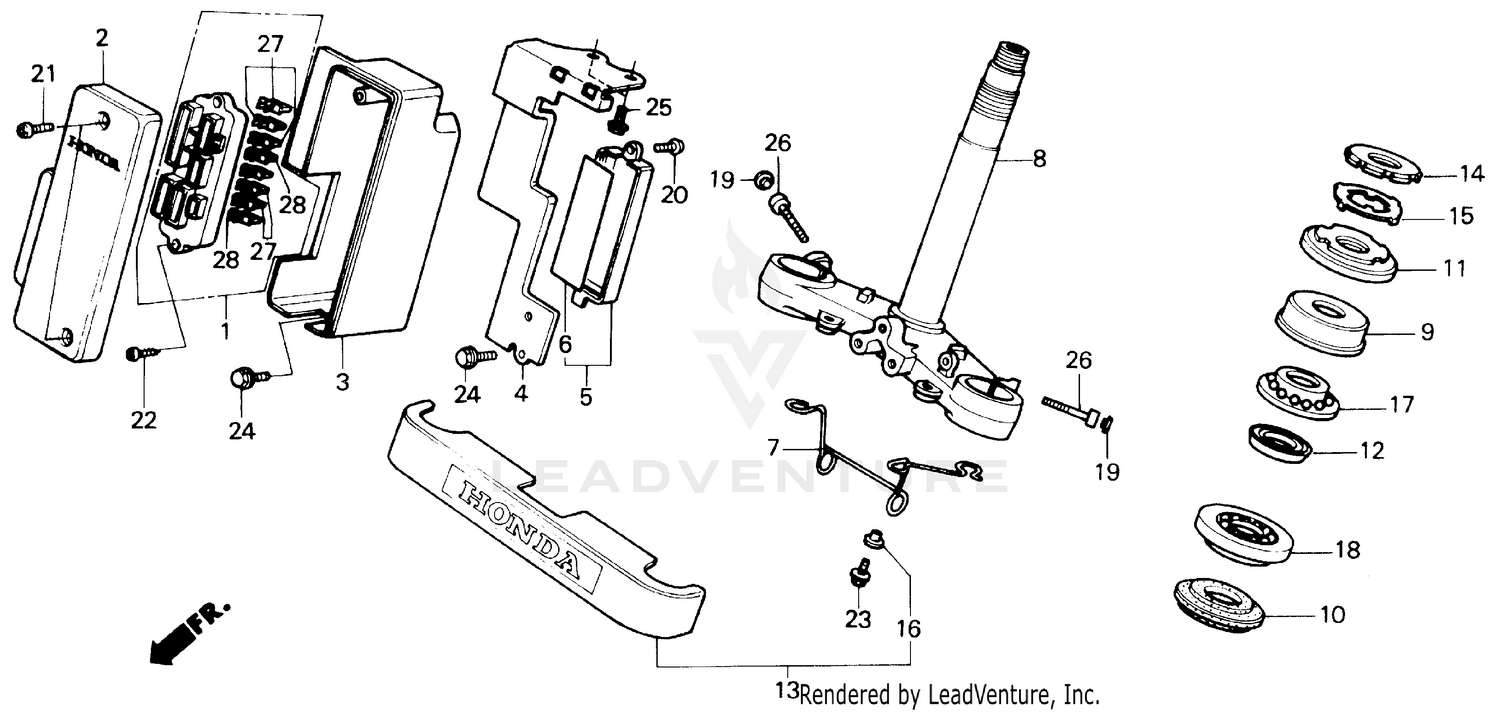

Steering Stem Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOX ASSY., JOINT (NOT AVAILABLE)
32450-MM2-000
|
$42.62 | ||
|
Unavailable |
|||
|
#2
COVER, JOINT BOX (NOT AVAILABLE)
32451-MM2-000
|
$19.33 | ||
|
Unavailable |
|||
|
#3
CASE, JOINT BOX (NOT AVAILABLE)
32452-MM2-000
|
$18.05 | ||
|
Unavailable |
|||
|
#4
STAY, JOINT BOX
32453-MM2-000
|
$24.29 | ||
|
Unavailable |
|||
|
#5
COVER, FUSE
38201-MM2-670
|
$10.16 | ||
|
Unavailable |
|||
|
#6
LABEL, FUSE (NOT AVAILABLE)
38215-MM2-670
|
$2.71 | ||
|
Unavailable |
|||
|
#7
CLAMP, BRAKE HOSE
45466-MM2-000
|
$11.49 | ||
|
Unavailable |
|||
|
#8
STEM, STEERING (NOT AVAILABLE)
53200-MM2-670
|
$209.12 | ||
|
Unavailable |
|||
|
#9
DUST SEAL, STEERING HEAD
53213-MB4-771
|
$14.71 | ||
|
Available to order. Add to View Price |
|||
|
#10
DUST SEAL, STEERING HEAD
53214-371-010
|
$15.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
THREAD, STEERING HEAD (UPPER)
53220-422-000
|
$39.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOLDER, GREASE
53223-371-010
|
$4.92 | ||
|
Unavailable |
|||
|
#13
COVER, FR.
61401-MM2-000
|
$23.60 | ||
|
Unavailable |
|||
|
#14
THREAD, STEERING HEAD TOP (B)
90302-425-830
|
$26.33 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, LOCK
90506-425-830
|
$8.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
WASHER, CHAIN CASE SETTING
90522-028-000
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BEARING, HEAD PIPE (UPPER)
91015-MB4-771
Superseded by 91015-KT8-005
|
$43.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BEARING, HEAD PIPE (UPPER)
91015-KT8-005
|
$43.02 | ||
|
Unavailable |
|||
|
#18
BEARING, HEAD PIPE (LOWER)
91016-MB4-771
Superseded by 91016-KT8-005
|
$43.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BEARING, HEAD PIPE (LOWER)
91016-KT8-005
|
$43.02 | ||
|
Unavailable |
|||
|
#19
CAP, SOCKET BOLT (10MM)
91456-ME1-670
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN (4X12)
93500-04012-0A
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, PAN (4X16)
93500-04016-0G
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
SCREW, TAPPING (4X12)
93901-34320
|
$0.93 | ||
|
Unavailable |
|||
|
#23
BOLT, FLANGE (6X16)
95700-06016-07
Superseded by 95701-06016-07
|
$1.70 | ||
|
Unavailable |
|||
|
#23
BOLT, FLANGE (6X16)
95701-06016-07
|
$1.70 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE (6X12)
96000-06012-00
Superseded by 96001-06012-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X12)
96001-06012-00
|
$1.88 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE (6X14)
96000-06014-07
Superseded by 96001-06014-07
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X14)
96001-06014-07
|
$1.36 | ||
|
Unavailable |
|||
|
#26
BOLT, SOCKET (10X25)
96700-10025-17
|
$1.55 | ||
|
Unavailable |
|||
|
#27
FUSE, BLADE (10A)
98200-31000
|
$1.37 | ||
|
Unavailable |
|||
|
#28
FUSE, BLADE (15A)
98200-31500
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
