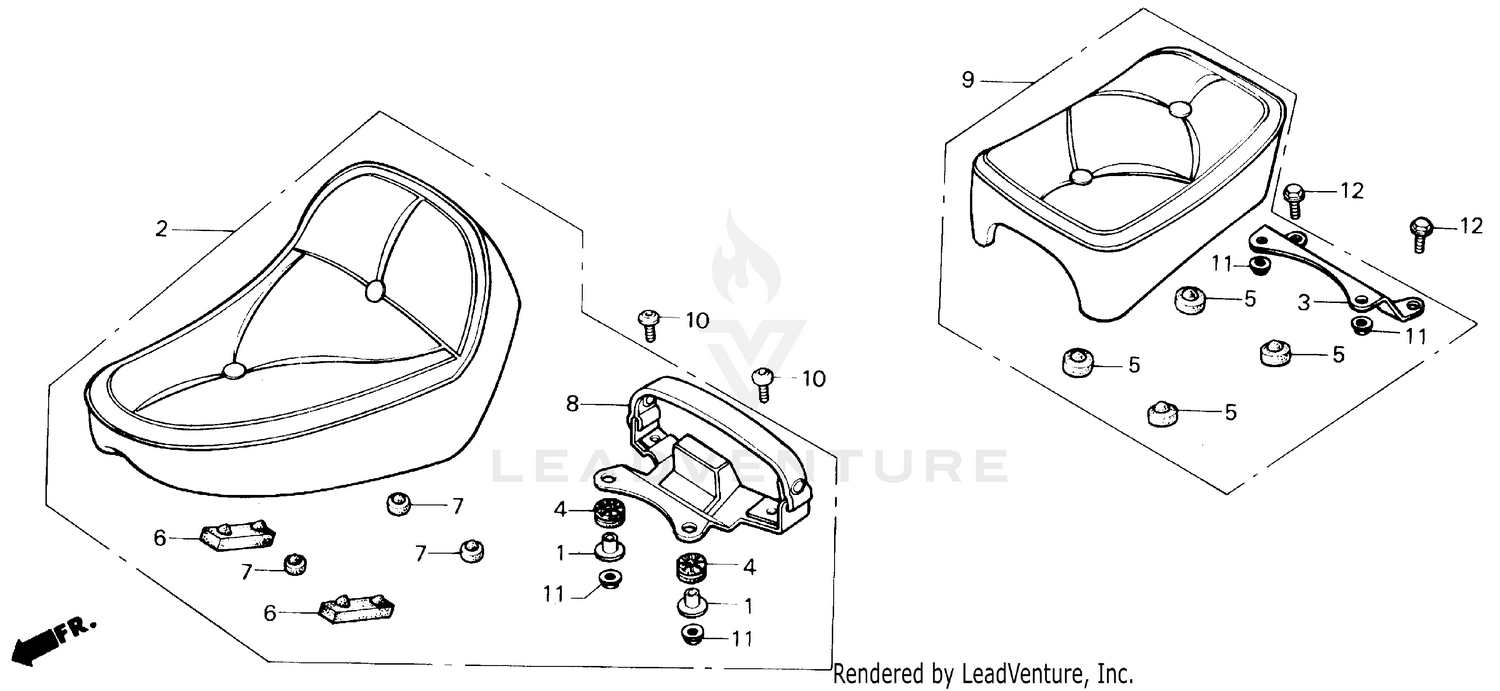

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLLAR (6.3X22)
61318-MF8-000
|
$4.47 | ||
|
Unavailable |
|||
|
#2
SEAT ASSY., FR. (NOT AVAILABLE)
77100-MM2-000
Superseded by 77100-MM2-770
|
$243.22 | ||
|
Unavailable |
|||
|
#3
STAY, RR. SEAT (NOT AVAILABLE)
77203-MM2-000
|
$16.36 | ||
|
Unavailable |
|||
|
#4
RUBBER, SEAT SETTING
77206-MM2-000
|
$4.31 | ||
|
Unavailable |
|||
|
#5
RUBBER, SEAT SETTING
77206-426-000
|
$6.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
RUBBER C, SEAT SETTING (NOT AVAILABLE)
77207-KR3-000
|
$4.27 | ||
|
Unavailable |
|||
|
#7
RUBBER E, SEAT SETTING
77209-KR3-000
|
$3.96 | ||
|
Unavailable |
|||
|
#8
SEAT BELT (NOT AVAILABLE)
77210-MM2-000
|
$58.97 | ||
|
Unavailable |
|||
|
#9
SEAT ASSY., RR. (NOT AVAILABLE)
77300-MM2-000
Superseded by 77300-MM2-770
|
$172.49 | ||
|
Unavailable |
|||
|
#10
BOLT, SPECIAL (8X14)
90129-MM2-000
|
$3.07 | ||
|
Unavailable |
|||
|
#11
NUT, FLANGE (6MM)
94050-06080
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X10)
96000-06010-07
Superseded by 96001-06010-07
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X10)
96001-06010-07
|
$1.70 | ||
|
Unavailable |
|||
