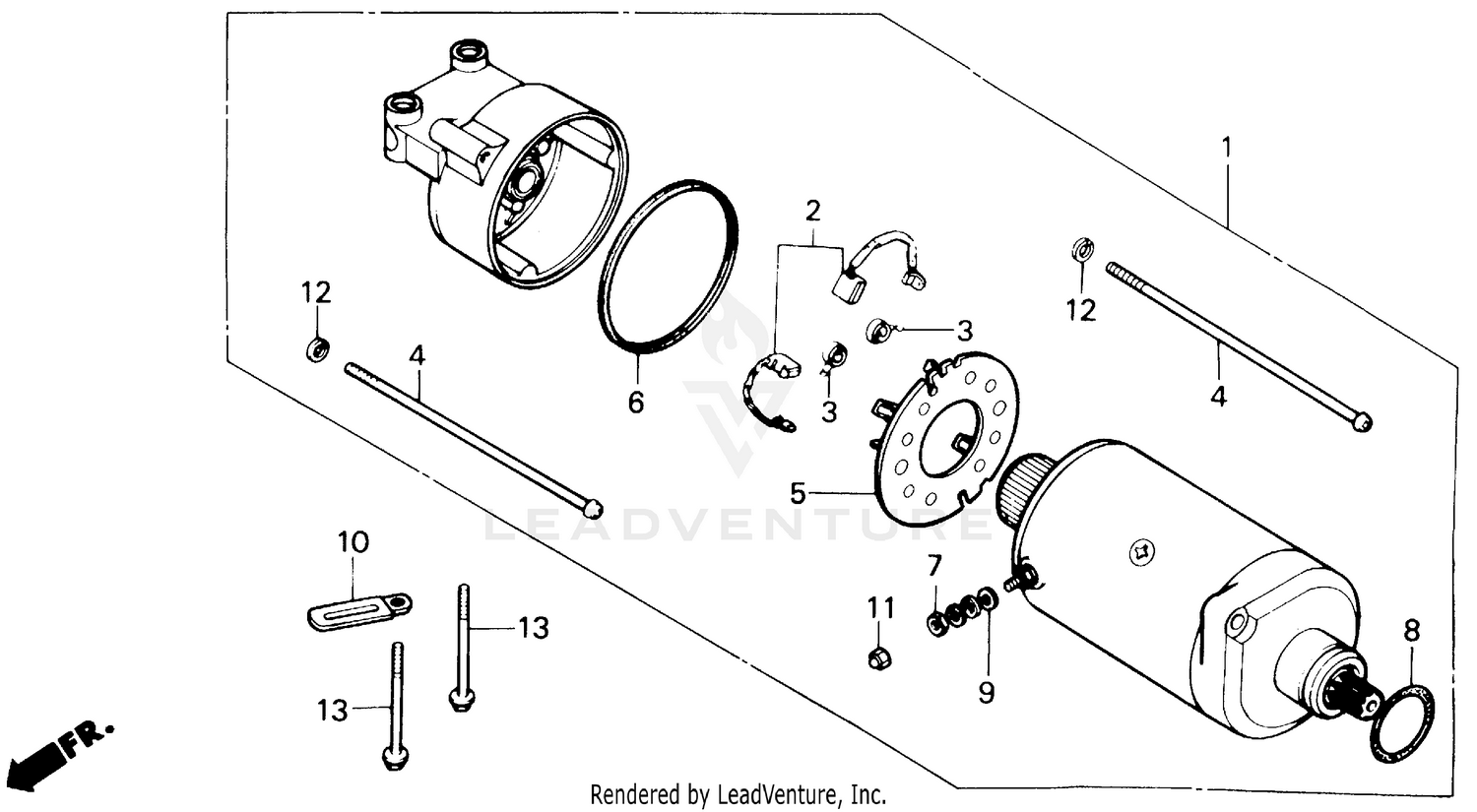

Starter Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STARTER MOTOR ASSY.
31200-MM2-008
Superseded by 31200-MM2-405
|
$319.19 | ||
|
Unavailable |
|||
|
#2
TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)
31201-KG7-000
|
$35.62 | ||
|
Available to order. Add to View Price |
|||
|
#2
TERMINAL SET, BRUSH
31201-MG7-000
|
$13.30 | ||
|
Unavailable |
|||
|
#2
TERMINAL SET, BRUSH
31201-MM2-008
Superseded by 31201-MG7-000
|
$13.30 | ||
|
Unavailable |
|||
|
#3
SPRING, CARBON BRUSH
31204-MA6-000
|
$6.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, SETTING (NOT AVAILABLE)
31205-HA0-000
|
$3.27 | ||
|
Unavailable |
|||
|
#5
HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)
31206-KG7-000
Superseded by 31206-MM5-008
|
$22.07 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)
31206-MM2-008
Superseded by 31206-MM5-008
|
$22.07 | ||
|
Unavailable |
|||
|
#5
HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)
31206-MM5-008
|
$22.07 | ||
|
Unavailable |
|||
|
#6
RING, SEAL
31207-179-711
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT-WASHER (6MM)
90071-MB0-000
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING (24.4X3.1)
91309-425-003
Superseded by 91312-MG7-003
|
$7.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
O-RING (24.4X3.1)
91312-MG7-003
|
$7.98 | ||
|
Unavailable |
|||
|
#9
O-RING
91320-MB0-000
|
$2.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CLIP, CABLE
91405-671-000
|
$9.88 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, CAP (6MM)
94021-06000
Superseded by 94021-06020
|
$1.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
NUT, CAP (6MM)
94021-06000-0S
Superseded by 94021-06020
|
$1.90 | ||
|
Unavailable |
|||
|
#11
NUT, CAP (6MM)
94021-06020
|
$1.90 | ||
|
Unavailable |
|||
|
#11
NUT, CAP (6MM)
94021-06020-0S
Superseded by 94021-06020
|
$1.90 | ||
|
Unavailable |
|||
|
#11
NUT, CAP (6MM)
94022-06020
Superseded by 94021-06020
|
$1.90 | ||
|
Unavailable |
|||
|
#12
WASHER, SPRING (5MM)
94111-05000
|
$1.18 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X60)
95700-06060-00
Superseded by 95701-06060-00
|
$0.36 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X60)
95701-06060-00
|
$0.36 | ||
|
Unavailable |
|||
