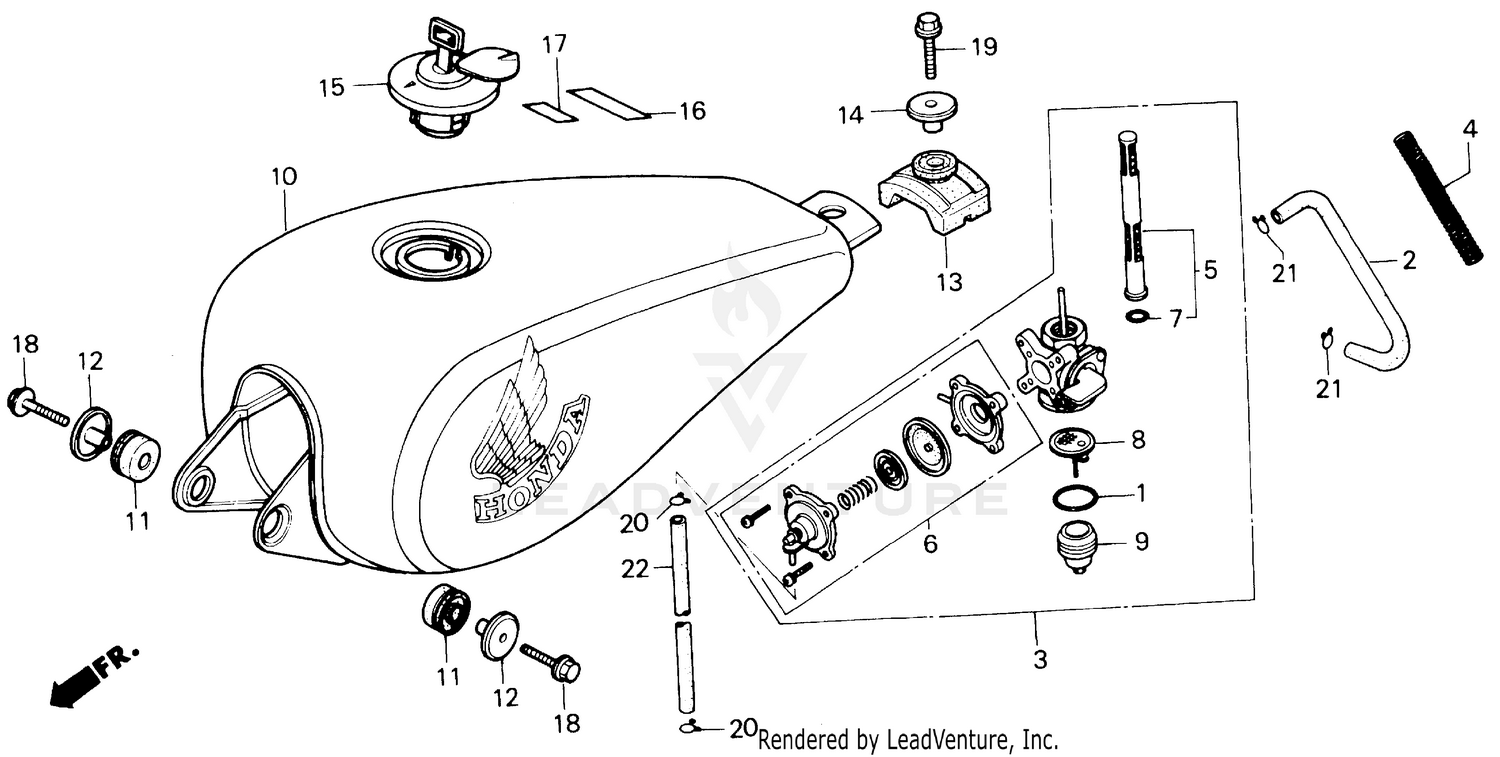

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, FUEL STRAINER CUP
16173-001-004
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
TUBE, FUEL TANK (NOT AVAILABLE)
16940-MM2-000
|
$7.01 | ||
|
Unavailable |
|||
|
#3
PETCOCK ASSY., AUTO
16950-MM2-003
Superseded by 16950-MM2-013
|
$161.33 | ||
|
Unavailable |
|||
|
#4
WIRE B, GUARD
16952-MF5-000
|
$15.24 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, TUBE COVER (9MM)
17468-MF8-790
|
$6.28 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREEN SET, FUEL STRAINER
16952-MM2-003
Superseded by 16952-MM9-305
|
$30.79 | ||
|
Unavailable |
|||
|
#6
COVER SET, PETCOCK
16953-ME5-005
Superseded by 16953-ME5-025
|
$54.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
16195-657-300
Superseded by 16075-GHB-720
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
16958-MA1-731
Superseded by 16075-GHB-720
|
$3.67 | ||
|
Unavailable |
|||
|
#8
FILTER, CUP
16959-MF5-841
|
$11.88 | ||
|
Unavailable |
|||
|
#9
CUP, FUEL STRAINER
16967-GA6-671
|
$28.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
TANK SUB-ASSY., FUEL *NH150PA* (TYPE1) (WL) (PEARL STELLAR BLACK) (NOT AVAILABLE)
17530-MM2-000ZA
Superseded by 17530-MM2-010ZA
|
$430.12 | ||
|
Unavailable |
|||
|
#10
TANK SUB-ASSY., FUEL *NH145MU* (TYPE2) (WL) (MONTE ROSA SILVER) (NOT AVAILABLE)
17530-MM2-000ZB
Superseded by 17530-MM2-010ZB
|
$499.23 | ||
|
Unavailable |
|||
|
#10
TANK SUB-ASSY., FUEL *NH150PA* (TYPE1) (WL) (PEARL STELLAR BLACK) (NOT AVAILABLE)
17530-MM2-010ZA
|
$430.12 | ||
|
Unavailable |
|||
|
#10
TANK SUB-ASSY., FUEL *NH145MU* (TYPE2) (WL) (MONTE ROSA SILVER) (NOT AVAILABLE)
17530-MM2-010ZB
|
$499.23 | ||
|
Unavailable |
|||
|
#11
RUBBER, FR. TANK
17611-449-010
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, FR. TANK SETTING
17612-449-000
|
$15.42 | ||
|
Unavailable |
|||
|
#13
RUBBER, RR. FUEL TANK (NOT AVAILABLE)
17613-MM2-000
|
$8.59 | ||
|
Unavailable |
|||
|
#14
COLLAR, RR. TANK SETTING
17614-MM2-000
|
$11.28 | ||
|
Unavailable |
|||
|
#15
CAP, FUEL FILLER
17620-KR3-013
Superseded by 17620-KR3-023
|
$113.67 | ||
|
Available to order. Add to View Price |
|||
|
#16
MARK, ACCESSORIES & LOADING CAUTION (GOLD) (NOT AVAILABLE)
87512-KR3-670
|
$4.60 | ||
|
Unavailable |
|||
|
#17
LABEL, DRIVE CAUTION *A73* (TYPEG) (GOLD)
87560-ME9-670ZA
|
$6.56 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, SPECIAL FLANGE (8X32)
90122-KR3-000
|
$4.87 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, SPECIAL FLANGE (8X22)
90123-MM2-000
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP, TUBE (B7)
95002-02070
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
CLIP, TUBE (B8)
95002-02080
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
CLIP, TUBE (B12)
95002-02120
|
$2.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BULK HOSE, VACUUM (4.5X1000) (4.5X70)
95005-45001-10M
|
$28.42 | ||
|
Available to order. Add to View Price |
|||
