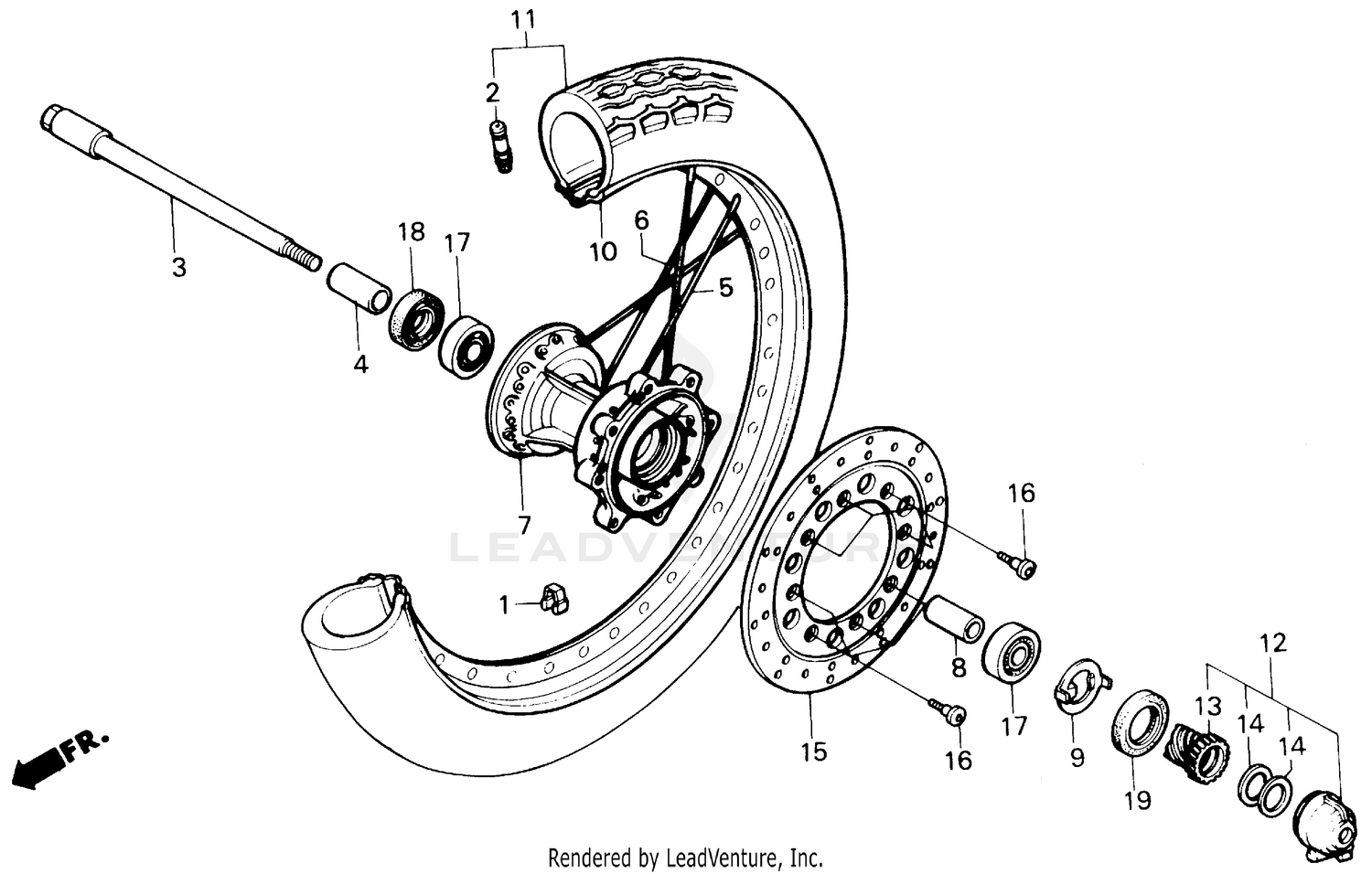

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WEIGHT, BALANCE (10G)
42704-MM2-670
|
$7.54 | ||
|
Unavailable |
|||
|
#1
WEIGHT, BALANCE (20G)
42705-MM2-670
|
$8.74 | ||
|
Unavailable |
|||
|
#1
WEIGHT, BALANCE (30G)
42706-MM2-670
|
$8.74 | ||
|
Unavailable |
|||
|
#2
VALVE, RIM (BS)
42753-ML7-003
|
$15.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
VALVE, RIM (DUNLOP)
42753-ML7-004
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#3
AXLE, FR. WHEEL (NOT AVAILABLE)
44301-MM2-670
|
$26.26 | ||
|
Unavailable |
|||
|
#4
COLLAR, FR. WHEEL SIDE (NOT AVAILABLE)
44311-MM2-670
|
$6.43 | ||
|
Unavailable |
|||
|
#5
SPOKE SET A, FR.
446A0-MM2-671
|
$4.20 | ||
|
Unavailable |
|||
|
#6
SPOKE SET B, FR.
446B0-MM2-671
|
$3.78 | ||
|
Unavailable |
|||
|
#7
HUB, FR. WHEEL
44601-MM2-670
|
$223.75 | ||
|
Unavailable |
|||
|
#8
COLLAR, FR. AXLE DISTANCE (NOT AVAILABLE)
44620-MM2-670
|
$6.57 | ||
|
Unavailable |
|||
|
#9
RETAINER, GEAR BOX
44680-410-000
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#10
RIM, FR. WHEEL (DAIDO) (NOT AVAILABLE)
44701-MM2-671
|
$276.25 | ||
|
Unavailable |
|||
|
#11
TIRE ASSY., FR. (100/90-18) (DUNLOP) (NOT AVAILABLE)
44710-MM2-671
Superseded by 44710-MG0-722
|
$71.50 | ||
|
Unavailable |
|||
|
#11
TIRE ASSY., FR. (100/90-18) (DUNLOP) (NOT AVAILABLE)
44710-MM2-672
Superseded by 44710-MG0-722
|
$71.50 | ||
|
Unavailable |
|||
|
#12
BOX ASSY., SPEEDOMETER GEAR (NOT AVAILABLE)
44800-MK4-013
Superseded by 44800-MK4-023
|
$74.11 | ||
|
Unavailable |
|||
|
#13
GEAR, SPEEDOMETER (NOT AVAILABLE)
44806-MK4-003
|
$17.65 | ||
|
Unavailable |
|||
|
#14
WASHER, SPEEDOMETER GEAR
44809-402-000
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#15
DISK, FR. BRAKE (NOT AVAILABLE)
45251-MM2-670
|
$410.91 | ||
|
Unavailable |
|||
|
#16
BOLT, FR. DISK (8X24)
90105-KR3-000
|
$7.62 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING,BALL RADI
91052-KR3-005
Superseded by 91051-KEH-662
|
$46.73 | ||
|
Available to order. Add to View Price |
|||
|
#18
DUST SEAL (22X42X7)
91252-MC7-003
|
$9.36 | ||
|
Available to order. Add to View Price |
|||
|
#19
DUST SEAL (40X50X5) (ARAI)
91258-410-013
|
$11.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
