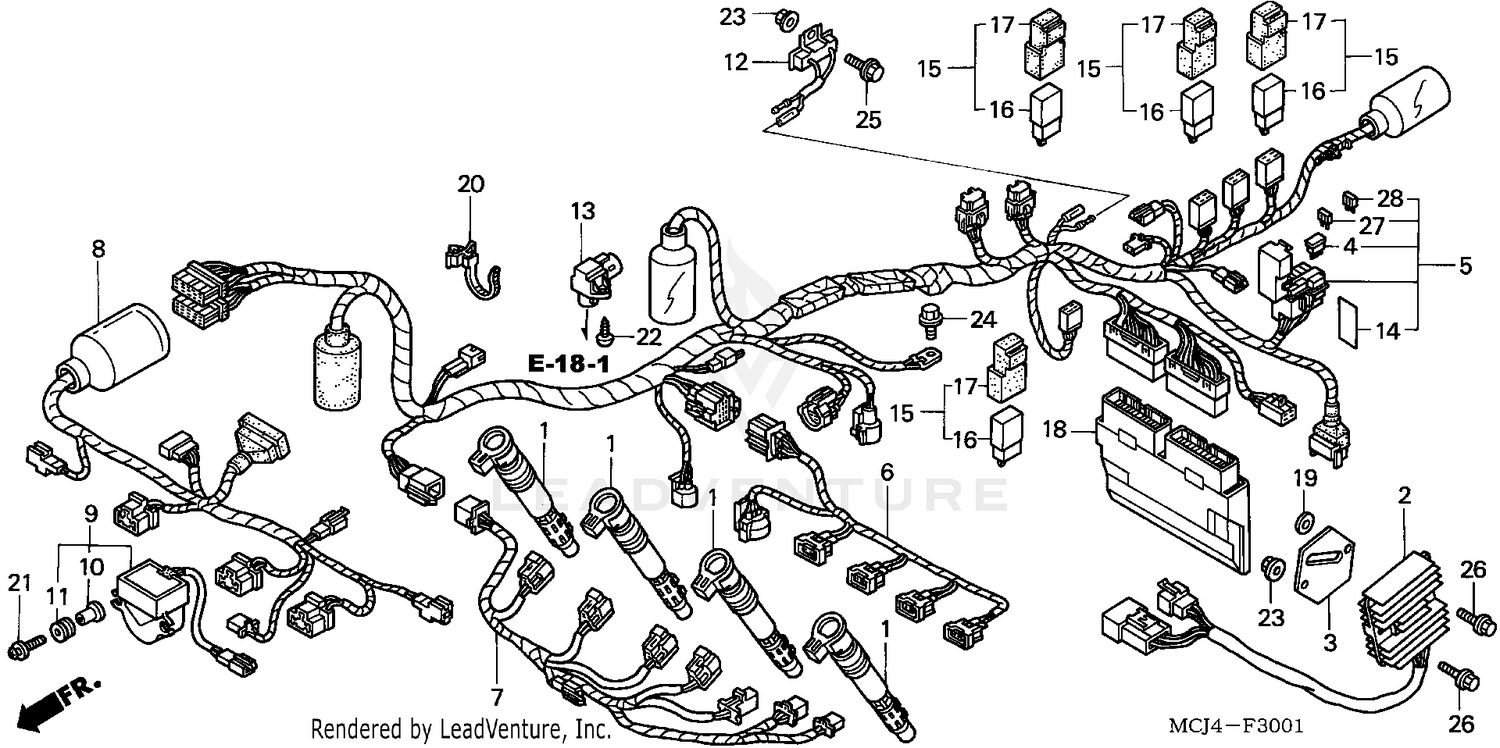

Wire Harness (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COIL, CAP & IGNITION
30700-MBW-611
|
$93.98 | ||
|
Available to order. Add to View Price |
|||
|
#2
RECTIFIER ASSY., REGULATOR
31600-MCJ-750
|
$252.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER, REGULATOR RECTIFIER
31605-MCJ-750
|
$3.58 | ||
|
Unavailable |
|||
|
#4
DIODE ASSY., THREE WAY (SUMITOMO)
31730-MAS-601
|
$13.09 | ||
|
Available to order. Add to View Price |
|||
|
#5
WIRE HARNESS
32100-MCJ-A00
|
$440.16 | ||
|
Unavailable |
|||
|
#6
SUB-WIRE, INJECTOR
32102-MCJ-750
|
$66.52 | ||
|
Unavailable |
|||
|
#7
SUB-HARNESS, IGNITION
32103-MCJ-750
|
$70.68 | ||
|
Unavailable |
|||
|
#8
SUB-HARNESS, FR.
32105-MCJ-A00
|
$130.01 | ||
|
Available to order. Add to View Price |
|||
|
#9
SENSOR ASSY., BANK ANGLE
35160-MBW-D21
Superseded by 35160-MBW-D22
|
$162.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
SENSOR ASSY., BANK ANGLE
35160-MBW-D22
|
$162.55 | ||
|
Unavailable |
|||
|
#10
COLLAR
35162-MN5-003
|
$9.11 | ||
|
Available to order. Add to View Price |
|||
|
#11
GROMMET
35163-MN5-003
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
RESISTOR
35400-MCJ-750
|
$16.53 | ||
|
Unavailable |
|||
|
#13
SENSOR, MAP
37830-MCF-003
|
$250.33 | ||
|
Available to order. Add to View Price |
|||
|
#14
LABEL, FUSE
38215-MCJ-D00
|
$3.52 | ||
|
Available to order. Add to View Price |
|||
|
#15
RELAY ASSY., STARTER
38500-GC7-612
|
$57.31 | ||
|
Available to order. Add to View Price |
|||
|
#16
RELAY, STARTER (MITSUBA)
38501-GN2-014
|
$60.16 | ||
|
Available to order. Add to View Price |
|||
|
#17
SUSPENSION, STARTER RELAY (MITSUBA)
38506-GC7-611
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#18
PGM-FI UNIT
38770-MCJ-A01
|
$1,123.58 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER (6MM)
90402-921-000
|
$1.46 | ||
|
Unavailable |
|||
|
#20
BAND, WIRE HARNESS (150MM) (NATURAL)
90649-SC2-003
|
$7.30 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW-WASHER (4X20)
93891-04020-00
|
$0.71 | ||
|
Unavailable |
|||
|
#22
SCREW, TAPPING (4X12)
93913-24220
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X16)
95701-06016-08
|
$1.52 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X10)
96001-06010-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X25)
96001-06025-00
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
FUSE, MINI (10A)
98200-41000
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#28
FUSE, MINI (20A)
98200-42000
|
$1.27 | ||
|
Available to order. Add to View Price |
|||
