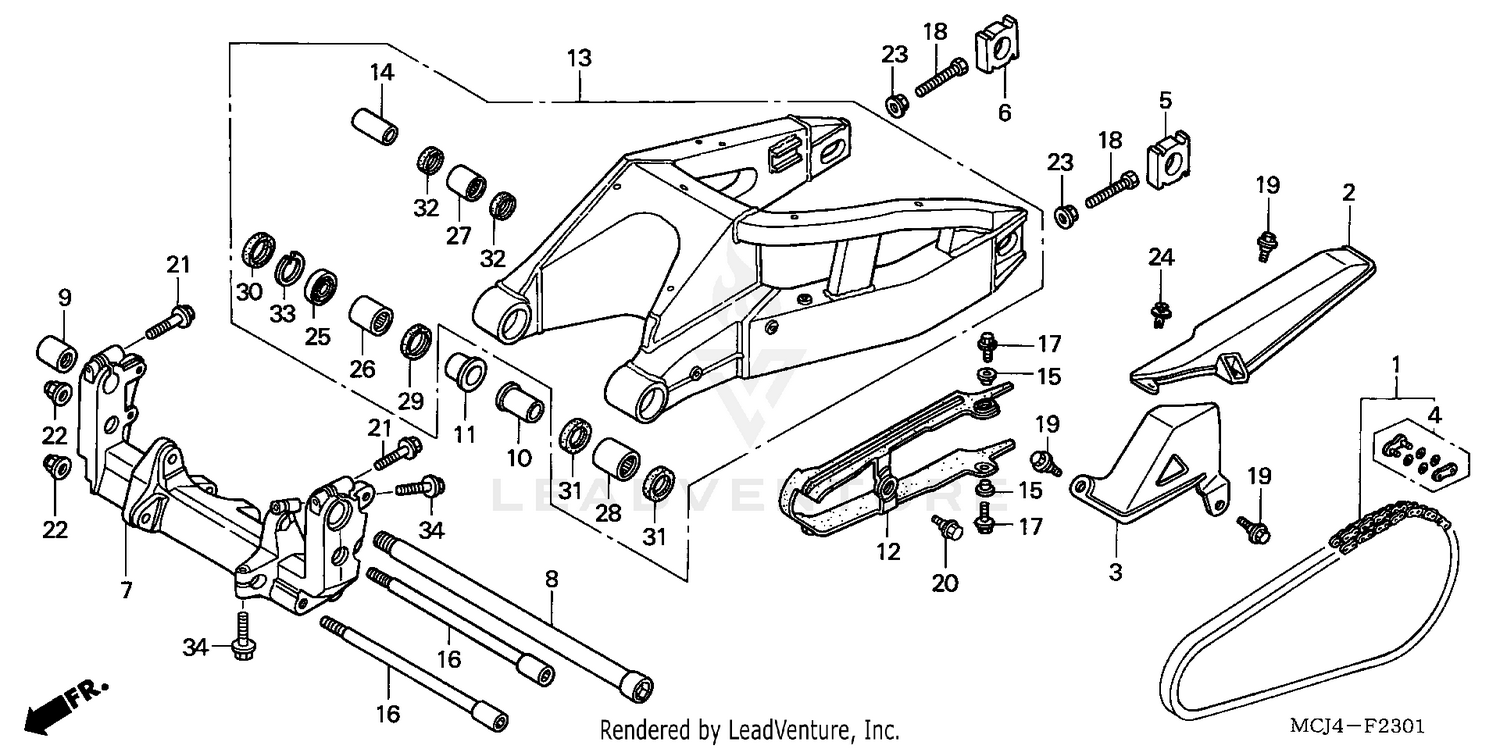

Swingarm (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN SET, DRIVE (DID50 102-120L) (DAIDO) (NOT AVAILABLE)
06405-MCF-P00
|
$210.29 | ||
|
Unavailable |
|||
|
#1
CHAIN SET, DRIVE (RK50 102-120L) (RK EXCEL) (NA USE ALT:40540-MCJ-005)
06405-MCJ-000
|
$210.29 | ||
|
Unavailable |
|||
|
#2
CASE A, DRIVE CHAIN
40510-MCJ-000
|
$82.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
CASE B, DRIVE CHAIN
40520-MCJ-000
|
$43.39 | ||
|
Unavailable |
|||
|
#4
MASTER LINK (DID)
40545-MCF-003
|
$11.13 | ||
|
Unavailable |
|||
|
#4
MASTER LINK (RK EXCEL)
40545-MCJ-005
|
$7.84 | ||
|
Unavailable |
|||
|
#5
COLLAR, L. RR. AXLE
42305-MCJ-000
|
$44.68 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, R. RR. AXLE
42306-MCJ-000
|
$30.94 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, RR. CUSHION (LOWER)
50300-MCJ-750
|
$281.35 | ||
|
Unavailable |
|||
|
#8
BOLT, SWINGARM PIVOT
52101-MCJ-750
|
$60.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, SWINGARM PIVOT
52102-MCJ-000
|
$19.65 | ||
|
Unavailable |
|||
|
#10
COLLAR, L. PIVOT DISTANCE
52143-MCJ-000
|
$20.57 | ||
|
Unavailable |
|||
|
#11
COLLAR, R. PIVOT DISTANCE
52144-MCJ-750
|
$12.14 | ||
|
Unavailable |
|||
|
#12
SLIDER, CHAIN
52170-MCJ-750
|
$70.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
SWINGARM SUB-ASSY.
52200-MCJ-750
|
$1,333.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR, CUSHION CONNECTING ROD
52463-MAL-G00
|
$14.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
81312-GJ5-000
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, SOCKET (10X157)
90104-MCJ-000
|
$16.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X18)
90105-MY9-000
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HEX. (8X50)
90106-MCJ-000
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6MM)
90113-MAS-E00
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, CHAIN SLIDER
90130-MCJ-750
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (8X50)
90166-MCJ-000
|
$2.33 | ||
|
Unavailable |
|||
|
#22
NUT, AXLE (10MM)
90304-GA6-003
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, HEX. (8MM)
90309-357-000
|
$4.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
CLIP, BODY COVER
90683-GR1-003
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BEARING, RADIAL BALL (6905)
91053-MCJ-003
|
$20.33 | ||
|
Available to order. Add to View Price |
|||
|
#26
BEARING, NEEDLE (32X42X20)
91053-MCJ-751
|
$38.89 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING, NEEDLE (KOYO)
91071-KV3-005
|
$30.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BEARING, NEEDLE (32X42X37)
91071-MCJ-003
|
$25.53 | ||
|
Available to order. Add to View Price |
|||
|
#29
DUST SEAL (32X39X5)
91251-MCJ-003
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#30
DUST SEAL (32X45X5)
91252-MCF-003
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#31
DUST SEAL (32X42X6)
91253-MCF-003
|
$8.05 | ||
|
Available to order. Add to View Price |
|||
|
#32
DUST SEAL (17X24X5) (ARAI)
91262-KV3-831
|
$7.78 | ||
|
Available to order. Add to View Price |
|||
|
#33
CIRCLIP (INNER) (45MM)
94520-45000
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE (8X38)
96300-08038-00
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
