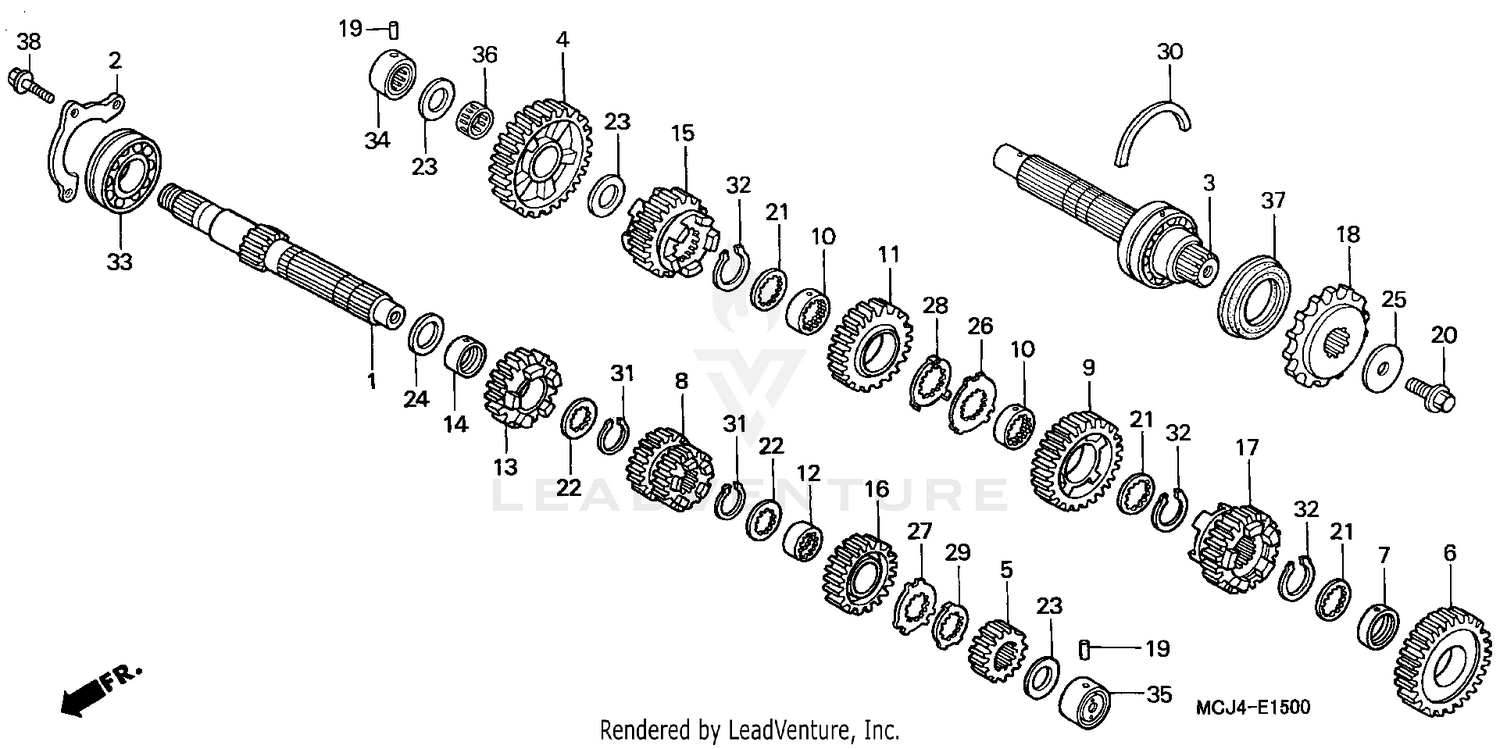

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT (13T)
23211-MCJ-000
|
$172.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, BEARING SETTING
23212-MBW-000
|
$9.65 | ||
|
Unavailable |
|||
|
#3
COUNTERSHAFT
23220-MCJ-000
|
$238.51 | ||
|
Unavailable |
|||
|
#4
GEAR, COUNTERSHAFT FIRST (35T)
23421-MCJ-750
|
$109.20 | ||
|
Unavailable |
|||
|
#5
GEAR, MAINSHAFT SECOND (15T)
23431-MCJ-750
|
$45.11 | ||
|
Unavailable |
|||
|
#6
GEAR, COUNTERSHAFT SECOND (29T)
23441-MCJ-750
|
$115.08 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR (30X9.5)
23442-MCJ-000
|
$14.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, MAINSHAFT THIRD & FOURTH (20T/20T)
23451-MCJ-750
|
$157.13 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, COUNTERSHAFT THIRD (32T)
23461-MCJ-750
|
$129.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, SPLINE (30X9)
23462-MCJ-000
|
$14.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, COUNTERSHAFT FOURTH (28T)
23481-MCJ-750
|
$135.27 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, SPLINE (28X16)
23482-MCJ-000
|
$22.96 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, MAINSHAFT FIFTH (21T)
23491-MCJ-750
|
$88.91 | ||
|
Unavailable |
|||
|
#14
COLLAR (28X13)
23495-MM5-000
|
$26.27 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, COUNTERSHAFT FIFTH (27T)
23501-MCJ-750
|
$119.22 | ||
|
Unavailable |
|||
|
#16
GEAR, MAINSHAFT TOP (21T)
23511-MCJ-000
|
$107.14 | ||
|
Unavailable |
|||
|
#17
GEAR, COUNTERSHAFT TOP (25T)
23521-MCJ-750
|
$143.04 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPROCKET, DRIVE (16T)
23801-MCJ-750
|
$95.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, GEARSHIFT FORK GUIDE
24261-283-000
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, SPECIAL (10MM)
90037-422-003
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPLINE (30X36X1.5)
90452-MAT-000
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPLINE (28X34X1.5)
90452-MR7-000
|
$7.24 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER B, THRUST (22MM) (BLUE)
90455-ML7-000
|
$6.11 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, THRUST (28MM)
90458-729-920
|
$6.11 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER (10.2MM)
90459-438-000
|
$7.33 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPLINE (30MM)
90463-MAT-000
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPLINE (28MM)
90463-MCJ-000
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, LOCK (30MM)
90464-MAT-000
|
$7.67 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, LOCK (28MM)
90464-MCJ-000
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#30
SET-RING (62MM)
90602-ML7-000
|
$10.33 | ||
|
Available to order. Add to View Price |
|||
|
#31
CIRCLIP (28MM)
90602-MM5-000
Superseded by 90603-MN4-000
|
$4.71 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
CIRCLIP (28MM)
90603-MN4-000
|
$4.71 | ||
|
Unavailable |
|||
|
#32
CIRCLIP (30MM)
90604-MM5-000
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#33
BEARING, RADIAL BALL (6305) (NTN)
91001-MT7-003
|
$37.40 | ||
|
Available to order. Add to View Price |
|||
|
#34
BEARING, NEEDLE (22MM) (TOYO)
91022-MM5-003
|
$67.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
BEARING, NEEDLE (22MM)
91023-MM5-641
|
$32.76 | ||
|
Available to order. Add to View Price |
|||
|
#36
BEARING, NEEDLE (22X26X11)
91026-MB4-003
|
$16.55 | ||
|
Available to order. Add to View Price |
|||
|
#37
OIL SEAL (40X62X8.4) (NOK)
91207-MW0-003
|
$18.51 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, FLANGE (6X14)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
