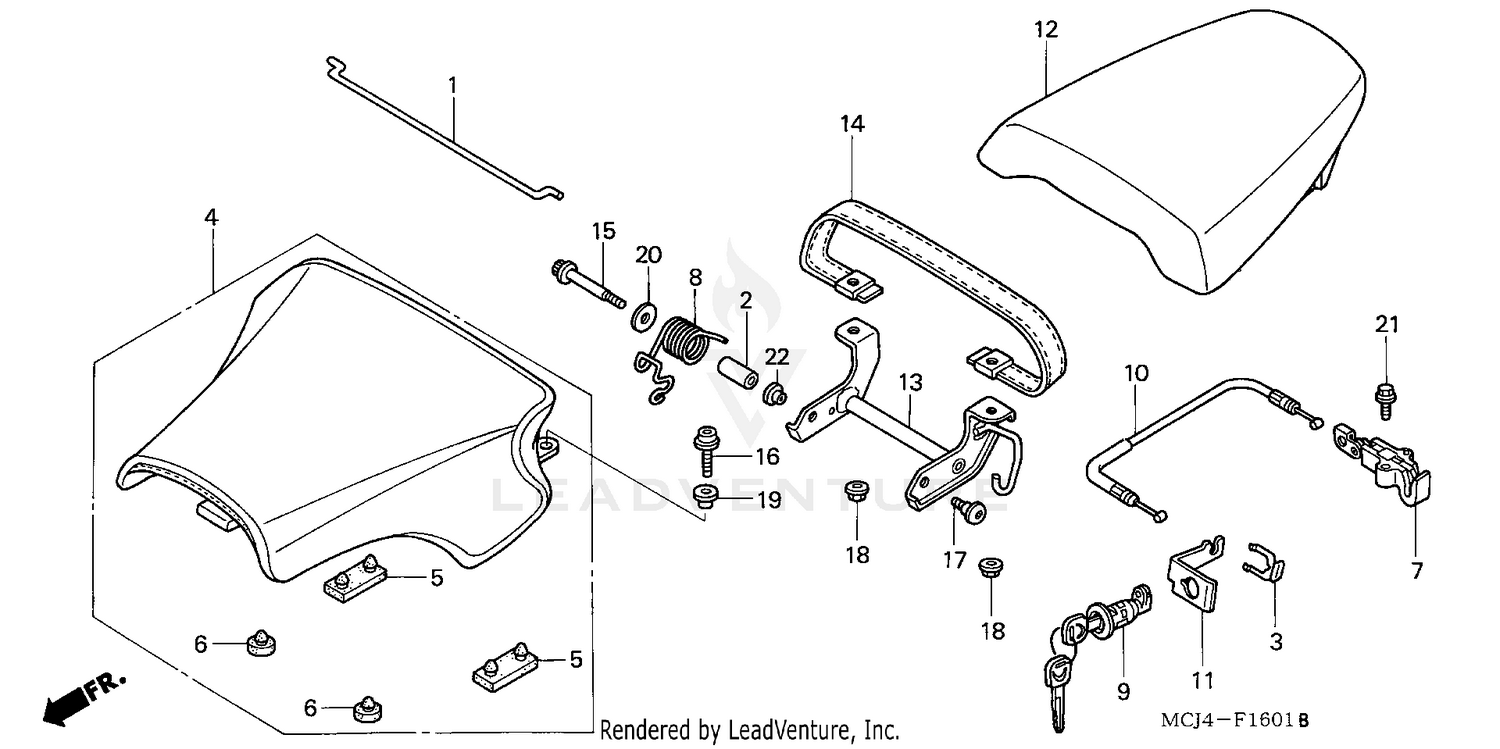

Seat (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ROD, TANK OPEN
17891-MCJ-750
|
$16.98 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR, MUFFLER BAND
18318-HN5-670
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, LOCK KEY SETTING
75581-GN8-920
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAT ASSY., SINGLE
77100-MCJ-750
|
$139.81 | ||
|
Unavailable |
|||
|
#5
RUBBER, SEAT SETTING
77204-312-000
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER B, SEAT STOPPER
77215-GC2-000
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOOK, SEAT CATCH
77220-MCJ-751
Superseded by 77220-MCJ-752
|
$42.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOOK, SEAT CATCH
77220-MCJ-752
|
$42.29 | ||
|
Unavailable |
|||
|
#8
SPRING, PILLION SEAT OPENER
77233-MCJ-750
|
$6.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
KEY, SEAT LOCK
77234-MBL-611
|
$39.42 | ||
|
Available to order. Add to View Price |
|||
|
#10
CABLE, SEAT LOCK
77240-MCJ-750
|
$7.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
STAY, SEAT LOCK CABLE
77242-MCJ-750
|
$5.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAT, PILLION
77300-MCJ-750
|
$183.62 | ||
|
Unavailable |
|||
|
#13
HINGE, SEAT
77301-MCJ-750
|
$27.96 | ||
|
Unavailable |
|||
|
#14
SEAT BELT
77320-MCJ-750
|
$24.44 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE SOCKET (6X45)
90093-MG3-000
|
$5.58 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE SOCKET (6X20)
90097-MY6-880
|
$5.51 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, SPECIAL (6MM)
90106-KCZ-000
|
$6.13 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
NUT, U (6MM)
90301-473-003
|
$5.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
COLLAR, GEARSHIFT LEVER SETTING
90522-170-700
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLAIN (6MM)
94103-06000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X14)
96001-06014-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
COLLAR A, TAILLIGHT
33712-GC2-000
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
