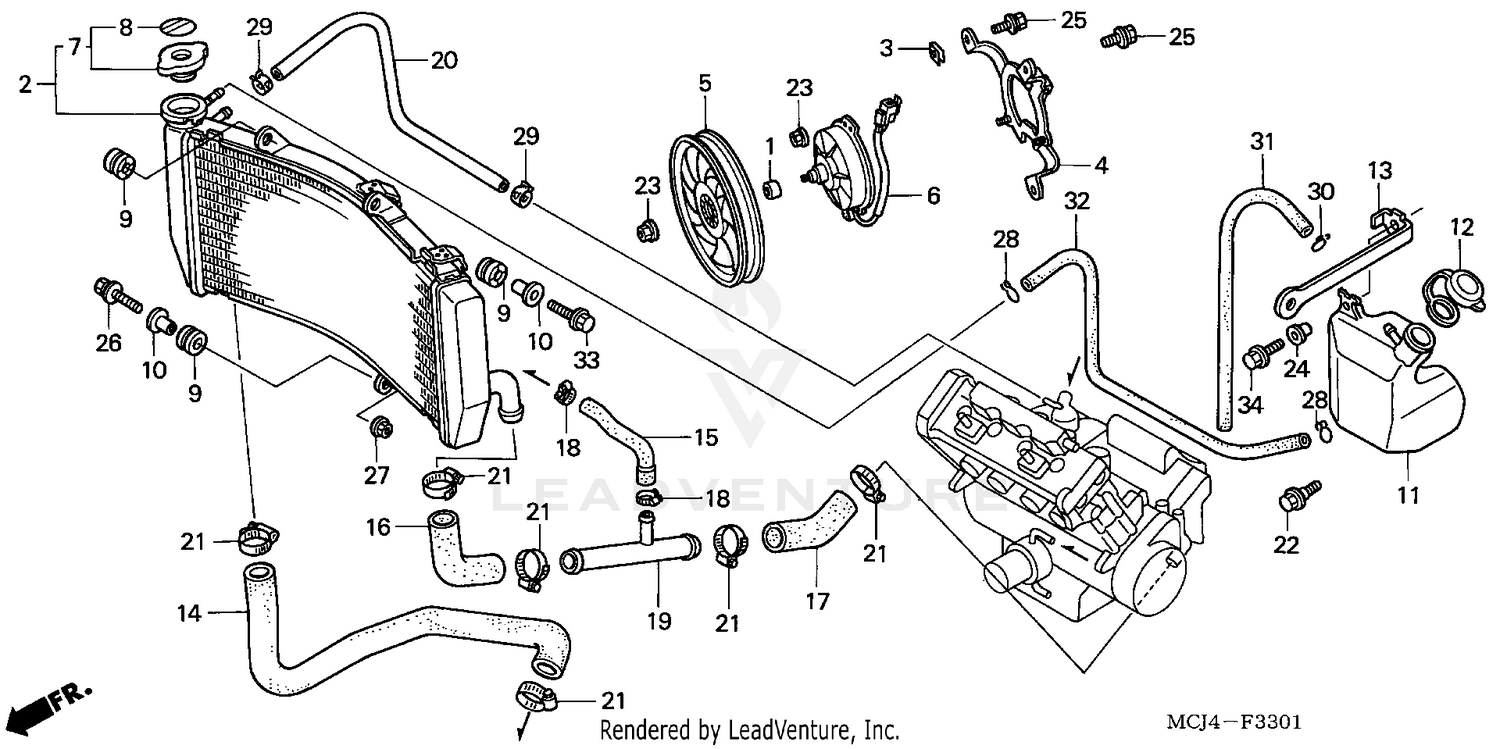

Radiator (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLLAR
19006-MCJ-003
|
$2.94 | ||
|
Unavailable |
|||
|
#2
RADIATOR
19010-MCJ-751
|
$543.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, SETTING (6MM)
19014-KEA-003
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHROUD
19015-MCJ-003
|
$49.78 | ||
|
Available to order. Add to View Price |
|||
|
#5
FAN, COOLING
19020-MCF-003
|
$48.04 | ||
|
Unavailable |
|||
|
#6
MOTOR ASSY., FAN
19030-MCJ-751
|
$218.56 | ||
|
Unavailable |
|||
|
#7
CAP, RADIATOR
19037-GEE-710
|
$36.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
LABEL, RADIATOR CAP
19046-PAA-A00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER, RADIATOR MOUNTING
19051-KA3-830
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, RADIATOR MOUNTING
19052-MAC-680
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
TANK, RADIATOR RESERVE
19101-MCJ-000
|
$60.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, RESERVE TANK
19104-MB0-700
|
$14.73 | ||
|
Available to order. Add to View Price |
|||
|
#13
STAY, RADIATOR
19113-MCJ-000
|
$7.93 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE, RADIATOR (UPPER)
19501-MCJ-750
|
$22.23 | ||
|
Unavailable |
|||
|
#15
HOSE, OIL COOLER
19502-MCJ-750
|
$7.37 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE, L. RADIATOR (UPPER)
19503-MCJ-750
|
$11.84 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE, L. RADIATOR (LOWER)
19504-MCJ-750
|
$7.37 | ||
|
Unavailable |
|||
|
#18
CLAMP A, WATER HOSE
19505-KS6-700
|
$13.25 | ||
|
Available to order. Add to View Price |
|||
|
#19
JOINT, HOSE (THREE-WAY)
19507-MCJ-750
|
$6.36 | ||
|
Unavailable |
|||
|
#20
TUBE, WATER
19511-MCJ-000
|
$20.60 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP, HOSE (30-37MM)
19516-GAG-003
|
$17.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6MM)
90111-162-000
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
NUT, SERRATE (5MM)
90315-MK3-003
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR, GEARSHIFT LEVER SETTING
90522-170-700
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BOLT-WASHER (6X14)
93401-06014-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT-WASHER (6X28)
93404-06028-00
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
CLIP, TUBE (B10)
95002-02100
|
$1.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
CLAMP, TUBE (D12.5)
95002-41250-08
|
$2.65 | ||
|
Unavailable |
|||
|
#30
CLIP, TUBE (C9)
95002-50000
|
$1.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
BULK HOSE, VACUUM (5X3000) (5X520)
95005-50003-30M
|
$25.27 | ||
|
Available to order. Add to View Price |
|||
|
#32
BULK HOSE, VACUUM (5.5X3000) (95005-55001-20M(95005-55001-2
95005-55003-20M
|
$41.32 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE (6X25)
96001-06025-07
|
$1.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
BOLT, FLANGE (6X20)
96300-06020-00
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
