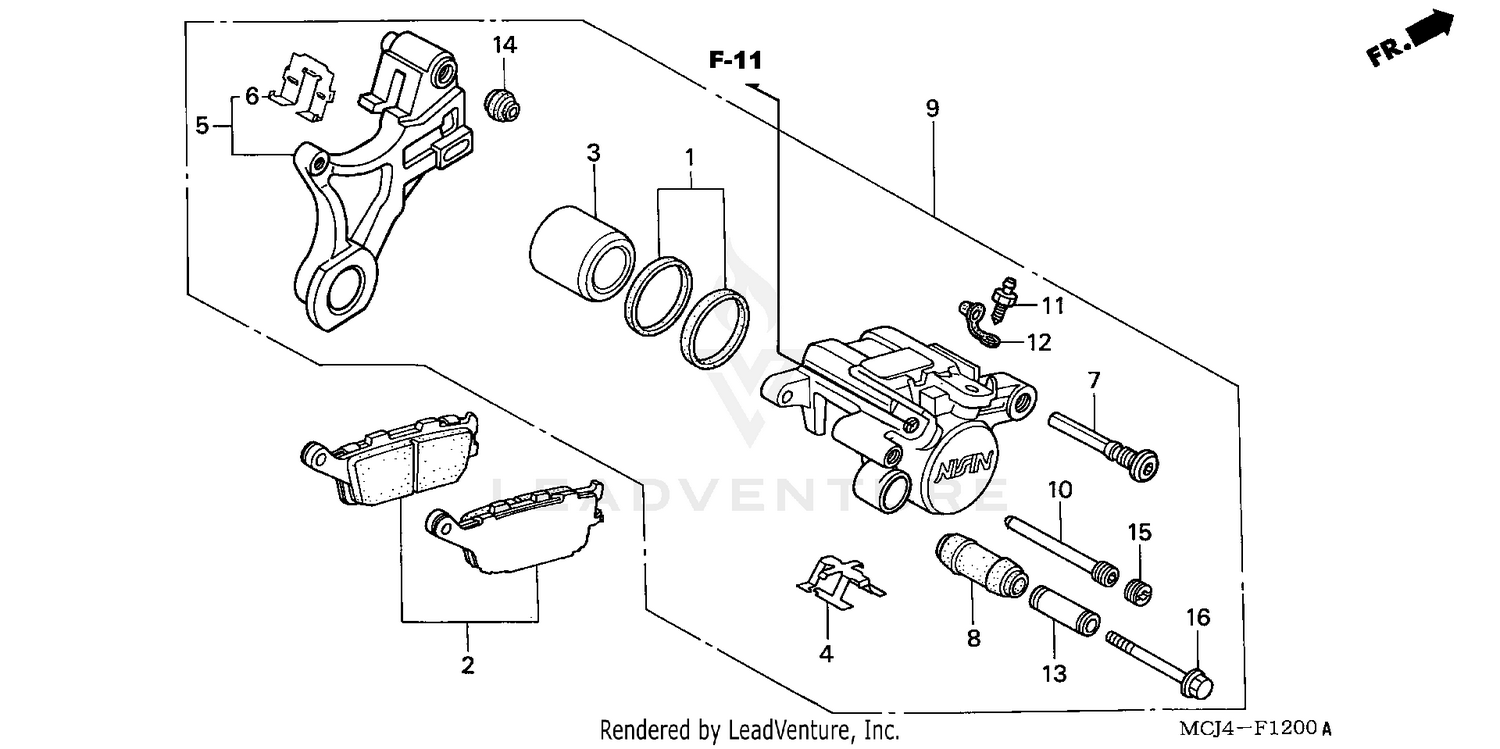

Rear Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAL SET, PISTON
06451-443-405
|
$16.04 | ||
|
Available to order. Add to View Price |
|||
|
#2
PAD SET, RR.
43105-MW0-405
Superseded by 43105-MW0-425
|
$62.88 | ||
|
Available to order. Add to View Price |
|||
|
#2
PAD SET, RR.
43105-MW0-415
Superseded by 43105-MW0-425
|
$62.88 | ||
|
Unavailable |
|||
|
#3
PISTON
43107-MCJ-006
|
$30.56 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, PAD
43108-KT7-761
|
$10.51 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, RR.
43110-MCJ-751
|
$107.75 | ||
|
Unavailable |
|||
|
#6
RETAINER, RR. BRACKET
43112-MCF-006
|
$13.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BOLT, PIN
43131-KW3-006
|
$12.47 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOOT, SLEEVE
43132-KT7-761
|
$10.33 | ||
|
Available to order. Add to View Price |
|||
|
#9
CALIPER SUB-ASSY., RR.
43150-MCJ-751
|
$257.13 | ||
|
Unavailable |
|||
|
#10
PIN, HANGER
43215-ML3-911
|
$14.16 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, BLEEDER (NISSIN)
43352-568-003
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, BLEEDER
43353-461-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
SLEEVE
45111-MA3-006
|
$16.22 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOOT B
45133-MA3-006
|
$6.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
PLUG, PIN
45203-MG3-016
|
$6.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, FLANGE (8X49)
90180-MN8-006
|
$7.62 | ||
|
Available to order. Add to View Price |
|||
