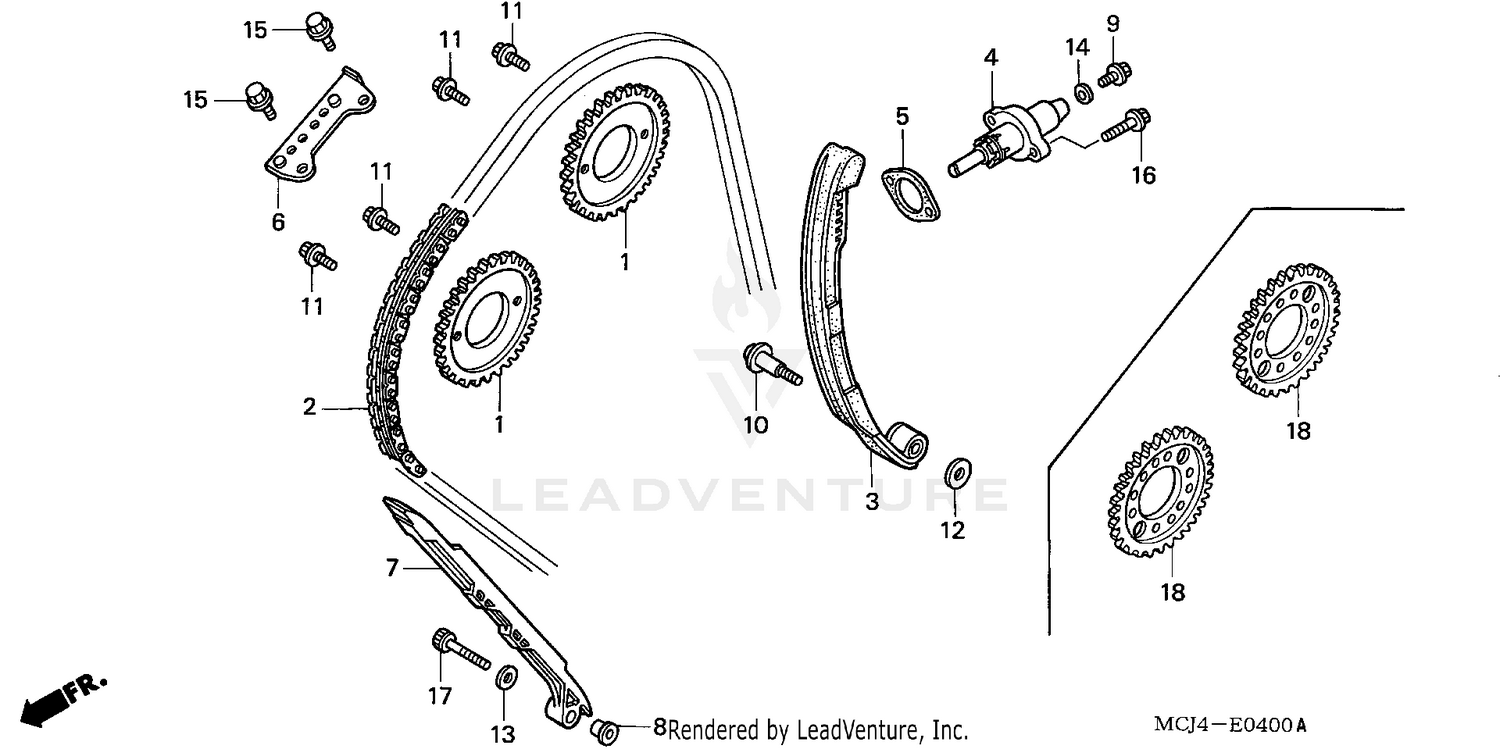

Cam Chain + Tensioner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
CHAIN, CAM (124L) (BORG WARNER)
14401-MCJ-003
|
$140.00 | ||
|
Available to order. Add to View Price |
|||
|
#3
TENSIONER, CAM CHAIN
14510-MCJ-000
|
$111.61 | ||
|
Available to order. Add to View Price |
|||
|
#4
LIFTER, TENSIONER
14520-MCJ-751
Superseded by 14520-MCJ-752
|
$124.96 | ||
|
Available to order. Add to View Price |
|||
|
#4
LIFTER, TENSIONER
14520-MCJ-752
|
$124.96 | ||
|
Unavailable |
|||
|
#5
GASKET, TENSIONER LIFTER
14523-MCJ-000
|
$6.93 | ||
|
Available to order. Add to View Price |
|||
|
#6
GUIDE B, CAM CHAIN
14546-MCJ-000
|
$55.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
GUIDE A, CAM CHAIN (NOK)
14620-MW0-003
|
$111.16 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR (6MM)
14626-MCJ-000
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X10) (NSHF)
90004-GHB-600
|
$3.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
PIVOT, CAM CHAIN TENSIONER
90022-MBW-000
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE KNOCK (7X10.5)
90082-HA0-000
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER (6MM)
90401-MBW-000
|
$4.53 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER (6MM)
90408-KW1-900
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SEALING (6MM)
90442-397-000
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X14)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X22)
96001-06022-00
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, SOCKET (6X32)
96700-06032-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPROCKET, CAM (34T)
14321-MCJ-750
|
$73.43 | ||
|
Available to order. Add to View Price |
|||
