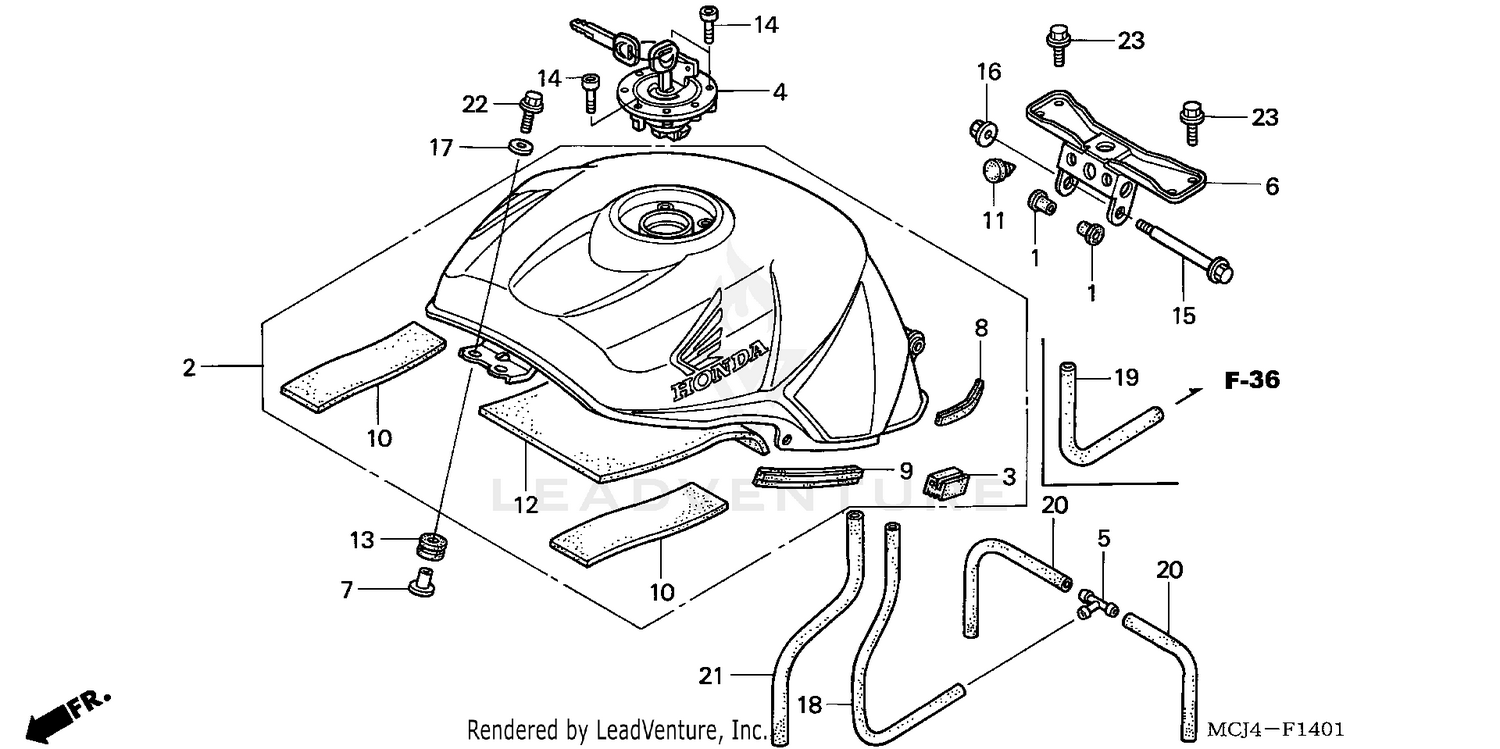

Fuel Tank (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CUSHION, FUEL TANK PIVOT
17506-MB1-000
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#2
TANK SET, FUEL (TYPE1) (WL)
17520-MCJ-D10ZA
|
$948.27 | ||
|
Unavailable |
|||
|
#2
TANK SET, FUEL (TYPE4) (WL)
17520-MCJ-D10ZB
|
$988.10 | ||
|
Unavailable |
|||
|
#3
CUSHION, FUEL TANK SIDE
17611-MCJ-750
|
$8.30 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, FUEL FILLER
17620-MCJ-751
Superseded by 17620-MCJ-753
|
$222.96 | ||
|
Unavailable |
|||
|
#5
JOINT, AIR FILTER
36191-KV3-700
|
$16.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
STAY, RR. FUEL TANK
50255-MCJ-750
|
$26.72 | ||
|
Unavailable |
|||
|
#7
COLLAR, SETTING
61104-422-000
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER, PROTECTOR
64121-MCJ-750
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER, FUEL TANK SIDE
64122-MCJ-750
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
MAT C, COWL (LOWER)
64253-MR8-300
|
$14.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER B, SEAT STOPPER
77215-GC2-000
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
MAT A, SHELTER
83151-MAJ-G00
|
$11.47 | ||
|
Unavailable |
|||
|
#13
RUBBER, TAILLIGHT MOUNTING
84703-425-000
|
$5.93 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, SOCKET (4X21)
90074-MT4-000
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, TANK HINGE
90135-MM4-000
|
$8.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, U (6MM)
90301-473-003
|
$5.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER, PLAIN (6MM)
90525-428-900
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#18
BULK HOSE, VACUUM (3.5X1000) (3.5X320)
95005-35001-20M
|
$11.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BULK HOSE, VACUUM (4.5X1000) (4.5X500)
95005-45001-20M
|
$40.16 | ||
|
Available to order. Add to View Price |
|||
|
#21
BULK HOSE, VACUUM (8X1000) (8X640)
95005-80001-50M
|
$19.70 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X28)
96001-06028-07
|
$1.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X16)
96300-06016-00
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X16)
96500-06016-00
Superseded by 96300-06016-00
|
$1.07 | ||
|
Unavailable |
|||
