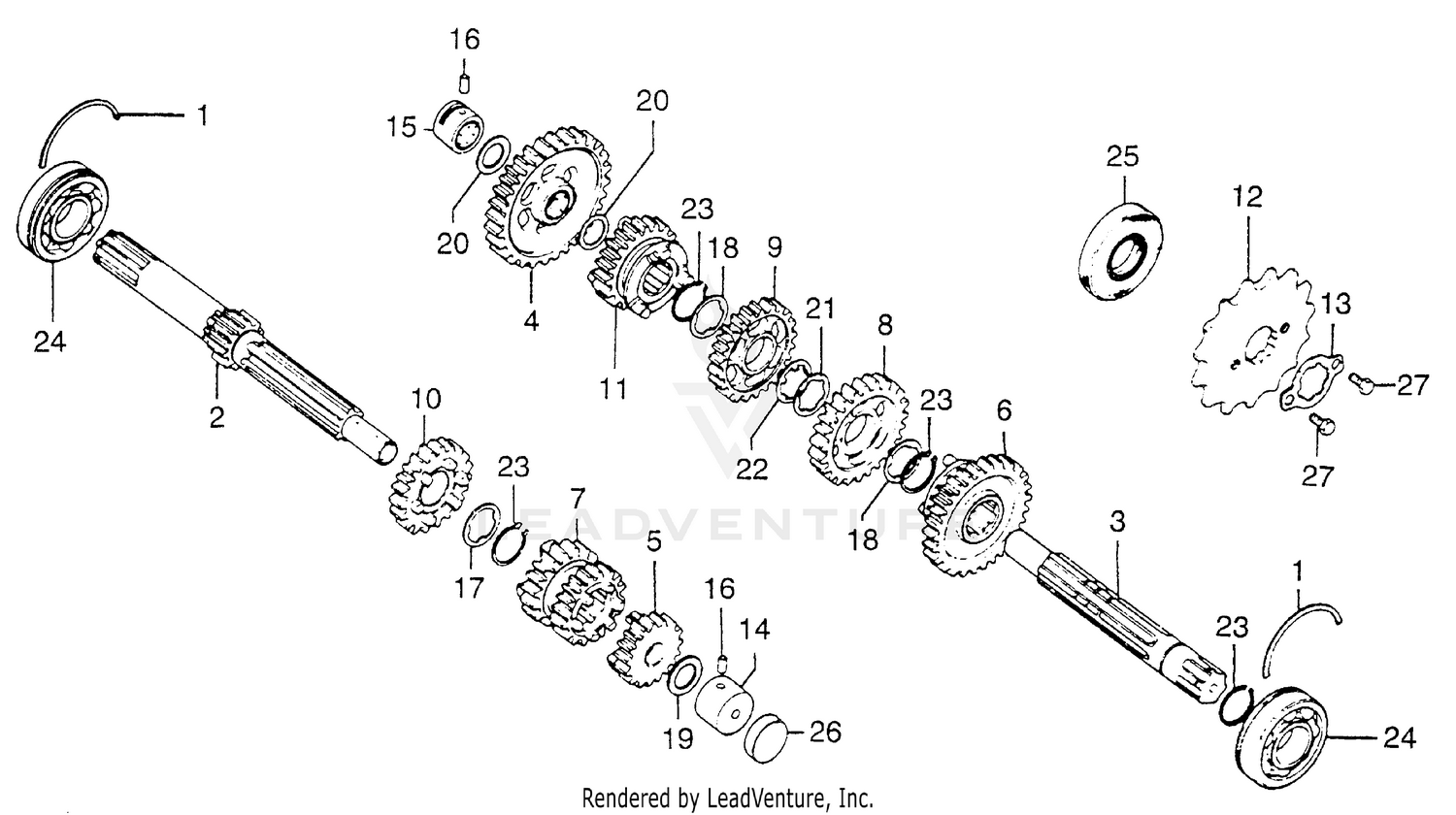

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RING A, BALL BEARING SET (NOT AVAILABLE)
13491-200-010
Superseded by 13495-200-010
|
$5.33 | ||
|
Unavailable |
|||
|
#1
RING A, BALL BEARING SET (NOT AVAILABLE)
13495-200-010
|
$5.33 | ||
|
Unavailable |
|||
|
#2
MAINSHAFT, TRANSMISSION (13T)
23211-354-300
|
$157.28 | ||
|
Available to order. Add to View Price |
|||
|
#3
COUNTERSHAFT, TRANSMISSION
23221-354-300
|
$141.52 | ||
|
Unavailable |
|||
|
#4
GEAR, COUNTERSHAFT FIRST (36T)
23420-362-000
|
$62.33 | ||
|
Unavailable |
|||
|
#5
GEAR, MAINSHAFT SECOND (17T) (NOT AVAILABLE)
23430-235-000
|
$117.67 | ||
|
Unavailable |
|||
|
#6
GEAR, COUNTERSHAFT SECOND (36T)
23441-362-000
|
$70.70 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, MAINSHAFT SHIFTING (20T 30T) (NOT AVAILABLE)
23451-235-000
|
$95.49 | ||
|
Unavailable |
|||
|
#8
GEAR, COUNTERSHAFT THIRD (29T) (NOT AVAILABLE)
23461-354-000
|
$57.22 | ||
|
Unavailable |
|||
|
#9
GEAR, COUNTERSHAFT FOURTH (27T) (NOT AVAILABLE)
23471-354-000
|
$57.22 | ||
|
Unavailable |
|||
|
#10
GEAR, MAINSHAFT FIFTH (25T) (NOT AVAILABLE)
23481-235-000
|
$51.43 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, COUNTERSHAFT FIFTH (24T)
23491-354-000
|
$140.80 | ||
|
Unavailable |
|||
|
#12
SPROCKET, DRIVE (15T) (NOT AVAILABLE)
23801-354-000
Superseded by 23803-357-810
|
$26.72 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPROCKET, DRIVE (15T) (NOT AVAILABLE)
23803-357-810
|
$26.72 | ||
|
Unavailable |
|||
|
#12
SPROCKET, DRIVE (15T) (NOT AVAILABLE)
23803-358-000
Superseded by 23803-357-810
|
$26.72 | ||
|
Unavailable |
|||
|
#13
PLATE B, FIXING
23811-028-000
Superseded by 95014-92100
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE B, FIXING
95014-92100
|
$1.16 | ||
|
Unavailable |
|||
|
#14
BUSH A, BEARING (15MM) (NOT AVAILABLE)
23931-354-000
|
$22.42 | ||
|
Unavailable |
|||
|
#15
BUSH, BEARING (16MM) (NOT AVAILABLE)
23932-354-000
|
$22.42 | ||
|
Unavailable |
|||
|
#16
PIN, GEARSHIFT FORK GUIDE
24261-283-000
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER A, THRUST (20MM) (NOT AVAILABLE)
90451-230-000
|
$2.46 | ||
|
Unavailable |
|||
|
#18
WASHER A, THRUST (20MM) (NOT AVAILABLE)
90451-246-000
|
$2.46 | ||
|
Unavailable |
|||
|
#19
WASHER, THRUST (15MM)
90412-187-000
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
WASHER, THRUST (15MM)
90451-354-000
Superseded by 90412-187-000
|
$2.45 | ||
|
Unavailable |
|||
|
#20
WASHER, THRUST (16MM)
90453-235-000
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER B, THRUST (20MM) (NOT AVAILABLE)
90461-235-000
|
$2.85 | ||
|
Unavailable |
|||
|
#22
WASHER, LOCK (20MM) (NOT AVAILABLE)
90462-235-000
|
$2.83 | ||
|
Unavailable |
|||
|
#23
SET-RING (20MM)
90605-200-000
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING, BALL (6304HS)
91003-235-000
|
$30.06 | ||
|
Unavailable |
|||
|
#25
OIL SEAL (20X52X9) (NOT AVAILABLE)
91201-216-005
|
$5.15 | ||
|
Available to order. Add to View Price |
|||
|
#26
CAP, OIL (NOT AVAILABLE)
91207-354-003
Superseded by 91204-KV0-000
|
$5.78 | ||
|
Unavailable |
|||
|
#27
BOLT, HEX. (6X10)
92000-06010
Superseded by 92101-06010-0A
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, HEX. (6X10)
92101-06010-0A
|
$1.47 | ||
|
Unavailable |
|||
