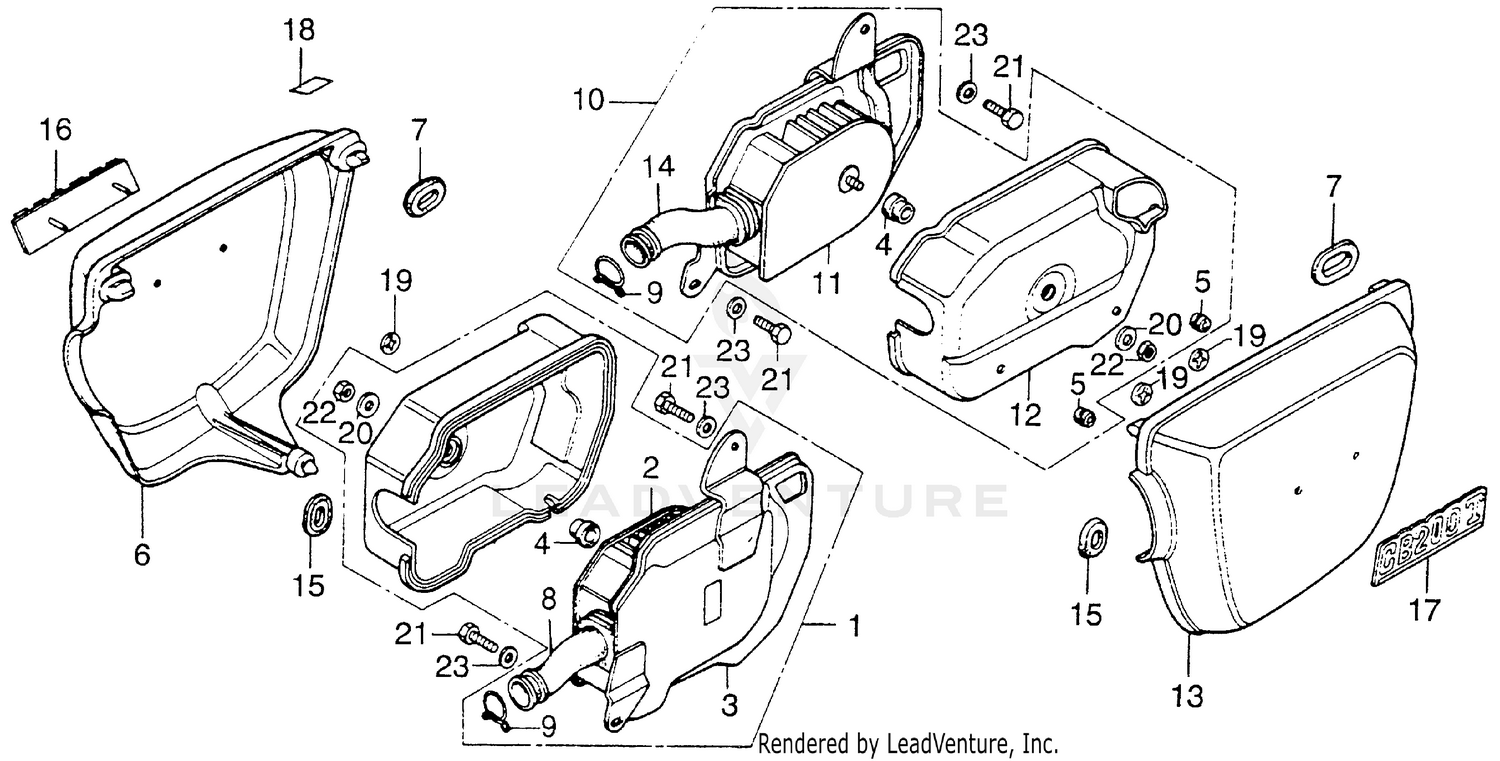

Air Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AIR CLEANER ASSY., R. (NOT AVAILABLE)
17200-354-005
|
$156.59 | ||
|
Unavailable |
|||
|
#2
ELEMENT, R. AIR CLEANER (NOT AVAILABLE)
17210-351-005
|
$41.46 | ||
|
Unavailable |
|||
|
#3
CASE, L. AIR CLEANER (NOT AVAILABLE)
17214-351-000
|
$43.21 | ||
|
Unavailable |
|||
|
#4
RUBBER, AIR CLEANER HOUSING (NOT AVAILABLE)
17215-336-000
|
$3.56 | ||
|
Unavailable |
|||
|
#5
STOPPER, ELEMENT CASE (NOT AVAILABLE)
17216-316-000
|
$4.59 | ||
|
Unavailable |
|||
|
#6
COVER, R. AIR CLEANER *NH43* (PHANTOM BLACK) (NOT AVAILABLE)
17231-354-000NR
|
$47.48 | ||
|
Available to order. Add to View Price |
|||
|
#7
GROMMET A, AIR CLEANER HOUSING
17247-303-000
|
$10.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
TUBE, R. AIR CLEANER CONNECTING (NOT AVAILABLE)
17253-354-000
|
$52.92 | ||
|
Unavailable |
|||
|
#9
CLIP, AIR CLEANER CONNECTING TUBE (NOT AVAILABLE)
17255-315-670
|
$5.01 | ||
|
Unavailable |
|||
|
#10
AIR CLEANER ASSY., L. (NOT AVAILABLE)
17300-354-005
|
$149.48 | ||
|
Unavailable |
|||
|
#11
ELEMENT, L. AIR CLEANER (NOT AVAILABLE)
17310-351-005
|
$43.68 | ||
|
Unavailable |
|||
|
#12
CASE, L. AIR CLEANER (NOT AVAILABLE)
17314-351-000
|
$39.61 | ||
|
Unavailable |
|||
|
#13
COVER, L. AIR CLEANER *NH43* (PHANTOM BLACK) (NOT AVAILABLE)
17331-354-000NR
|
$47.48 | ||
|
Available to order. Add to View Price |
|||
|
#14
TUBE, L. AIR CLEANER CONNECTING (NOT AVAILABLE)
17353-354-000
|
$52.92 | ||
|
Unavailable |
|||
|
#15
GROMMET, AIR CLEANER HOUSING
83551-300-000
|
$4.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
EMBLEM, R. SIDE COVER (NOT AVAILABLE)
87125-389-670
|
$76.96 | ||
|
Unavailable |
|||
|
#17
EMBLEM, L. SIDE COVER
87126-389-670
|
$77.01 | ||
|
Unavailable |
|||
|
#18
LABEL, HELMET HOLDER
87511-323-670
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, SPEED (3MM)
90313-512-000
Superseded by 90313-567-000
|
$4.98 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, SPEED (3MM)
90313-567-000
|
$4.98 | ||
|
Unavailable |
|||
|
#20
WASHER B, HANDLE HOLDER SETTING
90525-030-000
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, HEX. (6X12)
92000-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, HEX. (6X12)
92101-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#21
BOLT, HEX. (6X12)
92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#22
NUT, HEX. (6MM)
90310-KA3-711
Superseded by 94001-06200-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
NUT, HEX. (6MM)
94000-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#22
NUT, HEX. (6MM)
94001-06000
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#22
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#22
NUT, HEX. (6MM)
94001-06008-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#22
NUT, HEX. (6MM)
94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#22
NUT, HEX. (6MM)
94030-06000
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#23
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#23
WASHER, PLAIN (6MM)
94101-06800
|
$0.68 | ||
|
Unavailable |
|||
