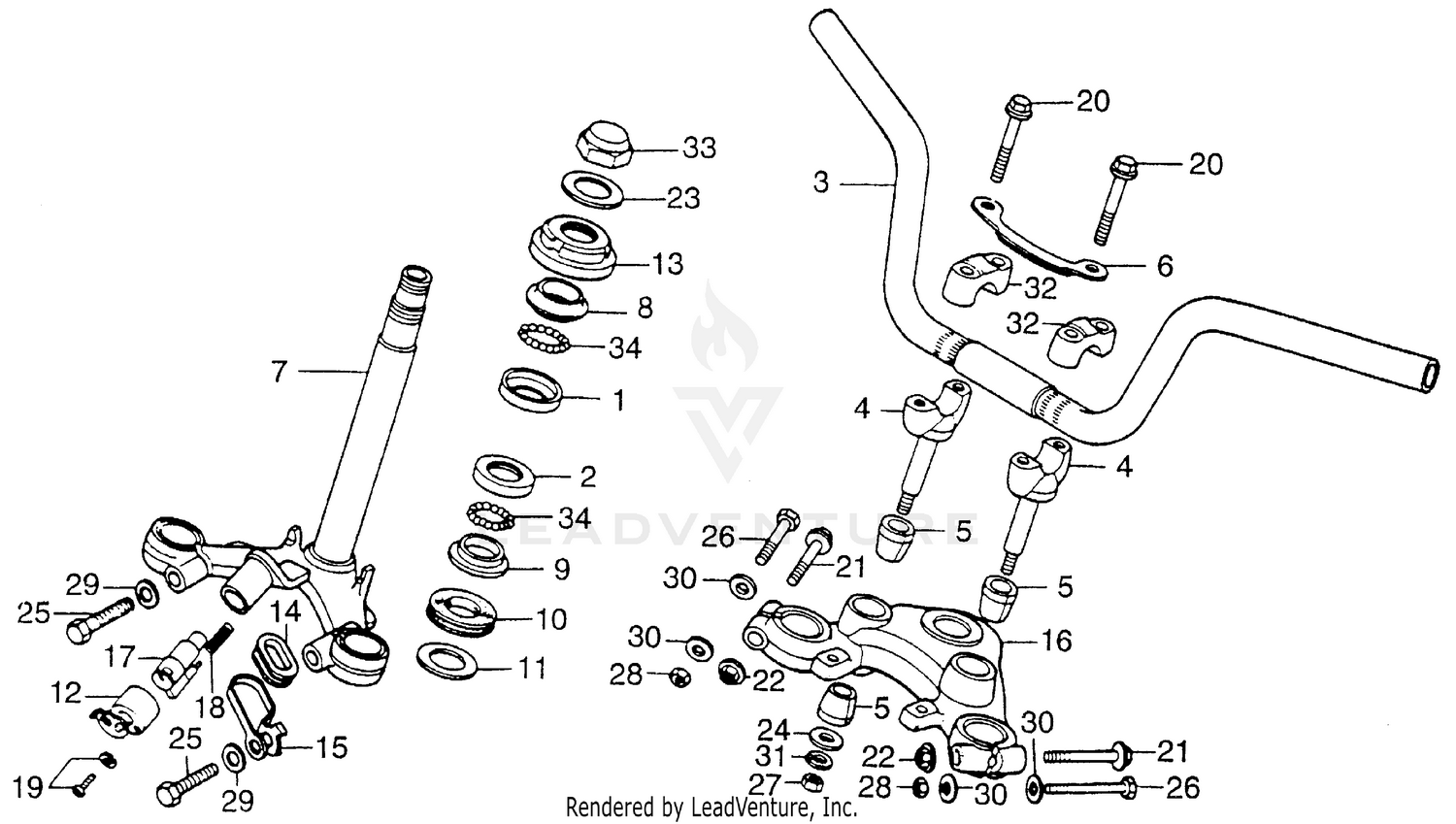

Handlebar + Steering Stem Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RACE, STEERING TOP BALL
50301-200-315
Superseded by 50301-268-010
|
$26.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1
RACE, STEERING TOP BALL
50301-268-000
Superseded by 50301-268-010
|
$26.02 | ||
|
Unavailable |
|||
|
#1
RACE, STEERING BALL (UPPER)
50301-268-010
|
$26.02 | ||
|
Unavailable |
|||
|
#1
RACE, STEERING TOP BALL
50301-268-305
Superseded by 50301-268-010
|
$26.02 | ||
|
Unavailable |
|||
|
#1
RACE, STEERING TOP BALL
50302-200-000
Superseded by 50301-268-010
|
$26.02 | ||
|
Unavailable |
|||
|
#1
RACE, STEERING TOP BALL
50302-200-305
Superseded by 50301-268-010
|
$26.02 | ||
|
Unavailable |
|||
|
#2
RACE, STEERING TOP BALL
50301-268-000
Superseded by 50301-268-010
|
$26.02 | ||
|
Unavailable |
|||
|
#2
RACE, STEERING BALL (UPPER)
50301-268-010
|
$26.02 | ||
|
Unavailable |
|||
|
#2
RACE, STEERING TOP BALL
50301-268-305
Superseded by 50301-268-010
|
$26.02 | ||
|
Unavailable |
|||
|
#3
HANDLEBAR (NOT AVAILABLE)
53110-453-000
|
$97.23 | ||
|
Unavailable |
|||
|
#4
HOLDER C2, HANDLEBAR
53132-316-670
Superseded by 95014-33200
|
$14.38 | ||
|
Unavailable |
|||
|
#4
HOLDER C2, HANDLEBAR
95014-33200
|
$14.38 | ||
|
Unavailable |
|||
|
#5
RUBBER, HANDLEBAR CUSHION
53133-303-000
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOLDER, CABLE (NOT AVAILABLE)
53139-286-000
|
$16.16 | ||
|
Unavailable |
|||
|
#7
STEM, STEERING *NH1* (BLACK)
53200-338-000B
|
$290.76 | ||
|
Unavailable |
|||
|
#8
RACE, STEERING CONE (UPPER) (NOT AVAILABLE)
53211-200-305
|
$13.91 | ||
|
Unavailable |
|||
|
#9
RACE, STEERING CONE (LOWER)
53212-200-305
|
$23.98 | ||
|
Available to order. Add to View Price |
|||
|
#10
DUST SEAL, STEERING HEAD
53214-200-000
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, STEERING HEAD DUST SEAL
53215-200-000
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, HANDLEBAR LOCK CASE (NOT AVAILABLE)
53215-317-000
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#13
THREAD, STEERING HEAD TOP
53220-303-000
|
$14.17 | ||
|
Unavailable |
|||
|
#14
GUIDE, CABLE (INNER) (NOT AVAILABLE)
53225-333-000
|
$6.27 | ||
|
Unavailable |
|||
|
#15
BRACKET, CABLE GUIDE (NOT AVAILABLE)
53226-333-000
|
$4.36 | ||
|
Unavailable |
|||
|
#16
BRIDGE, FORK TOP (NOT AVAILABLE)
53231-453-010
|
$87.50 | ||
|
Unavailable |
|||
|
#16
BRIDGE, FORK TOP (NOT AVAILABLE)
53251-453-010
Superseded by 53231-453-010
|
$87.50 | ||
|
Unavailable |
|||
|
#17
LOCK, HANDLEBAR
35010-230-010
|
$97.84 | ||
|
Unavailable |
|||
|
#17
LOCK, HANDLEBAR
53600-230-000
Superseded by 35010-230-010
|
$97.84 | ||
|
Unavailable |
|||
|
#17
LOCK, HANDLEBAR
53600-230-004
Superseded by 35010-230-010
|
$97.84 | ||
|
Unavailable |
|||
|
#18
SPRING, HANDLEBAR LOCK (NOT AVAILABLE)
53631-268-020
|
$2.16 | ||
|
Unavailable |
|||
|
#19
SCREW-WASHER (3X8) (NOT AVAILABLE)
90109-342-000
|
$3.08 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (8X36)
90111-362-000
|
$6.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, FLANGE (7X54)
90155-369-000
|
$7.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, FLANGE (7MM)
90355-369-000
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, STEERING STEM (NOT AVAILABLE)
90503-222-000
|
$3.08 | ||
|
Unavailable |
|||
|
#24
WASHER A, HANDLE HOLDER SETTING
90524-030-000
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, HEX. (8X32)
92000-08032-0A
Superseded by 92101-08032-0B
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, HEX. (8X32)
92000-08032-0B
Superseded by 92101-08032-0B
|
$2.50 | ||
|
Unavailable |
|||
|
#25
BOLT, HEX. (8X32)
92101-08032-0B
|
$2.50 | ||
|
Unavailable |
|||
|
#27
NUT, HEX. (8MM)
94001-08000-0S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLAIN (8MM)
94102-08000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
WASHER, SPRING (8MM)
94111-08000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
HOLDER B2, HANDLEBAR (UPPER)
95014-22200
|
$14.71 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT A2, STEERING STEM (NOT AVAILABLE)
95020-11200
|
$6.41 | ||
|
Unavailable |
|||
|
#34
BALL, STEEL (#8) (1/4)
96211-08000
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
