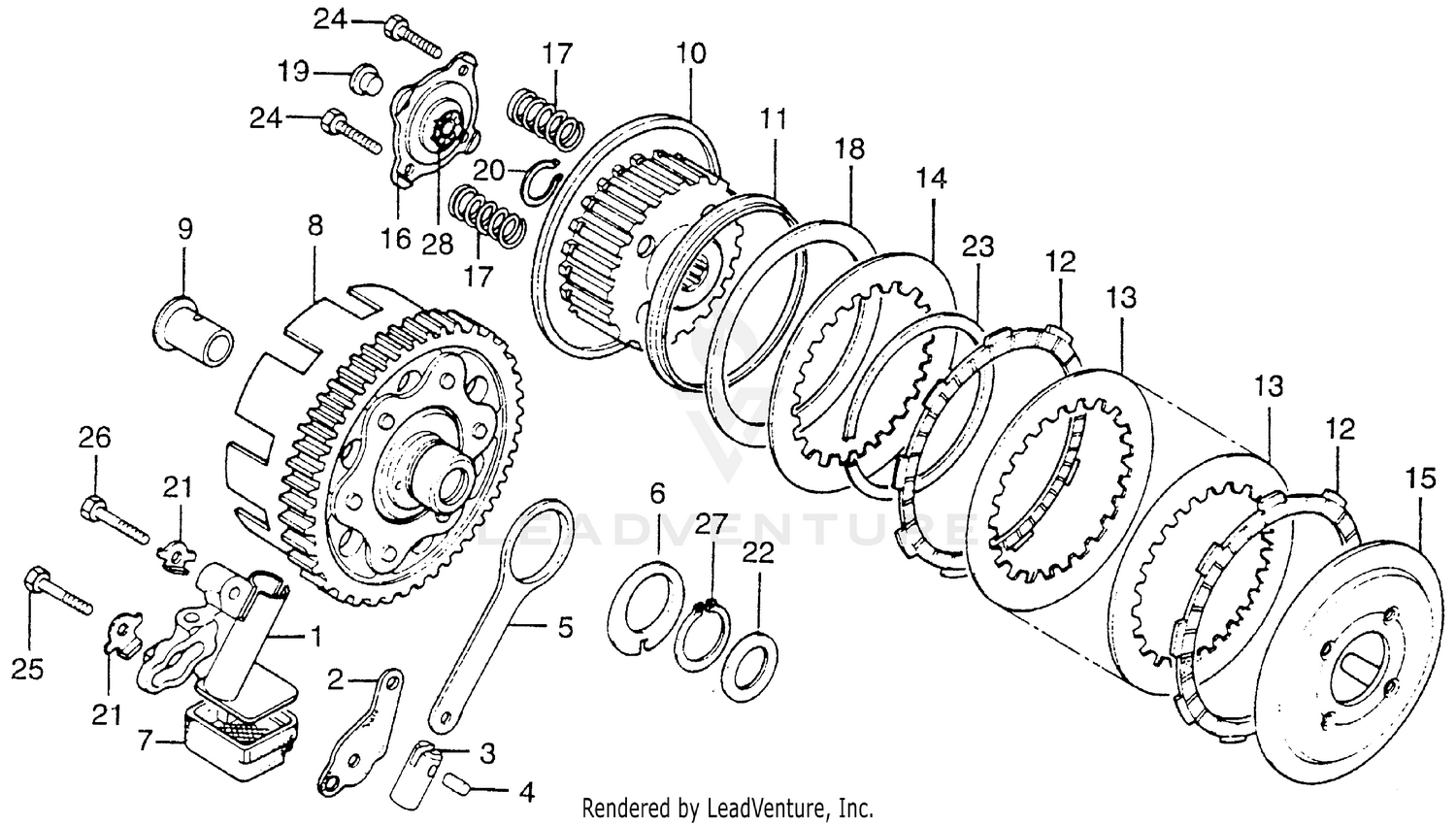

Clutch + Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP, OIL
15210-354-010
|
$49.45 | ||
|
Unavailable |
|||
|
#2
GASKET PUMP, BODY (NOT AVAILABLE)
15219-302-000
|
$3.79 | ||
|
Unavailable |
|||
|
#3
PLUNGER, OIL PUMP (NOT AVAILABLE)
15231-354-000
|
$14.27 | ||
|
Unavailable |
|||
|
#4
PIN, OIL PUMP PLUNGER (NOT AVAILABLE)
15235-354-000
|
$6.99 | ||
|
Unavailable |
|||
|
#5
ROD, OIL PUMP
15281-354-000
|
$31.87 | ||
|
Unavailable |
|||
|
#6
WASHER, OIL PUMP ROD SIDE
15292-354-000
|
$4.84 | ||
|
Unavailable |
|||
|
#7
SCREEN, PUMP FILTER (NOT AVAILABLE)
15334-354-010
Superseded by 15334-302-000
|
$10.86 | ||
|
Unavailable |
|||
|
#8
CLUTCH (OUTER) (NOT AVAILABLE)
22100-354-000
|
$423.97 | ||
|
Unavailable |
|||
|
#9
COLLAR (20MM)
22116-354-000
|
$43.39 | ||
|
Unavailable |
|||
|
#10
CENTER, CLUTCH
22120-354-000
|
$57.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAT, DISK SPRING
22125-333-000
|
$5.29 | ||
|
Unavailable |
|||
|
#12
DISK B, CLUTCH FRICTION
22201-302-000
Superseded by 22202-ML4-611
|
$21.96 | ||
|
Available to order. Add to View Price |
|||
|
#12
DISK B, CLUTCH FRICTION
22202-ML4-610
Superseded by 22202-ML4-611
|
$21.96 | ||
|
Unavailable |
|||
|
#12
DISK B, CLUTCH FRICTION
22202-ML4-611
|
$21.96 | ||
|
Unavailable |
|||
|
#13
PLATE A, CLUTCH
22311-200-000
Superseded by 23311-200-000
|
$14.82 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE A, CLUTCH
23311-200-000
|
$14.82 | ||
|
Unavailable |
|||
|
#14
PLATE B, CLUTCH
22321-333-010
|
$12.85 | ||
|
Unavailable |
|||
|
#15
PLATE, CLUTCH PRESSURE (NOT AVAILABLE)
22350-354-000
|
$63.79 | ||
|
Unavailable |
|||
|
#16
PLATE, CLUTCH LIFTER (NOT AVAILABLE)
22361-354-000
|
$20.76 | ||
|
Unavailable |
|||
|
#17
SPRING, CLUTCH
22401-362-000
|
$6.00 | ||
|
Unavailable |
|||
|
#18
SPRING, CLUTCH (NOT AVAILABLE)
22402-354-005
|
$48.41 | ||
|
Unavailable |
|||
|
#19
PIECE, CLUTCH LIFTER (NOT AVAILABLE)
22846-354-000
|
$21.20 | ||
|
Unavailable |
|||
|
#20
RING A SET (20MM) (NOT AVAILABLE)
22903-200-000
|
$2.72 | ||
|
Unavailable |
|||
|
#21
WASHER, SPRING (6MM) (NOT AVAILABLE)
90433-283-000
|
$2.86 | ||
|
Unavailable |
|||
|
#22
WASHER, THRUST (20MM)
90455-701-000
|
$2.49 | ||
|
Unavailable |
|||
|
#23
SET-RING, SPECIAL (92MM) (NOT AVAILABLE)
90609-333-000
|
$17.93 | ||
|
Unavailable |
|||
|
#24
BOLT, HEX. (6X20)
92000-06020
Superseded by 92101-06020-0A
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, HEX. (6X20)
92101-06020-0A
|
$1.08 | ||
|
Unavailable |
|||
|
#25
BOLT, HEX. (6X28)
92000-06028
Superseded by 92101-06028-0A
|
$1.33 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, HEX. (6X28)
92000-06028-0A
Superseded by 92101-06028-0A
|
$1.33 | ||
|
Unavailable |
|||
|
#25
BOLT, HEX. (6X28)
92000-06028-05
Superseded by 92101-06028-0A
|
$1.33 | ||
|
Unavailable |
|||
|
#25
BOLT, HEX. (6X28)
92100-06028
Superseded by 92101-06028-0A
|
$1.33 | ||
|
Unavailable |
|||
|
#25
BOLT, HEX. (6X28)
92101-06028-0A
|
$1.33 | ||
|
Unavailable |
|||
|
#26
BOLT, HEX. (6X32)
92000-06032
Superseded by 92101-06032-0A
|
$1.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BOLT, HEX. (6X32)
92000-06032-0A
Superseded by 92101-06032-0A
|
$1.80 | ||
|
Unavailable |
|||
|
#26
BOLT, HEX. (6X32)
92101-06032-0A
|
$1.80 | ||
|
Unavailable |
|||
|
#27
CIRCLIP (OUTER) (35MM) (NOT AVAILABLE)
94510-35120
|
$0.84 | ||
|
Unavailable |
|||
|
#28
BEARING, RADIAL BALL (6001)
96100-60010
Superseded by 96100-60010-00
|
$9.64 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING, RADIAL BALL (6001)
96100-60010-00
|
$9.64 | ||
|
Unavailable |
|||
