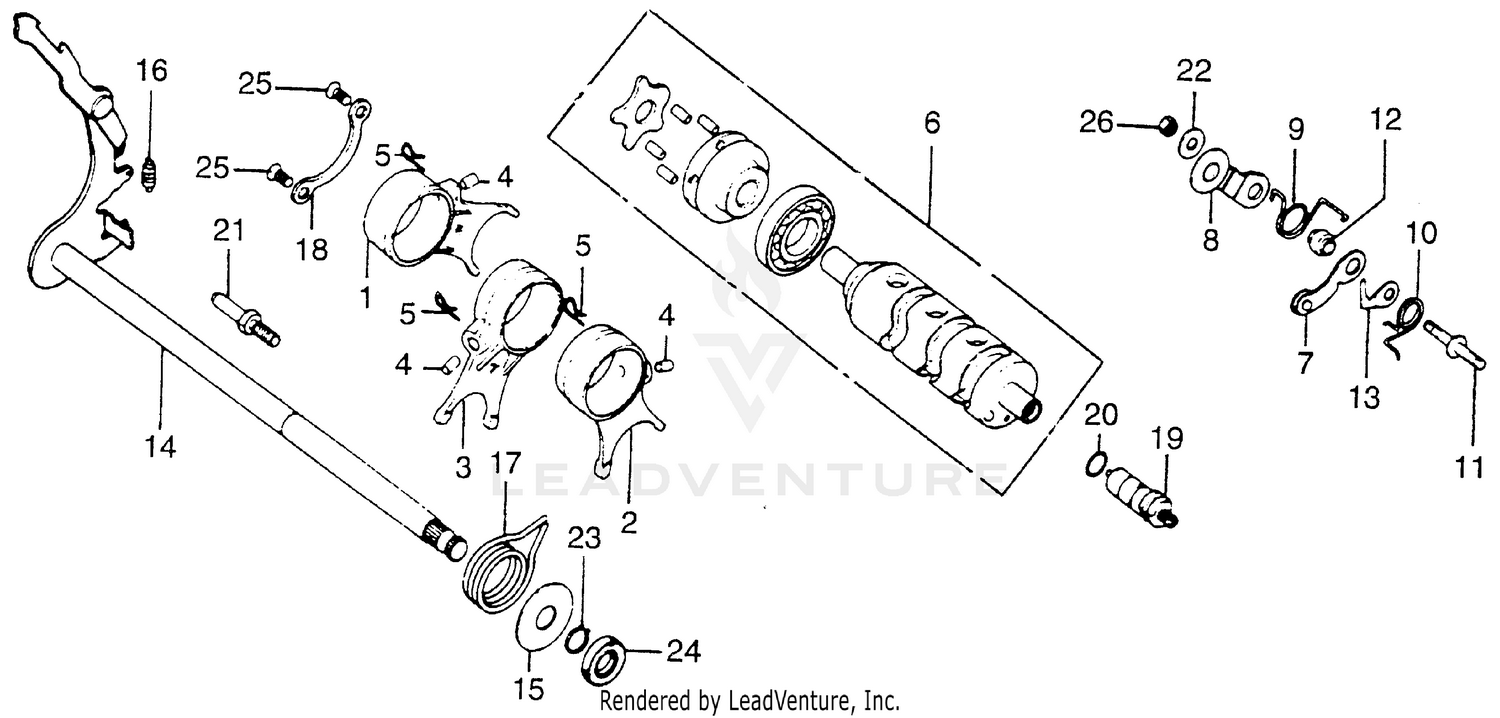

Gearshift Fork + Drum Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK, R. GEARSHIFT
24211-354-000
|
$56.31 | ||
|
Unavailable |
|||
|
#2
FORK, L. GEARSHIFT (NOT AVAILABLE)
24221-235-000
|
$91.34 | ||
|
Unavailable |
|||
|
#3
FORK, CENTER GEARSHIFT
24231-235-000
|
$91.34 | ||
|
Unavailable |
|||
|
#4
PIN, GEARSHIFT FORK GUIDE
24261-283-000
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP, GEARSHIFT FORK GUIDE (NOT AVAILABLE)
24263-283-000
|
$0.95 | ||
|
Unavailable |
|||
|
#6
DRUM, GEARSHIFT (NOT AVAILABLE)
24300-354-000
|
$152.25 | ||
|
Unavailable |
|||
|
#7
ARM, NEUTRAL STOPPER
24420-354-000
|
$11.57 | ||
|
Available to order. Add to View Price |
|||
|
#8
STOPPER, SHIFT DRUM (NOT AVAILABLE)
24430-302-000
Superseded by 24430-302-010
|
$10.59 | ||
|
Unavailable |
|||
|
#8
STOPPER, SHIFT DRUM (NOT AVAILABLE)
24430-302-010
|
$10.59 | ||
|
Unavailable |
|||
|
#9
SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)
24435-302-000
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, NEUTRAL STOPPER (NOT AVAILABLE)
24436-315-000
|
$3.78 | ||
|
Unavailable |
|||
|
#11
PIN, SHIFT DRUM STOPPER (NOT AVAILABLE)
24437-302-000
|
$5.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, SHIFT DRUM STOPPER (NOT AVAILABLE)
24438-302-000
|
$5.23 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, STOPPER ARM (NOT AVAILABLE)
24439-302-000
|
$4.18 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPINDLE, GEARSHIFT
24610-302-020
|
$79.04 | ||
|
Unavailable |
|||
|
#15
STOPPER, GEARSHIFT SPINDLE (NOT AVAILABLE)
24621-200-000
|
$4.08 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, GEARSHIFT ARM
24641-216-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, GEARSHIFT RETURN (NOT AVAILABLE)
24651-235-000
|
$9.29 | ||
|
Unavailable |
|||
|
#18
PLATE, BEARING SET (NOT AVAILABLE)
24710-235-000
|
$6.36 | ||
|
Unavailable |
|||
|
#19
SWITCH, NEUTRAL (NOT AVAILABLE)
35750-333-023
|
$11.66 | ||
|
Unavailable |
|||
|
#20
O-RING (NOT AVAILABLE)
35751-333-003
|
$4.70 | ||
|
Unavailable |
|||
|
#21
PIN, RETURN SPRING
90015-286-000
|
$4.03 | ||
|
Unavailable |
|||
|
#22
WASHER, GEARSHIFT DRUM STOPPER (NOT AVAILABLE)
90417-302-000
|
$2.27 | ||
|
Unavailable |
|||
|
#23
CIRCLIP (OUTER) (12MM)
94510-12000
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL (12X25X4.5)
91201-283-005
Superseded by 91202-426-003
|
$7.00 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL (12X25X4.5)
91202-426-003
|
$7.00 | ||
|
Unavailable |
|||
|
#25
SCREW, FLAT (6X12)
93600-06012
Superseded by 93600-06012-0A
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, FLAT (6X12)
93600-06012-0A
|
$1.03 | ||
|
Unavailable |
|||
|
#26
NUT, HEX. (6MM)
90310-KA3-711
Superseded by 94001-06200-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
NUT, HEX. (6MM)
94000-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#26
NUT, HEX. (6MM)
94001-06000
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#26
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#26
NUT, HEX. (6MM)
94001-06008-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#26
NUT, HEX. (6MM)
94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#26
NUT, HEX. (6MM)
94030-06000
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
