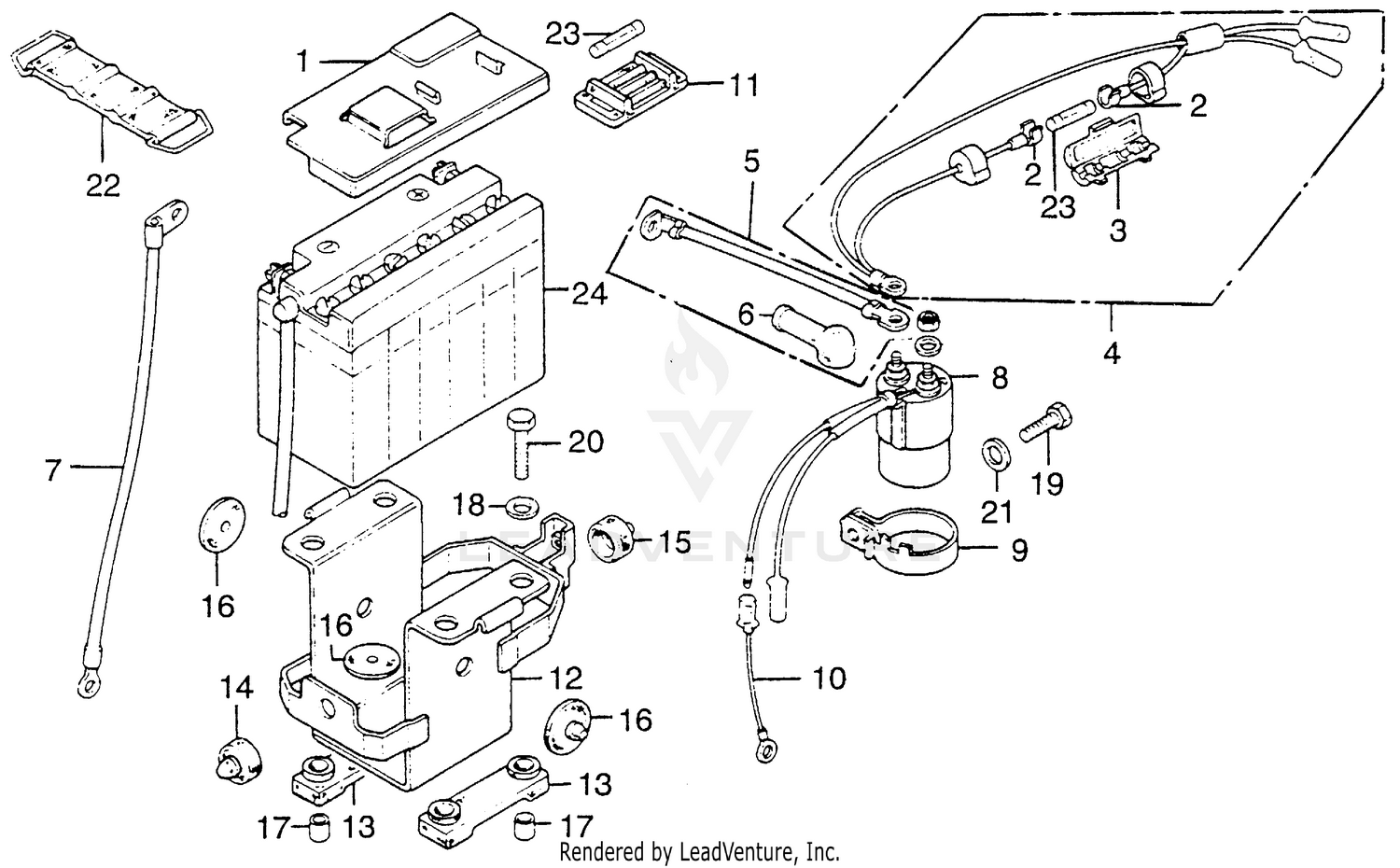

Battery Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, BATTERY (NOT AVAILABLE)
31561-354-000
|
$8.79 | ||
|
Unavailable |
|||
|
#2
CONNECTOR, FUSE
32112-230-000
|
$4.44 | ||
|
Available to order. Add to View Price |
|||
|
#3
CASE, FUSE (NOT AVAILABLE)
32120-323-000
|
$7.99 | ||
|
Unavailable |
|||
|
#4
SUB-WIRE HARNESS, MAGNETIC (NOT AVAILABLE)
32211-351-000
|
$17.82 | ||
|
Unavailable |
|||
|
#5
CABLE, STARTER BATTERY (NOT AVAILABLE)
32401-303-000
Superseded by 32401-319-010
|
$21.56 | ||
|
Unavailable |
|||
|
#5
CABLE, STARTER BATTERY (NOT AVAILABLE)
32401-319-000
Superseded by 32401-319-010
|
$21.56 | ||
|
Unavailable |
|||
|
#5
CABLE, STARTER BATTERY (NOT AVAILABLE)
32401-319-010
|
$21.56 | ||
|
Unavailable |
|||
|
#6
COVER, STARTER MOTOR TERMINAL
32411-230-000
|
$8.04 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, STARTER MOTOR TERMINAL
32411-253-000
Superseded by 32411-230-000
|
$8.04 | ||
|
Unavailable |
|||
|
#7
CABLE, BATTERY GROUND (NOT AVAILABLE)
32601-336-000
|
$19.28 | ||
|
Unavailable |
|||
|
#8
SWITCH ASSY., STARTER MAGNETIC
35850-306-670
Superseded by 35850-371-670
|
$97.49 | ||
|
Unavailable |
|||
|
#8
SWITCH ASSY., STARTER MAGNETIC
35850-371-670
|
$97.49 | ||
|
Unavailable |
|||
|
#9
STAY, STARTER SWITCH (NOT AVAILABLE)
35852-303-010
|
$4.32 | ||
|
Unavailable |
|||
|
#10
WIRE, HORN GROUND (NOT AVAILABLE)
38105-323-000
|
$3.63 | ||
|
Unavailable |
|||
|
#11
CASE, FUSE (NOT AVAILABLE)
38205-115-000
|
$4.14 | ||
|
Unavailable |
|||
|
#12
TRAY, BATTERY (NOT AVAILABLE)
83600-307-010
|
$28.27 | ||
|
Unavailable |
|||
|
#13
RUBBER, BATTERY (NOT AVAILABLE)
83611-354-000
|
$10.98 | ||
|
Unavailable |
|||
|
#14
RUBBER A, BATTERY DISTANCE (NOT AVAILABLE)
83616-307-000
|
$8.13 | ||
|
Unavailable |
|||
|
#15
RUBBER B, BATTERY DISTANCE (NOT AVAILABLE)
83617-307-000
|
$7.16 | ||
|
Unavailable |
|||
|
#16
RUBBER, BATTERY BOX
83618-323-000
|
$2.96 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR, BATTERY TRAY SETTING (NOT AVAILABLE)
84706-307-000
|
$1.44 | ||
|
Unavailable |
|||
|
#18
WASHER B, HANDLE HOLDER SETTING
90525-030-000
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEX. (6X16)
92000-06016
Superseded by 92101-06016-0A
|
$1.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, HEX. (6X16)
92000-06016-0A
Superseded by 92101-06016-0A
|
$1.53 | ||
|
Unavailable |
|||
|
#19
BOLT, HEX. (6X16)
92000-06016-1A
Superseded by 92101-06016-0A
|
$1.53 | ||
|
Unavailable |
|||
|
#19
BOLT, HEX. (6X16)
92100-06016-0A
Superseded by 92101-06016-0A
|
$1.53 | ||
|
Unavailable |
|||
|
#19
BOLT, HEX. (6X16)
92101-06016-0A
|
$1.53 | ||
|
Unavailable |
|||
|
#19
BOLT, HEX. (6X16)
92200-06016-0A
Superseded by 92101-06016-0A
|
$1.53 | ||
|
Unavailable |
|||
|
#20
BOLT, HEX. (6X25)
92000-06025
Superseded by 92101-06025-0A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, HEX. (6X25)
92101-06025-0A
|
$1.70 | ||
|
Unavailable |
|||
|
#21
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#21
WASHER, PLAIN (6MM)
94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#22
BAND, BATTERY
95012-15000
Superseded by 95012-15001
|
$7.93 | ||
|
Available to order. Add to View Price |
|||
|
#22
BAND, BATTERY
95012-15001
|
$7.93 | ||
|
Unavailable |
|||
|
#23
FUSE A (15A)
98200-11500
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#24
BATTERY ASSY. (12N9-4B-1)
31500-222-000
Superseded by 31500-235-677AH
|
$70.75 | ||
|
Available to order. Add to View Price |
|||
|
#24
BATTERY ASSY. (12N9-4B-1)
31500-235-000
Superseded by 31500-235-677AH
|
$70.75 | ||
|
Unavailable |
|||
|
#24
BATTERY ASSY. (12N9-4B-1)
31500-235-677
Superseded by 31500-235-677AH
|
$70.75 | ||
|
Unavailable |
|||
|
#24
BATTERY ASSY. (12N9-4B-1)
31500-307-671
Superseded by 31500-235-677AH
|
$70.75 | ||
|
Unavailable |
|||
|
#24
BATTERY ASSY. (12N9-4B-1)
98203-21240
Superseded by 31500-235-677AH
|
$70.75 | ||
|
Unavailable |
|||
