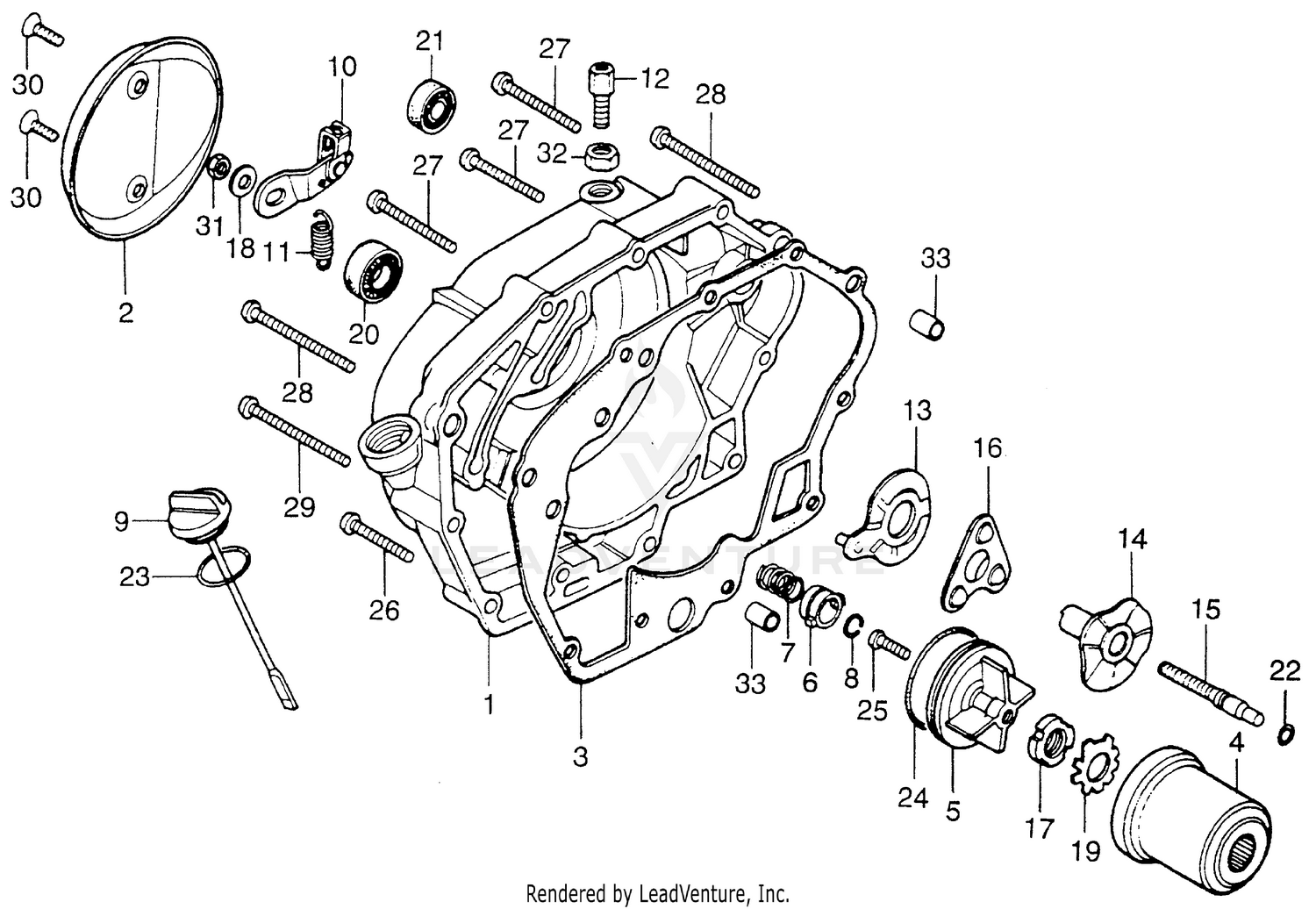

Right Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, R. CRANKCASE (NOT AVAILABLE)
11330-354-010
|
$274.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, CLUTCH ADJUST
11348-354-000
|
$36.25 | ||
|
Unavailable |
|||
|
#3
GASKET, R. CRANKCASE COVER
11394-302-010
Superseded by 11394-302-306
|
$13.60 | ||
|
Unavailable |
|||
|
#3
GASKET, R. CRANKCASE COVER
11394-302-306
|
$13.60 | ||
|
Unavailable |
|||
|
#4
ROTOR, OIL FILTER (NOT AVAILABLE)
15441-354-000
|
$21.56 | ||
|
Unavailable |
|||
|
#5
CAP, OIL FILTER (NOT AVAILABLE)
15450-216-000
|
$11.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
METAL, OIL GUIDE (NOT AVAILABLE)
15594-286-000
|
$12.52 | ||
|
Unavailable |
|||
|
#7
SPRING, OIL GUIDE METAL (NOT AVAILABLE)
15595-286-000
|
$2.79 | ||
|
Unavailable |
|||
|
#8
RING, OIL GUIDE METAL STOPPER (NOT AVAILABLE)
15597-286-000
|
$2.90 | ||
|
Unavailable |
|||
|
#9
DIPSTICK, OIL
15650-354-000
|
$15.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
LEVER, CLUTCH (NOT AVAILABLE)
22810-354-000
|
$8.89 | ||
|
Unavailable |
|||
|
#11
SPRING, CLUTCH LEVER
22815-300-000
|
$4.14 | ||
|
Unavailable |
|||
|
#12
BOLT, ADJUST (A10X44)
22818-354-000
|
$18.88 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE A, CLUTCH CAM (NOT AVAILABLE)
22820-354-000
|
$12.05 | ||
|
Unavailable |
|||
|
#14
LIFTER, CLUTCH (NOT AVAILABLE)
22830-354-000
|
$31.88 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, CLUTCH LIFTER ADJUSTING (NOT AVAILABLE)
22837-354-000
|
$8.89 | ||
|
Unavailable |
|||
|
#16
RETAINER, CLUTCH BALL
22860-046-000
|
$8.84 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, LOCK (16MM)
90231-028-000
Superseded by 90231-KCS-651
|
$5.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NUT, LOCK (16MM)
90231-200-000
Superseded by 90231-KCS-651
|
$5.27 | ||
|
Unavailable |
|||
|
#18
WASHER, SHIFT DRUM SIDE (NOT AVAILABLE)
90417-001-000
|
$1.99 | ||
|
Unavailable |
|||
|
#19
WASHER, SPRING (16MM)
90431-292-000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL (12X28X5) (NOT AVAILABLE)
91201-011-000
|
$2.70 | ||
|
Unavailable |
|||
|
#21
OIL SEAL (14X24X5)
91202-KFL-841
|
$6.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
OIL SEAL (14X24X5)
91202-302-000
Superseded by 91202-KFL-841
|
$6.33 | ||
|
Unavailable |
|||
|
#21
OIL SEAL (14X24X5)
91202-302-010
Superseded by 91202-KFL-841
|
$6.33 | ||
|
Unavailable |
|||
|
#21
OIL SEAL (14X24X5)
91205-HB2-771
Superseded by 91202-KFL-841
|
$6.33 | ||
|
Unavailable |
|||
|
#21
OIL SEAL (14X24X5)
91205-HB2-772
Superseded by 91202-KFL-841
|
$6.33 | ||
|
Unavailable |
|||
|
#21
OIL SEAL (14X24X5)
91205-035-303
Superseded by 91202-KFL-841
|
$6.33 | ||
|
Unavailable |
|||
|
#22
O-RING (5.1X2.2) (NOT AVAILABLE)
91301-354-000
|
$3.27 | ||
|
Unavailable |
|||
|
#23
O-RING (27.5X2.6)
91302-001-000
Superseded by 91302-001-710
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING (27.5X2.6)
91302-001-710
|
$3.76 | ||
|
Unavailable |
|||
|
#24
O-RING (46X2)
91305-216-000
Superseded by 91305-426-003
|
$9.02 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING (46X2)
91305-426-003
|
$9.02 | ||
|
Unavailable |
|||
|
#25
SCREW, PAN (6X20)
93500-06020
Superseded by 93500-06020-0A
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, PAN (6X20)
93500-06020-0A
|
$1.07 | ||
|
Unavailable |
|||
|
#26
SCREW, PAN (6X35)
93500-06035-0A
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PAN (6X35)
93500-06036
Superseded by 93500-06035-0A
|
$1.15 | ||
|
Unavailable |
|||
|
#27
SCREW, PAN (6X45)
93500-06045
Superseded by 93500-06045-0A
|
$1.11 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, PAN (6X45)
93500-06045-0A
|
$1.11 | ||
|
Unavailable |
|||
|
#28
SCREW, PAN (6X50)
93500-06050
Superseded by 93500-06050-0A
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, PAN (6X50)
93500-06050-0A
|
$1.08 | ||
|
Unavailable |
|||
|
#29
SCREW, PAN (6X55)
93500-06055
Superseded by 93500-06055-0A
|
$1.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
SCREW, PAN (6X55)
93500-06055-0A
|
$1.20 | ||
|
Unavailable |
|||
|
#30
SCREW, OVAL (6X16)
93700-06016
Superseded by 93700-06016-0A
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, OVAL (6X16)
93700-06016-0A
|
$1.20 | ||
|
Unavailable |
|||
|
#31
NUT, HEX. (6MM)
90310-KA3-711
Superseded by 94001-06200-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
NUT, HEX. (6MM)
94000-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#31
NUT, HEX. (6MM)
94001-06000
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#31
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#31
NUT, HEX. (6MM)
94001-06008-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#31
NUT, HEX. (6MM)
94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#31
NUT, HEX. (6MM)
94030-06000
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#32
NUT, HEX. (10MM)
94001-10000-0S
|
$1.52 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
PIN A, DOWEL (10X14)
94301-10140
|
$2.58 | ||
|
Unavailable |
|||
