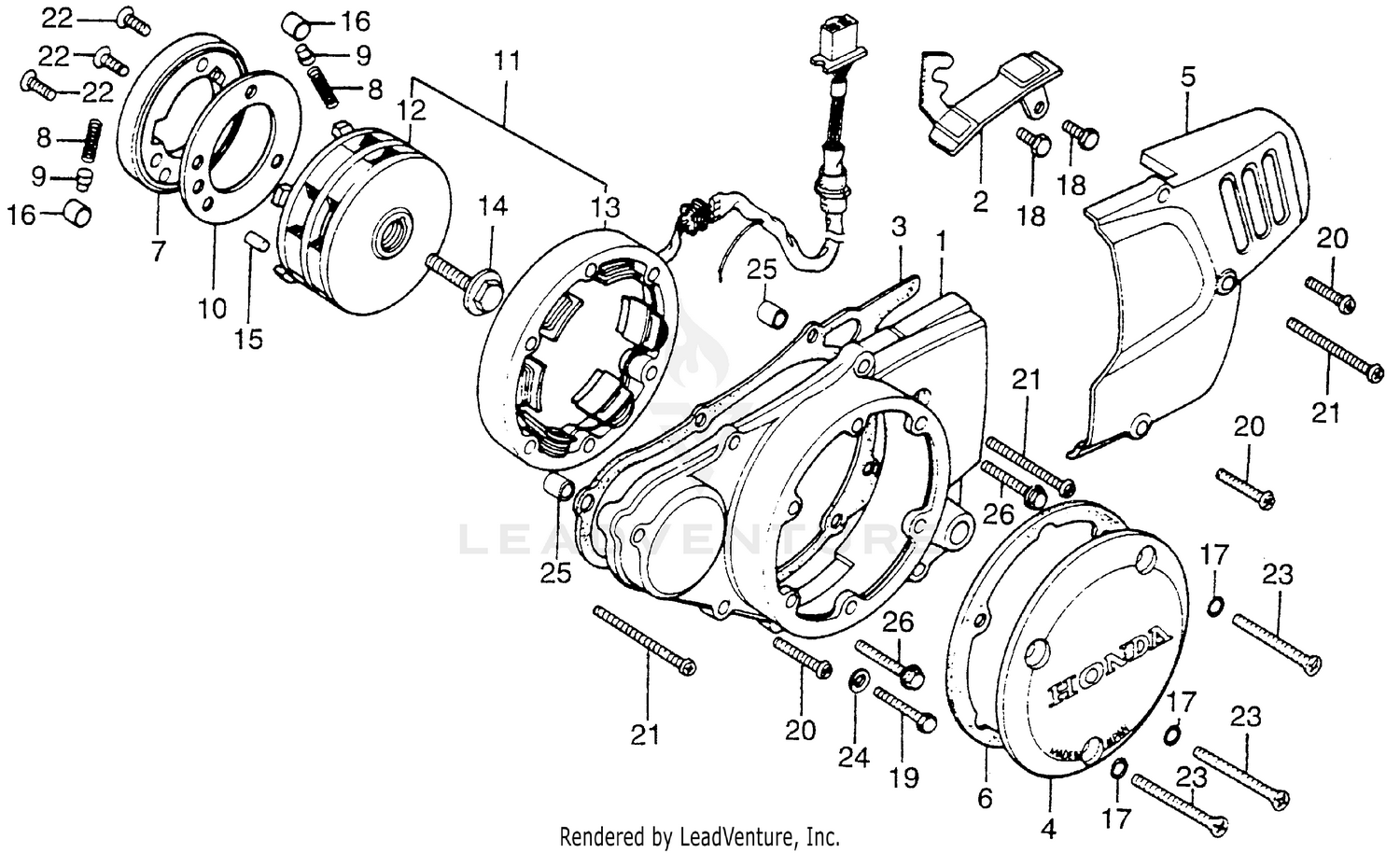

Left Crankcase Cover + Alternator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, L. CRANKCASE (NOT AVAILABLE)
11340-354-000
|
$268.35 | ||
|
Unavailable |
|||
|
#2
PROTECTOR, CASE (NOT AVAILABLE)
11353-354-000
|
$16.10 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, L.
11395-302-010
Superseded by 11395-302-307
|
$20.96 | ||
|
Unavailable |
|||
|
#4
COVER, ALTERNATOR (NOT AVAILABLE)
11431-354-000
|
$47.99 | ||
|
Unavailable |
|||
|
#5
COVER, DRIVE CHAIN (NOT AVAILABLE)
11661-354-000
|
$53.53 | ||
|
Unavailable |
|||
|
#6
GASKET, DYNAMO COVER
11691-354-000
Superseded by 11691-354-306
|
$10.03 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLUTCH, STARTER (OUTER)
28120-201-040
|
$105.47 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, STARTER CLUTCH ROLLER
28125-253-020
|
$7.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, STARTER CLUTCH ROLLER SPRING
28126-253-030
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, STARTER CLUTCH SIDE
28128-253-030
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#11
ALTERNATOR ASSY. (HITACHI)
31100-354-005
|
$266.07 | ||
|
Unavailable |
|||
|
#12
ROTOR (HITACHI)
31101-354-005
|
$165.77 | ||
|
Unavailable |
|||
|
#13
STATOR (HITACHI) (NOT AVAILABLE)
31102-354-005
|
$132.12 | ||
|
Unavailable |
|||
|
#14
BOLT, ROTOR SETTING (NOT AVAILABLE)
90014-286-000
|
$7.78 | ||
|
Unavailable |
|||
|
#15
PIN, KNOCK (6X17.5)
90701-250-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, KNOCK (6X17.5) (NOT AVAILABLE)
90704-259-000
|
$2.81 | ||
|
Unavailable |
|||
|
#16
ROLLER (10.2X9.5)
91101-253-020
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING (5.5X1.5)
91301-216-000
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HEX. (6X10)
92000-06010
Superseded by 92101-06010-0A
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HEX. (6X10)
92101-06010-0A
|
$1.47 | ||
|
Unavailable |
|||
|
#20
SCREW, PAN (6X25)
93500-06025
Superseded by 93500-06025-0A
|
$1.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
SCREW, PAN (6X45)
93500-06045
Superseded by 93500-06045-0A
|
$1.11 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, PAN (6X45)
93500-06045-0A
|
$1.11 | ||
|
Unavailable |
|||
|
#22
SCREW, FLAT (6X20)
93600-06020
Superseded by 93600-06020-0A
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
SCREW, FLAT (6X20)
93600-06020-0A
|
$1.03 | ||
|
Unavailable |
|||
|
#23
SCREW, OVAL (6X40)
93700-06040
Superseded by 93700-06040-0A
|
$1.28 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SCREW, OVAL (6X40)
93700-06040-0A
|
$1.28 | ||
|
Unavailable |
|||
|
#23
SCREW, OVAL (6X40)
93715-06040
Superseded by 93700-06040-0A
|
$1.28 | ||
|
Unavailable |
|||
|
#25
PIN A, DOWEL (10X14)
94301-10140
|
$2.58 | ||
|
Unavailable |
|||
|
#26
BOLT, FLANGE (6X28)
95700-06028-00
|
$1.90 | ||
|
Unavailable |
|||
|
#26
BOLT, FLANGE (6X28)
95701-06028-00
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
