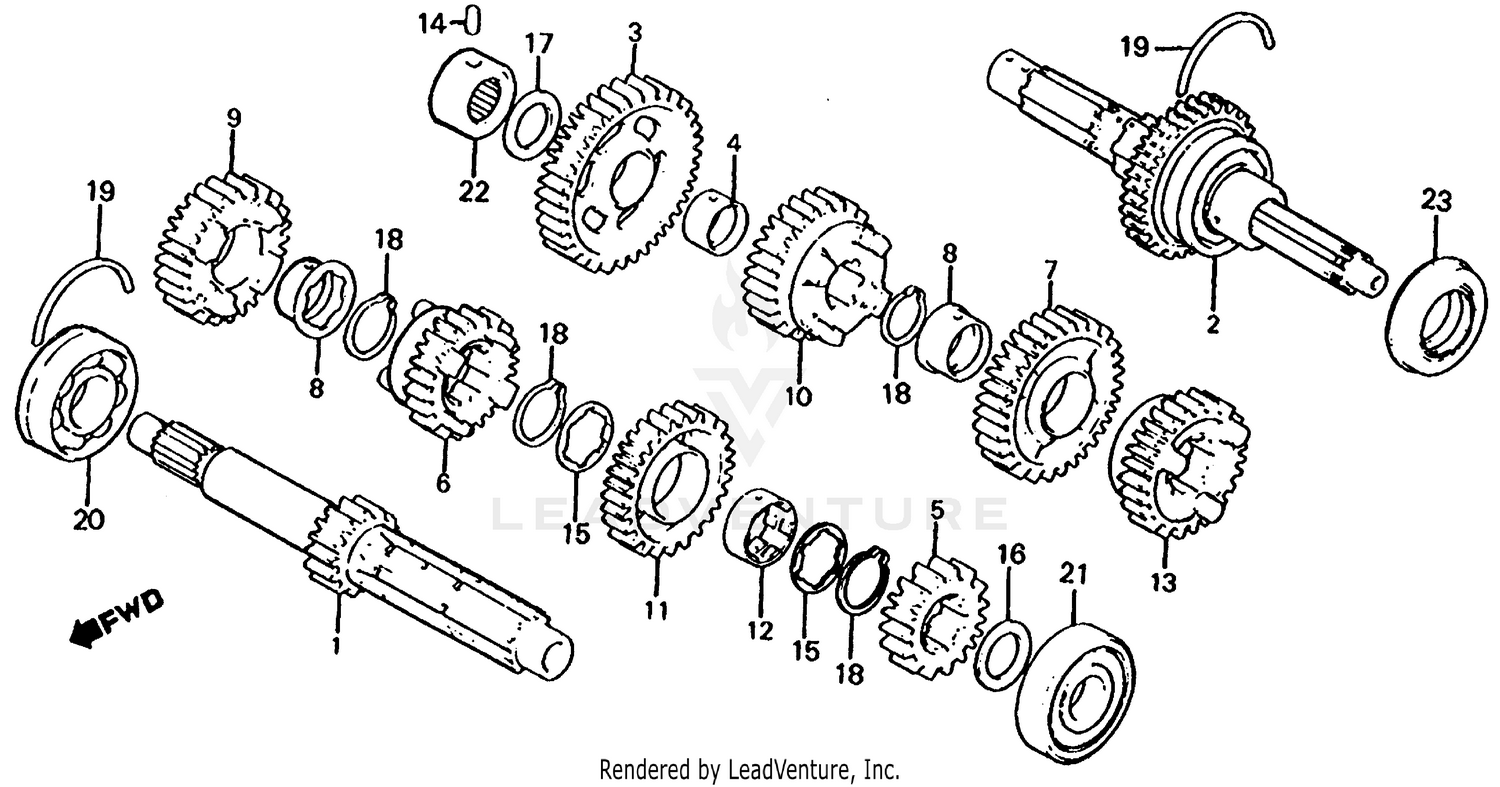

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT, TRANSMISSION (16T) (NOT AVAILABLE)
23211-461-010
|
$128.91 | ||
|
Unavailable |
|||
|
#2
COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE)
23220-461-000
Superseded by 23220-461-030
|
$184.01 | ||
|
Unavailable |
|||
|
#2
COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE)
23220-461-010
Superseded by 23220-461-030
|
$184.01 | ||
|
Unavailable |
|||
|
#2
COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE)
23220-461-020
Superseded by 23220-461-030
|
$184.01 | ||
|
Unavailable |
|||
|
#2
COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE)
23220-461-030
|
$184.01 | ||
|
Unavailable |
|||
|
#3
GEAR, COUNTERSHAFT LOW (38T) (NOT AVAILABLE)
23411-461-000
|
$133.99 | ||
|
Unavailable |
|||
|
#4
BUSH, COUNTERSHAFT LOW GEAR (NOT AVAILABLE)
23422-425-000
|
$21.87 | ||
|
Unavailable |
|||
|
#5
GEAR, MAINSHAFT SECOND (19T) (NOT AVAILABLE)
23431-425-010
|
$80.18 | ||
|
Unavailable |
|||
|
#6
GEAR, MAINSHAFT THIRD (23T) (NOT AVAILABLE)
23451-MG1-670
|
$98.99 | ||
|
Unavailable |
|||
|
#6
GEAR, MAINSHAFT THIRD (23T) (NOT AVAILABLE)
23451-MG5-670
Superseded by 23451-MG1-670
|
$98.99 | ||
|
Unavailable |
|||
|
#7
GEAR, COUNTERSHAFT THIRD (32T)
23461-MG1-670
|
$119.21 | ||
|
Unavailable |
|||
|
#8
BUSH (31MM) (NOT AVAILABLE)
23465-MA3-000
|
$27.24 | ||
|
Unavailable |
|||
|
#9
GEAR, MAINSHAFT FOURTH (25T) (NOT AVAILABLE)
23471-MA3-000
|
$81.30 | ||
|
Unavailable |
|||
|
#10
GEAR, COUNTERSHAFT FOURTH (29T)
23481-MG5-670
|
$172.77 | ||
|
Unavailable |
|||
|
#11
GEAR, MAINSHAFT FIFTH (28T) (NOT AVAILABLE)
23491-MG1-670
|
$115.24 | ||
|
Unavailable |
|||
|
#12
COLLAR, SPLINE (28X17) (NOT AVAILABLE)
23495-422-000
|
$22.25 | ||
|
Unavailable |
|||
|
#13
GEAR, COUNTERSHAFT FIFTH (27T) (NOT AVAILABLE)
23501-MG1-670
|
$126.78 | ||
|
Unavailable |
|||
|
#14
PIN, GEARSHIFT FORK GUIDE
24261-283-000
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, THRUST (28MM)
90451-422-000
|
$9.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, THRUST (22.5MM) (NOT AVAILABLE)
90453-426-000
|
$3.63 | ||
|
Unavailable |
|||
|
#17
WASHER, THRUST (NOT AVAILABLE)
90457-425-000
|
$2.47 | ||
|
Unavailable |
|||
|
#18
CIRCLIP (OUTER) (28MM)
90601-422-000
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#19
SET-RING (62MM) (NOT AVAILABLE)
90602-428-000
|
$2.88 | ||
|
Unavailable |
|||
|
#20
BEARING, RADIAL BALL (6305) (NTN CORP.)
91003-KY2-003
|
$46.61 | ||
|
Unavailable |
|||
|
#20
BEARING, RADIAL BALL (6305) (NTN CORP.)
91004-438-003
Superseded by 91003-KY2-003
|
$46.61 | ||
|
Unavailable |
|||
|
#21
BEARING, RADIAL BALL (63/22U) (NOT AVAILABLE)
91005-425-003
|
$27.49 | ||
|
Unavailable |
|||
|
#22
BEARING, NEEDLE (22MM) (NOT AVAILABLE)
91022-438-008
|
$34.66 | ||
|
Unavailable |
|||
|
#23
OIL SEAL (40X62X13)
91205-425-003
|
$37.56 | ||
|
Available to order. Add to View Price |
|||
