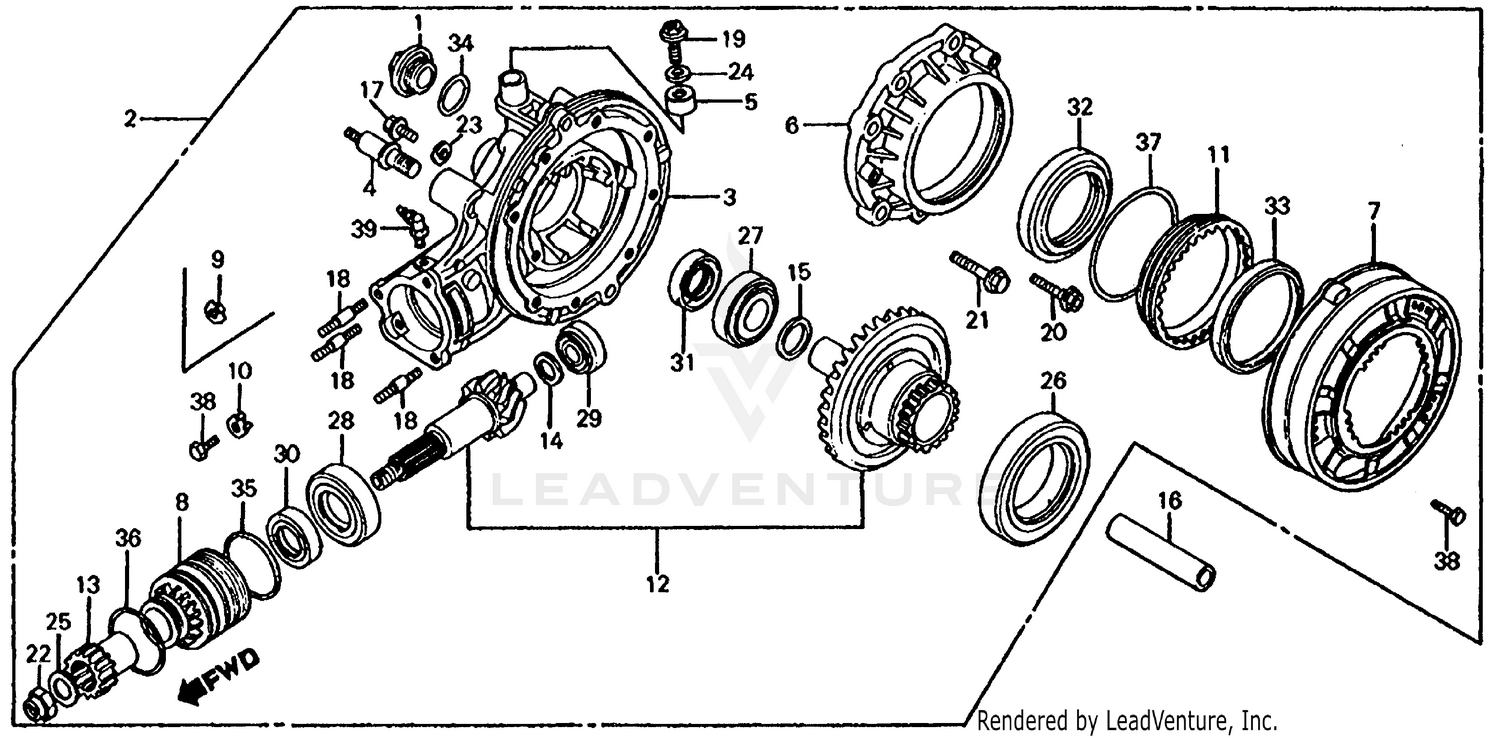

Final Driven Gear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAP, VALVE ADJ.
12361-035-000
Superseded by 12361-300-000
|
$12.40 | ||
|
Available to order. Add to View Price |
|||
|
#1
CAP, VALVE ADJ.
12361-300-000
|
$12.40 | ||
|
Unavailable |
|||
|
#1
CAP, VALVE ADJ.
12361-371-980
Superseded by 12361-300-000
|
$12.40 | ||
|
Unavailable |
|||
|
#2
GEAR ASSY., FINAL DRIVEN (NOT AVAILABLE)
41300-MB9-000
|
$1,616.52 | ||
|
Unavailable |
|||
|
#3
CASE, FINAL GEAR (NOT AVAILABLE)
41301-463-000
|
$751.07 | ||
|
Unavailable |
|||
|
#4
STAY, RUBBER (LOWER)
41303-463-300
|
$14.87 | ||
|
Unavailable |
|||
|
#5
CAP, BREATHER (NOT AVAILABLE)
41306-463-000
|
$4.42 | ||
|
Unavailable |
|||
|
#6
COVER, L. GEAR CASE
41321-463-000
|
$125.18 | ||
|
Unavailable |
|||
|
#7
PLATE, DUST GUARD (NOT AVAILABLE)
41324-463-010
|
$31.61 | ||
|
Unavailable |
|||
|
#8
RETAINER B, BEARING (NOT AVAILABLE)
41331-463-000
|
$108.66 | ||
|
Unavailable |
|||
|
#9
LOCK A, BEARING ADJ.
41332-415-000
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#10
LOCK B, BEARING ADJ.
41333-415-000
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#11
RETAINER A, BEARING (NOT AVAILABLE)
41351-463-000
|
$69.97 | ||
|
Unavailable |
|||
|
#12
GEAR SET, FINAL DRIVEN
414A3-MB9-000
|
$456.27 | ||
|
Unavailable |
|||
|
#13
JOINT, PINION (NOT AVAILABLE)
41410-463-000
|
$94.67 | ||
|
Unavailable |
|||
|
#14
SHIM A, PINION GEAR (1.10) (NOT AVAILABLE)
41450-415-000
|
$3.69 | ||
|
Unavailable |
|||
|
#14
SHIM B, PINION GEAR (1.14) (NOT AVAILABLE)
41451-415-000
|
$3.69 | ||
|
Unavailable |
|||
|
#14
SHIM C, PINION GEAR (1.18) (NOT AVAILABLE)
41452-415-000
|
$3.69 | ||
|
Unavailable |
|||
|
#14
SHIM D, PINION GEAR (1.22) (NOT AVAILABLE)
41453-415-000
|
$3.69 | ||
|
Unavailable |
|||
|
#14
SHIM E, PINION GEAR (1.26) (NOT AVAILABLE)
41454-415-000
|
$3.69 | ||
|
Unavailable |
|||
|
#14
SHIM F, PINION GEAR (1.30) (NOT AVAILABLE)
41455-415-000
|
$3.69 | ||
|
Unavailable |
|||
|
#14
SHIM G, PINION GEAR (1.34) (NOT AVAILABLE)
41456-415-000
|
$3.69 | ||
|
Unavailable |
|||
|
#14
SHIM H, PINION GEAR (1.38) (NOT AVAILABLE)
41457-415-000
|
$3.69 | ||
|
Unavailable |
|||
|
#14
SHIM I, PINION GEAR (1.42) (NOT AVAILABLE)
41458-415-000
|
$3.69 | ||
|
Unavailable |
|||
|
#14
SHIM J, PINION GEAR (1.46) (NOT AVAILABLE)
41459-415-000
|
$3.69 | ||
|
Unavailable |
|||
|
#14
SHIM K, PINION GEAR (1.50) (NOT AVAILABLE)
41460-415-000
|
$3.69 | ||
|
Unavailable |
|||
|
#14
SHIM L, PINION GEAR (1.54) (NOT AVAILABLE)
41461-415-000
|
$3.69 | ||
|
Unavailable |
|||
|
#14
SHIM M, PINION GEAR (1.58) (NOT AVAILABLE)
41462-415-000
|
$3.69 | ||
|
Unavailable |
|||
|
#14
SHIM N, PINION GEAR (1.62) (NOT AVAILABLE)
41463-415-000
|
$3.69 | ||
|
Unavailable |
|||
|
#14
SHIM O, PINION GEAR (1.66) (NOT AVAILABLE)
41464-415-000
|
$3.69 | ||
|
Unavailable |
|||
|
#14
SHIM P, PINION GEAR (1.70) (NOT AVAILABLE)
41465-415-000
|
$3.69 | ||
|
Unavailable |
|||
|
#14
SHIM Q, PINION GEAR (1.74) (NOT AVAILABLE)
41466-415-000
|
$3.69 | ||
|
Unavailable |
|||
|
#14
SHIM R, PINION GEAR (1.78) (NOT AVAILABLE)
41467-415-000
|
$3.29 | ||
|
Unavailable |
|||
|
#14
SHIM S, PINION GEAR (1.82) (NOT AVAILABLE)
41468-415-000
|
$3.69 | ||
|
Unavailable |
|||
|
#14
SHIM T, PINION GEAR (1.86) (NOT AVAILABLE)
41469-415-000
|
$3.69 | ||
|
Unavailable |
|||
|
#14
SHIM U, PINION GEAR (1.90) (NOT AVAILABLE)
41470-415-000
|
$3.69 | ||
|
Unavailable |
|||
|
#15
SPACER B, RING GEAR (1.80) (NOT AVAILABLE)
41501-371-010
|
$8.61 | ||
|
Unavailable |
|||
|
#15
SPACER C, RING GEAR (1.84) (NOT AVAILABLE)
41502-371-010
|
$7.26 | ||
|
Unavailable |
|||
|
#15
SPACER D, RING GEAR (1.88) (NOT AVAILABLE)
41503-371-010
|
$8.12 | ||
|
Unavailable |
|||
|
#15
SPACER E, RING GEAR (1.92) (NOT AVAILABLE)
41504-371-010
|
$8.12 | ||
|
Unavailable |
|||
|
#15
SPACER F, RING GEAR (1.96) (NOT AVAILABLE)
41505-371-010
|
$8.12 | ||
|
Unavailable |
|||
|
#15
SPACER G, RING GEAR (2.00) (NOT AVAILABLE)
41506-371-010
|
$8.12 | ||
|
Unavailable |
|||
|
#15
SPACER H, RING GEAR (2.04) (NOT AVAILABLE)
41507-371-010
|
$8.12 | ||
|
Unavailable |
|||
|
#15
SPACER I, RING GEAR (2.08) (NOT AVAILABLE)
41508-371-010
|
$8.12 | ||
|
Unavailable |
|||
|
#15
SPACER J, RING GEAR (2.12) (NOT AVAILABLE)
41509-371-010
|
$8.12 | ||
|
Unavailable |
|||
|
#15
SPACER K, RING GEAR (2.16) (NOT AVAILABLE)
41510-371-010
|
$8.12 | ||
|
Unavailable |
|||
|
#15
SPACER, L. GEAR (NOT AVAILABLE)
41511-371-010
|
$8.12 | ||
|
Unavailable |
|||
|
#15
SPACER M, GEAR (NOT AVAILABLE)
41512-371-010
|
$8.12 | ||
|
Unavailable |
|||
|
#15
SPACER N, GEAR (NOT AVAILABLE)
41513-371-010
|
$8.12 | ||
|
Unavailable |
|||
|
#15
SPACER O, GEAR (NOT AVAILABLE)
41514-371-010
|
$8.12 | ||
|
Unavailable |
|||
|
#15
SPACER P, RING GEAR (2.36)
41515-371-010
|
$10.40 | ||
|
Unavailable |
|||
|
#15
SPACER Q, RING GEAR (2.40)
41516-371-000
|
$11.05 | ||
|
Unavailable |
|||
|
#15
SPACER R, RING GEAR (2.44) (NOT AVAILABLE)
41517-371-000
|
$8.12 | ||
|
Unavailable |
|||
|
#16
COLLAR B, RR. WHEEL DISTANCE (NOT AVAILABLE)
42625-463-000
|
$11.54 | ||
|
Unavailable |
|||
|
#17
BOLT, SEALING (8MM)
90109-371-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, STUD (10X45) (NOT AVAILABLE)
90125-371-000
|
$3.03 | ||
|
Unavailable |
|||
|
#19
BOLT, BREATHER (NOT AVAILABLE)
90126-415-000
|
$5.09 | ||
|
Unavailable |
|||
|
#20
BOLT, FLANGE (8X32) (NOT AVAILABLE)
90133-371-000
|
$5.57 | ||
|
Unavailable |
|||
|
#21
BOLT, FLANGE (10X38) (NOT AVAILABLE)
90134-371-000
|
$5.55 | ||
|
Unavailable |
|||
|
#22
NUT, HEX. (16MM) (NOT AVAILABLE)
90381-371-000
|
$4.27 | ||
|
Unavailable |
|||
|
#23
WASHER (8MM)
90471-580-000
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
WASHER (16MM) (NOT AVAILABLE)
90581-463-010
|
$3.15 | ||
|
Unavailable |
|||
|
#26
BEARING (CR-1457)
91051-463-008
|
$92.52 | ||
|
Unavailable |
|||
|
#27
BEARING (32907) (NOT AVAILABLE)
91052-463-003
|
$55.48 | ||
|
Unavailable |
|||
|
#28
BEARING (30206C) (TOYO) (NOT AVAILABLE)
91061-463-004
Superseded by 91061-463-008
|
$40.61 | ||
|
Unavailable |
|||
|
#28
BEARING (30206C) (TOYO) (NOT AVAILABLE)
91061-463-008
|
$40.61 | ||
|
Unavailable |
|||
|
#29
BEARING, TAPER (30203)
91062-415-013
Superseded by 91121-PH8-961
|
$43.14 | ||
|
Unavailable |
|||
|
#29
BEARING, TAPER (30203)
91121-PH8-961
|
$43.14 | ||
|
Unavailable |
|||
|
#30
OIL SEAL (30X51X10) (NOT AVAILABLE)
91261-463-013
|
$8.76 | ||
|
Available to order. Add to View Price |
|||
|
#31
OIL SEAL (35X47X9)
91264-463-005
Superseded by 91264-752-003
|
$9.40 | ||
|
Available to order. Add to View Price |
|||
|
#32
OIL SEAL (70X94X6)
91265-463-003
|
$14.82 | ||
|
Unavailable |
|||
|
#33
DUST SEAL (75X86X6.5)
91266-463-005
|
$14.16 | ||
|
Unavailable |
|||
|
#34
O-RING (30.8MM)
91302-001-020
|
$4.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
O-RING (57X4.3) (NOT AVAILABLE)
91353-463-005
|
$3.72 | ||
|
Unavailable |
|||
|
#36
O-RING (60.5X2.4)
91354-463-003
|
$3.23 | ||
|
Available to order. Add to View Price |
|||
|
#37
O-RING (100.5X2)
91355-463-003
|
$5.86 | ||
|
Available to order. Add to View Price |
|||
|
#37
O-RING (100.5X2)
91355-463-005
Superseded by 91355-463-003
|
$5.86 | ||
|
Unavailable |
|||
|
#38
BOLT, HEX. (6X12)
92000-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
BOLT, HEX. (6X12)
92101-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#38
BOLT, HEX. (6X12)
92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#39
FITTING, GREASE (B.76S)
96201-80000
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
