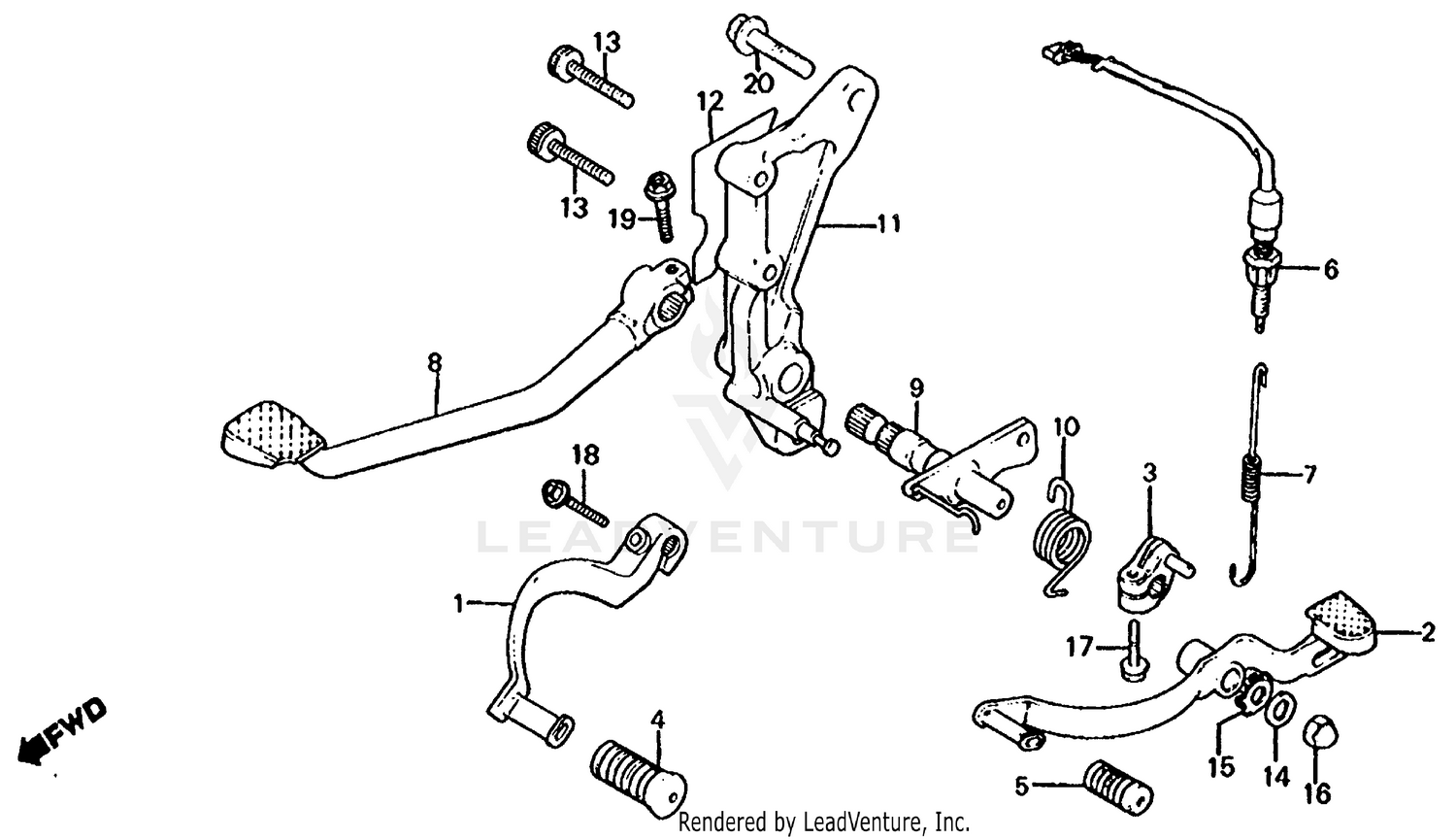

Gearshift Pedal + Brake Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, GEARSHIFT
24701-MG1-000
|
$47.11 | ||
|
Unavailable |
|||
|
#2
PEDAL, SELECT (NOT AVAILABLE)
24710-461-000
|
$42.19 | ||
|
Unavailable |
|||
|
#3
ARM, SELECT (NOT AVAILABLE)
24711-461-000
|
$20.44 | ||
|
Unavailable |
|||
|
#4
RUBBER, GEARSHIFT PEDAL
24781-419-000
|
$7.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
RUBBER, GEARSHIFT
24781-461-000
|
$2.15 | ||
|
Unavailable |
|||
|
#6
SWITCH ASSY., RR. STOP
35350-KA2-405
|
$19.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
SWITCH ASSY., RR. STOP
35350-438-000
Superseded by 35350-KA2-405
|
$19.67 | ||
|
Unavailable |
|||
|
#7
SPRING, STOP SWITCH
35357-MA2-610
|
$3.63 | ||
|
Unavailable |
|||
|
#7
SPRING, STOP SWITCH
35357-428-000
Superseded by 35357-MA2-610
|
$3.63 | ||
|
Unavailable |
|||
|
#8
PEDAL, RR. BRAKE (NOT AVAILABLE)
46500-MG1-000
|
$108.49 | ||
|
Unavailable |
|||
|
#9
SPINDLE, RR. BRAKE (NOT AVAILABLE)
46510-461-000
|
$39.31 | ||
|
Unavailable |
|||
|
#10
SPRING, BRAKE PEDAL (NOT AVAILABLE)
46514-461-000
|
$7.75 | ||
|
Unavailable |
|||
|
#11
HOLDER, RR. BRAKE PEDAL (NOT AVAILABLE)
46515-461-000
|
$150.51 | ||
|
Unavailable |
|||
|
#12
LABEL, MUFFLER CAUTION (NOT AVAILABLE)
87504-461-670
|
$5.20 | ||
|
Unavailable |
|||
|
#13
BOLT, SOCKET (8X28)
90105-MA6-750
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, SOCKET (8X28)
90105-422-000
Superseded by 90105-MA6-750
|
$6.20 | ||
|
Unavailable |
|||
|
#14
WASHER, GEARSHIFT DRUM SIDE
90417-041-000
|
$2.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
WASHER (6MM) (NOT AVAILABLE)
90503-461-000
|
$1.22 | ||
|
Unavailable |
|||
|
#16
NUT, CAP (6MM)
94021-06220-0S
|
$1.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X20)
95700-06020-00
Superseded by 95701-06020-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X20)
95701-06020-00
|
$1.85 | ||
|
Unavailable |
|||
|
#18
BOLT, FLANGE (6X25)
95700-06025-00
Superseded by 95701-06025-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.88 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE (8X25)
95700-08025-00
Superseded by 95701-08025-00
|
$2.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, FLANGE (8X25)
95701-08025-00
|
$2.04 | ||
|
Unavailable |
|||
|
#20
BOLT, FLANGE (10X25)
95700-10025-00
Superseded by 95701-10025-00
|
$2.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, FLANGE (10X25)
95701-10025-00
|
$2.33 | ||
|
Unavailable |
|||
