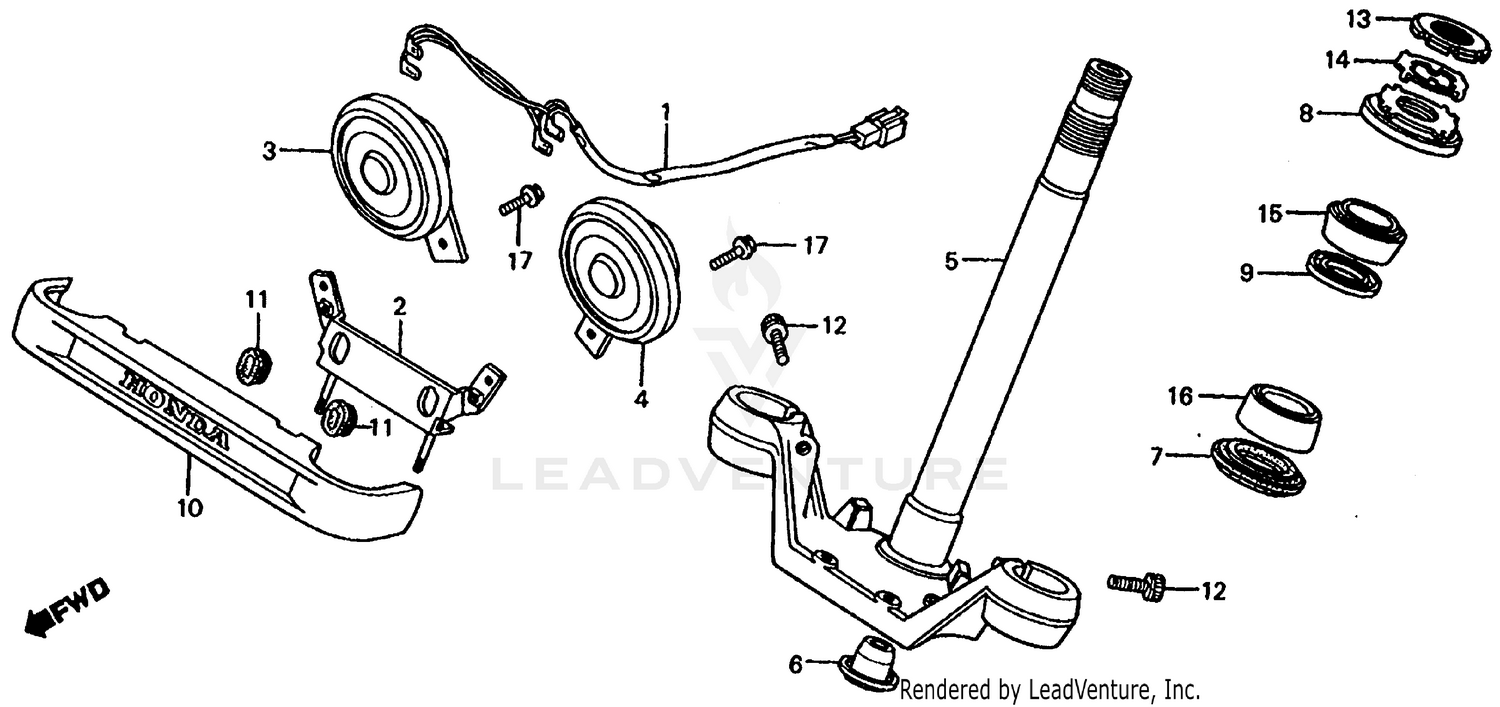

Steering Stem Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SUB-CABLE, HORN (NOT AVAILABLE)
32101-MG1-000
|
$14.33 | ||
|
Unavailable |
|||
|
#2
STAY, HORN (NOT AVAILABLE)
38102-MG1-000
|
$17.36 | ||
|
Unavailable |
|||
|
#3
HORN ASSY. (HIGH)
38110-MG1-004
Superseded by 38110-MJ1-831
|
$62.41 | ||
|
Unavailable |
|||
|
#3
HORN ASSY. (HIGH)
38110-MJ1-831
|
$62.41 | ||
|
Unavailable |
|||
|
#4
HORN ASSY. (LOW) (NOT AVAILABLE)
38120-MB1-700
Superseded by 38120-MB1-740
|
$61.08 | ||
|
Unavailable |
|||
|
#4
HORN ASSY. (LOW) (NOT AVAILABLE)
38120-MB1-740
|
$61.08 | ||
|
Unavailable |
|||
|
#5
STEM, STEERING (NOT AVAILABLE)
53200-MG1-000
|
$325.05 | ||
|
Unavailable |
|||
|
#6
CAP, STEERING STEM (NOT AVAILABLE)
53205-461-000
|
$3.16 | ||
|
Unavailable |
|||
|
#7
DUST SEAL, STEERING HEAD
53214-371-010
|
$15.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
THREAD, STEERING HEAD (UPPER)
53220-422-000
|
$39.67 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOLDER, GREASE
53223-371-010
|
$4.92 | ||
|
Unavailable |
|||
|
#10
COVER, FR. (NOT AVAILABLE)
61401-MG1-000
|
$19.83 | ||
|
Unavailable |
|||
|
#11
GROMMET, FR. COVER (NOT AVAILABLE)
83551-MG1-000
|
$2.28 | ||
|
Unavailable |
|||
|
#12
BOLT, SOCKET (10X30)
90152-MB0-000
|
$7.79 | ||
|
Unavailable |
|||
|
#12
BOLT, SOCKET (10X30)
90152-MB1-000
Superseded by 90152-MB0-000
|
$7.79 | ||
|
Unavailable |
|||
|
#13
THREAD, STEERING HEAD TOP (B)
90302-425-830
|
$26.33 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, LOCK
90506-425-830
|
$8.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BEARING, HEAD PIPE (UPPER) (NACHI)
91015-425-831
Superseded by 91015-425-832
|
$37.56 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BEARING, HEAD PIPE (UPPER) (NACHI)
91015-425-832
|
$37.56 | ||
|
Unavailable |
|||
|
#16
BEARING, HEAD PIPE (LOWER)
91016-371-000
|
$66.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X10)
95700-06010-00
Superseded by 95701-06010-00
|
$1.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X10)
95701-06010-00
|
$1.32 | ||
|
Unavailable |
|||
