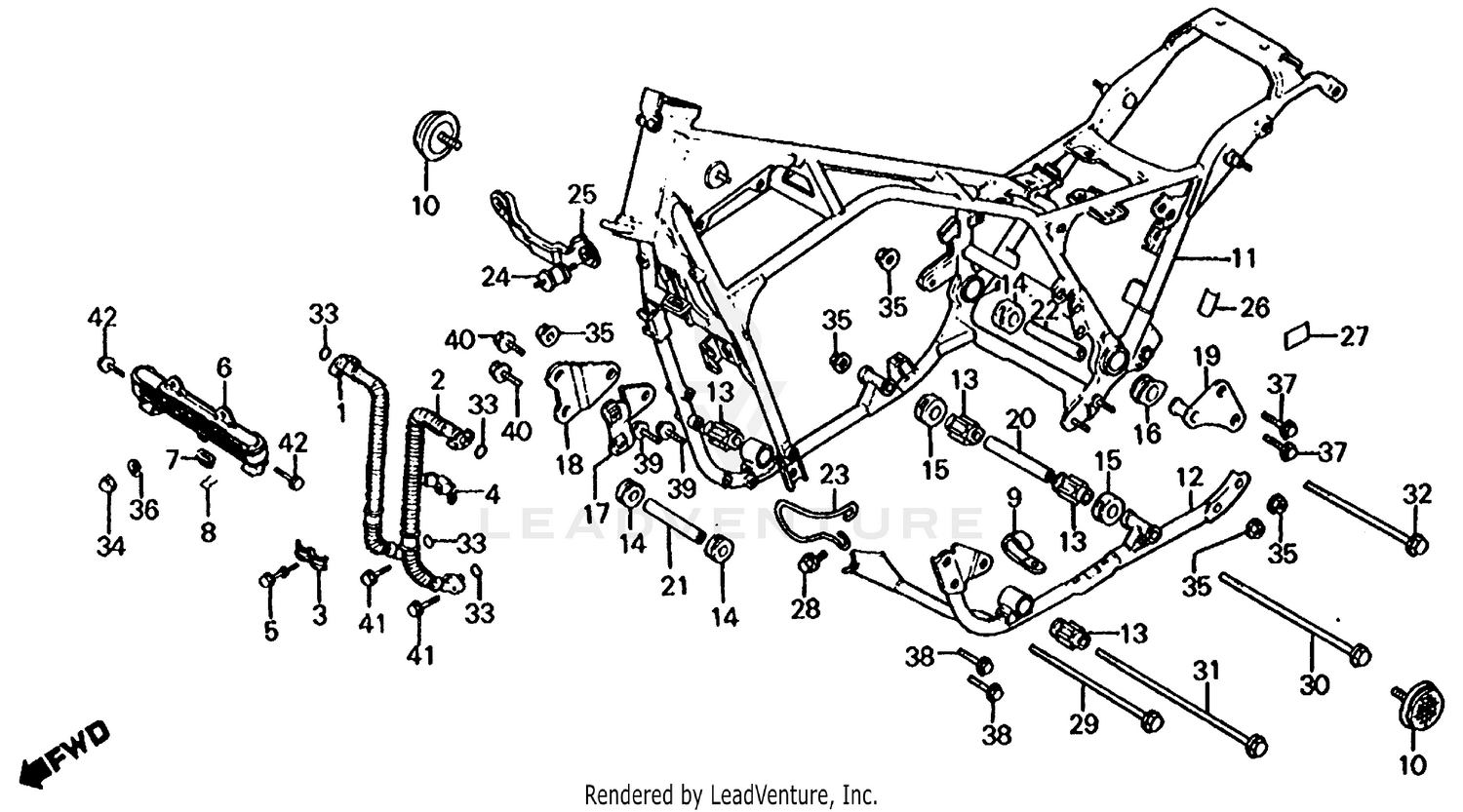

Frame + Oil Cooler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE, R. OIL (NOT AVAILABLE)
15510-MG1-000
|
$172.64 | ||
|
Unavailable |
|||
|
#2
HOSE, L. OIL
15515-MG1-000
|
$201.59 | ||
|
Unavailable |
|||
|
#3
HOLDER A, OIL HOSE (NOT AVAILABLE)
15526-438-000
|
$4.42 | ||
|
Unavailable |
|||
|
#4
HOLDER B, OIL HOSE (NOT AVAILABLE)
15527-438-000
|
$6.53 | ||
|
Unavailable |
|||
|
#5
BOLT, OIL HOSE HOLDER (NOT AVAILABLE)
15529-438-000
|
$5.02 | ||
|
Unavailable |
|||
|
#6
COOLER, OIL (NOT AVAILABLE)
15600-438-003
|
$216.67 | ||
|
Unavailable |
|||
|
#7
RUBBER, OIL COOLER SETTING (NOT AVAILABLE)
15617-438-000
|
$3.16 | ||
|
Unavailable |
|||
|
#8
PIN, OIL COOLER SETTING (NOT AVAILABLE)
15618-438-000
|
$2.88 | ||
|
Unavailable |
|||
|
#9
CLIP, IGNITION CABLE (NOT AVAILABLE)
32906-399-000
|
$1.97 | ||
|
Unavailable |
|||
|
#10
REFLECTOR, FR. REFLEX
33741-413-003
Superseded by 33742-HB9-641
|
$15.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
REFLECTOR, FR. REFLEX
33741-413-013
Superseded by 33742-HB9-641
|
$15.95 | ||
|
Unavailable |
|||
|
#10
REFLECTOR, FR. REFLEX
33742-HB9-641
|
$15.95 | ||
|
Unavailable |
|||
|
#11
FRAME *NH1* (BLACK)
50100-MG1-000ZA
|
$2,348.47 | ||
|
Unavailable |
|||
|
#12
PIPE, JOINT
50122-MG1-000
|
$310.01 | ||
|
Unavailable |
|||
|
#13
RUBBER A, ENGINE MOUNTING
50201-461-000
|
$20.79 | ||
|
Unavailable |
|||
|
#14
RUBBER B, ENGINE MOUNTING (NOT AVAILABLE)
50202-461-000
|
$9.57 | ||
|
Unavailable |
|||
|
#15
RUBBER C, ENGINE MOUNTING
50203-461-000
|
$11.79 | ||
|
Unavailable |
|||
|
#16
RUBBER D, ENGINE MOUNTING (NOT AVAILABLE)
50204-461-010
|
$10.95 | ||
|
Unavailable |
|||
|
#17
PLATE A, FR. ENGINE HANGER (NOT AVAILABLE)
50351-461-000
|
$23.26 | ||
|
Unavailable |
|||
|
#18
PLATE B, ENGINE HANGER (NOT AVAILABLE)
50352-461-000
|
$8.98 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE, RR. ENGINE HANGER (NOT AVAILABLE)
50356-461-000
|
$20.44 | ||
|
Unavailable |
|||
|
#20
COLLAR A, DISTANCE
50361-461-000
|
$10.61 | ||
|
Unavailable |
|||
|
#21
COLLAR B, DISTANCE (NOT AVAILABLE)
50362-461-000
|
$8.59 | ||
|
Unavailable |
|||
|
#22
COLLAR C, DISTANCE (NOT AVAILABLE)
50363-461-000
|
$6.53 | ||
|
Unavailable |
|||
|
#23
CLIP, WIRE HARNESS (NOT AVAILABLE)
50462-MG1-000
|
$7.31 | ||
|
Unavailable |
|||
|
#24
RUBBER, OIL COOLER SETTING
85201-438-000
|
$16.64 | ||
|
Available to order. Add to View Price |
|||
|
#25
PROTECTOR, WIRE HARNESS
85202-461-000
|
$10.93 | ||
|
Unavailable |
|||
|
#26
LABEL, RR. RUBBER CAUTION
87518-MB9-780
|
$4.32 | ||
|
Unavailable |
|||
|
#27
LABEL, OIL CAUTION (NOT AVAILABLE)
87519-461-670
|
$2.23 | ||
|
Unavailable |
|||
|
#28
BOLT, FLANGE (6X8) (NOT AVAILABLE)
90013-460-000
|
$1.24 | ||
|
Unavailable |
|||
|
#29
BOLT, ENGINE HANGER (10X266)
90151-461-000
|
$14.89 | ||
|
Unavailable |
|||
|
#30
BOLT, ENGINE HANGER (10X333) (NOT AVAILABLE)
90152-461-000
|
$14.72 | ||
|
Unavailable |
|||
|
#31
BOLT, ENGINE HANGER (10X374) (NOT AVAILABLE)
90153-461-000
|
$14.72 | ||
|
Unavailable |
|||
|
#32
BOLT, ENGINE HANGER (10X257)
90154-461-000
|
$17.22 | ||
|
Available to order. Add to View Price |
|||
|
#33
O-RING (15X2.5)
91301-MY9-003
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#33
O-RING (15X2.5)
91302-028-000
Superseded by 91301-MY9-003
|
$2.73 | ||
|
Unavailable |
|||
|
#34
NUT, CAP (6MM)
90301-KW8-900
Superseded by 94021-06070-0S
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
NUT, CAP (6MM)
94021-06070
Superseded by 94021-06070-0S
|
$1.70 | ||
|
Unavailable |
|||
|
#34
NUT, CAP (6MM)
94021-06070-0S
|
$1.70 | ||
|
Unavailable |
|||
|
#35
NUT, FLANGE (10MM)
94050-10000
|
$1.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
WASHER, PLAIN (6MM)
94101-06700
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, FLANGE (8X28)
95800-08028-00
Superseded by 95801-08028-00
|
$2.04 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, FLANGE (8X28)
95801-08028-00
|
$2.04 | ||
|
Unavailable |
|||
|
#38
BOLT, FLANGE (8X60)
95800-08060-00
Superseded by 95801-08060-00
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, FLANGE (10X45)
95800-10045-00
Superseded by 95801-10045-00
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, FLANGE (10X45)
95801-10045-00
|
$2.47 | ||
|
Unavailable |
|||
|
#40
BOLT, FLANGE (10X62)
90151-HC5-000
|
$9.74 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
BOLT, FLANGE (10X62)
95800-10065-00
Superseded by 90151-HC5-000
|
$9.74 | ||
|
Unavailable |
|||
|
#40
BOLT, FLANGE (10X62)
95801-10065-00
Superseded by 90151-HC5-000
|
$9.74 | ||
|
Unavailable |
|||
|
#41
BOLT, FLANGE (6X25)
96000-06025-00
|
$2.20 | ||
|
Unavailable |
|||
|
#41
BOLT, FLANGE (6X25)
96001-06025-00
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
BOLT, FLANGE (6X35)
96000-06035-07
Superseded by 96001-06035-07
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, FLANGE (6X35)
96001-06035-07
|
$2.27 | ||
|
Unavailable |
|||
