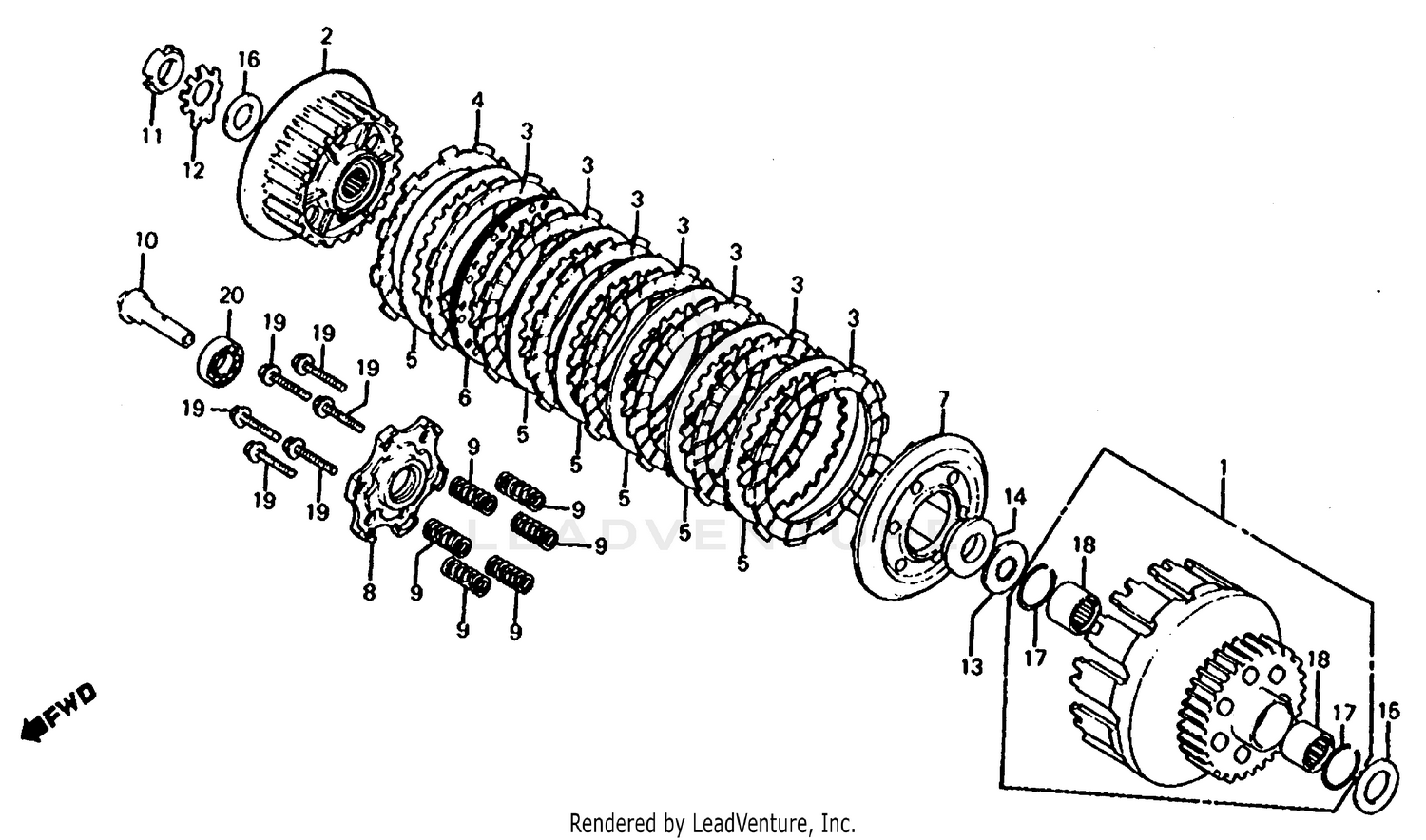

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH (OUTER)
22100-MA3-000
Superseded by 22100-MG5-670
|
$324.17 | ||
|
Unavailable |
|||
|
#1
CLUTCH (OUTER)
22100-MG5-670
|
$324.17 | ||
|
Unavailable |
|||
|
#2
CENTER, CLUTCH (NOT AVAILABLE)
22120-425-000
Superseded by 22120-MG5-670
|
$119.17 | ||
|
Unavailable |
|||
|
#3
DISK A, CLUTCH FRICTION
22201-MN5-020
Superseded by 22201-MT8-000
|
$24.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
DISK A, CLUTCH FRICTION
22201-MT8-000
|
$24.53 | ||
|
Unavailable |
|||
|
#3
DISK A, CLUTCH FRICTION
22201-425-000
Superseded by 22201-MT8-000
|
$24.53 | ||
|
Unavailable |
|||
|
#4
DISK B, CLUTCH FRICTION
22202-MT8-000
|
$24.53 | ||
|
Available to order. Add to View Price |
|||
|
#4
DISK B, CLUTCH FRICTION
22202-425-000
Superseded by 22202-MT8-000
|
$24.53 | ||
|
Unavailable |
|||
|
#5
PLATE, CLUTCH
22321-425-000
|
$34.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE B, CLUTCH
22322-425-000
|
$77.32 | ||
|
Unavailable |
|||
|
#7
PLATE, CLUTCH PRESSURE
22350-425-000
|
$61.11 | ||
|
Unavailable |
|||
|
#8
PLATE, CLUTCH LIFTER (NOT AVAILABLE)
22361-MG1-670
|
$41.75 | ||
|
Unavailable |
|||
|
#9
SPRING, CLUTCH
22401-MG1-670
Superseded by 22401-MG5-670
|
$5.18 | ||
|
Unavailable |
|||
|
#9
SPRING, CLUTCH
22401-MG5-670
|
$5.18 | ||
|
Unavailable |
|||
|
#10
GUIDE, CLUTCH LIFTER (NOT AVAILABLE)
22843-425-000
|
$20.44 | ||
|
Unavailable |
|||
|
#11
NUT, LOCK (16MM)
90231-KCS-651
|
$5.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
NUT, LOCK (16MM)
90231-200-010
Superseded by 90231-KCS-651
|
$5.27 | ||
|
Unavailable |
|||
|
#12
WASHER, SPRING (16MM)
90431-292-000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPLINE (23MM)
90432-371-000
Superseded by 90433-MB0-000
|
$17.58 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPLINE (23MM)
90433-MB0-000
|
$17.58 | ||
|
Unavailable |
|||
|
#14
COLLAR, CLUTCH (NOT AVAILABLE)
90432-425-000
|
$13.13 | ||
|
Unavailable |
|||
|
#15
WASHER A, THRUST (25MM) (NOT AVAILABLE)
90455-333-010
Superseded by 90466-MC7-000
|
$4.65 | ||
|
Unavailable |
|||
|
#16
WASHER (16MM) (NOT AVAILABLE)
90481-292-000
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP, BEARING STOPPER
90602-MA3-300
|
$2.52 | ||
|
Unavailable |
|||
|
#18
BEARING, NEEDLE (25X32X16) (NOT AVAILABLE)
91010-MA3-003
|
$25.82 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE (6X25)
95725-06025-00
|
$0.67 | ||
|
Unavailable |
|||
|
#20
BEARING, RADIAL BALL (6003)
96100-60030
Superseded by 96100-60030-00
|
$11.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BEARING, RADIAL BALL (6003)
96100-60030-00
|
$11.33 | ||
|
Unavailable |
|||
