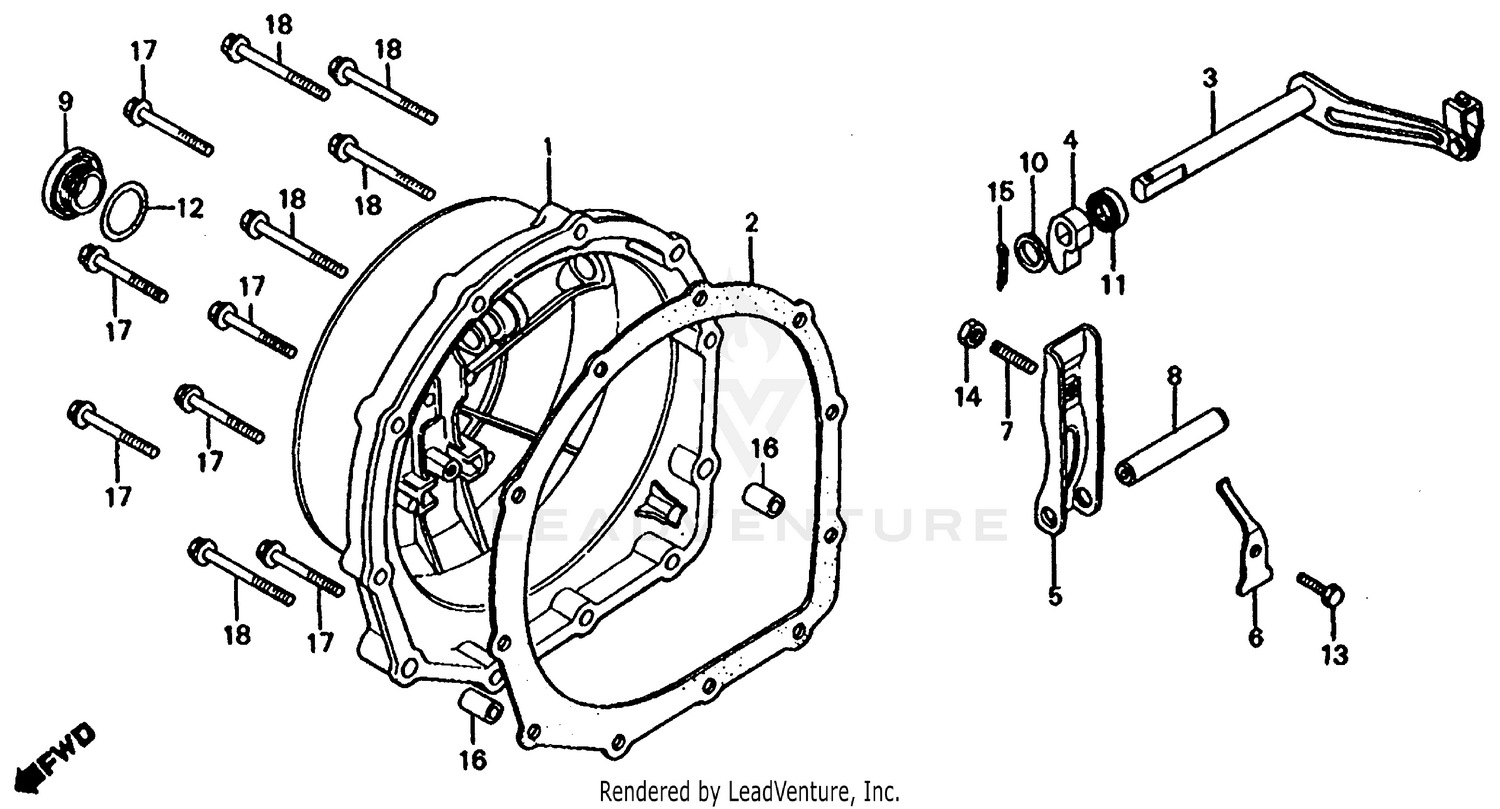

Clutch Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CLUTCH (NOT AVAILABLE)
11330-438-670
|
$305.55 | ||
|
Unavailable |
|||
|
#2
GASKET, CLUTCH COVER
11396-425-000
Superseded by 11396-425-306
|
$23.04 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CLUTCH COVER
11396-425-306
|
$23.04 | ||
|
Unavailable |
|||
|
#3
LEVER, CLUTCH (NOT AVAILABLE)
22710-461-000
|
$37.08 | ||
|
Unavailable |
|||
|
#4
CAM, CLUTCH LIFTER
22821-107-000
|
$5.18 | ||
|
Unavailable |
|||
|
#5
LEVER, CLUTCH ADJ.
22831-425-000
|
$17.87 | ||
|
Unavailable |
|||
|
#6
PLATE, CLUTCH LEVER SETTING (NOT AVAILABLE)
22835-425-000
|
$2.52 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BOLT, CLUTCH ADJUSTING (NOT AVAILABLE)
22841-425-000
|
$4.27 | ||
|
Unavailable |
|||
|
#8
SHAFT, STARTER REDUCTION GEAR (NOT AVAILABLE)
28106-422-000
|
$9.62 | ||
|
Unavailable |
|||
|
#9
CAP, CLUTCH ADJUSTING (NOT AVAILABLE)
90042-422-000
|
$14.47 | ||
|
Unavailable |
|||
|
#10
WASHER (10MM) (NOT AVAILABLE)
90471-333-000
|
$1.99 | ||
|
Unavailable |
|||
|
#11
OIL SEAL (10X16X4.5)
91206-425-003
Superseded by 91259-VM0-000
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL (10X16X4.5)
91259-VM0-000
|
$5.29 | ||
|
Unavailable |
|||
|
#12
O-RING (23.5X2.6)
91305-425-003
|
$4.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, HEX. (6X12)
92000-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, HEX. (6X12)
92101-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#13
BOLT, HEX. (6X12)
92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#14
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
NUT, HEX. (6MM)
94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#15
PIN, COTTER (2.0X15)
94201-20150
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
PIN A, DOWEL (8X14) (YAMADA)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X32)
96000-06032-00
Superseded by 96001-06032-00
|
$1.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X32)
96001-06032-00
|
$1.60 | ||
|
Unavailable |
|||
|
#18
BOLT, FLANGE (6X40)
96000-06040-00
Superseded by 96001-06040-00
|
$2.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X40)
96001-06040-00
|
$2.27 | ||
|
Unavailable |
|||
