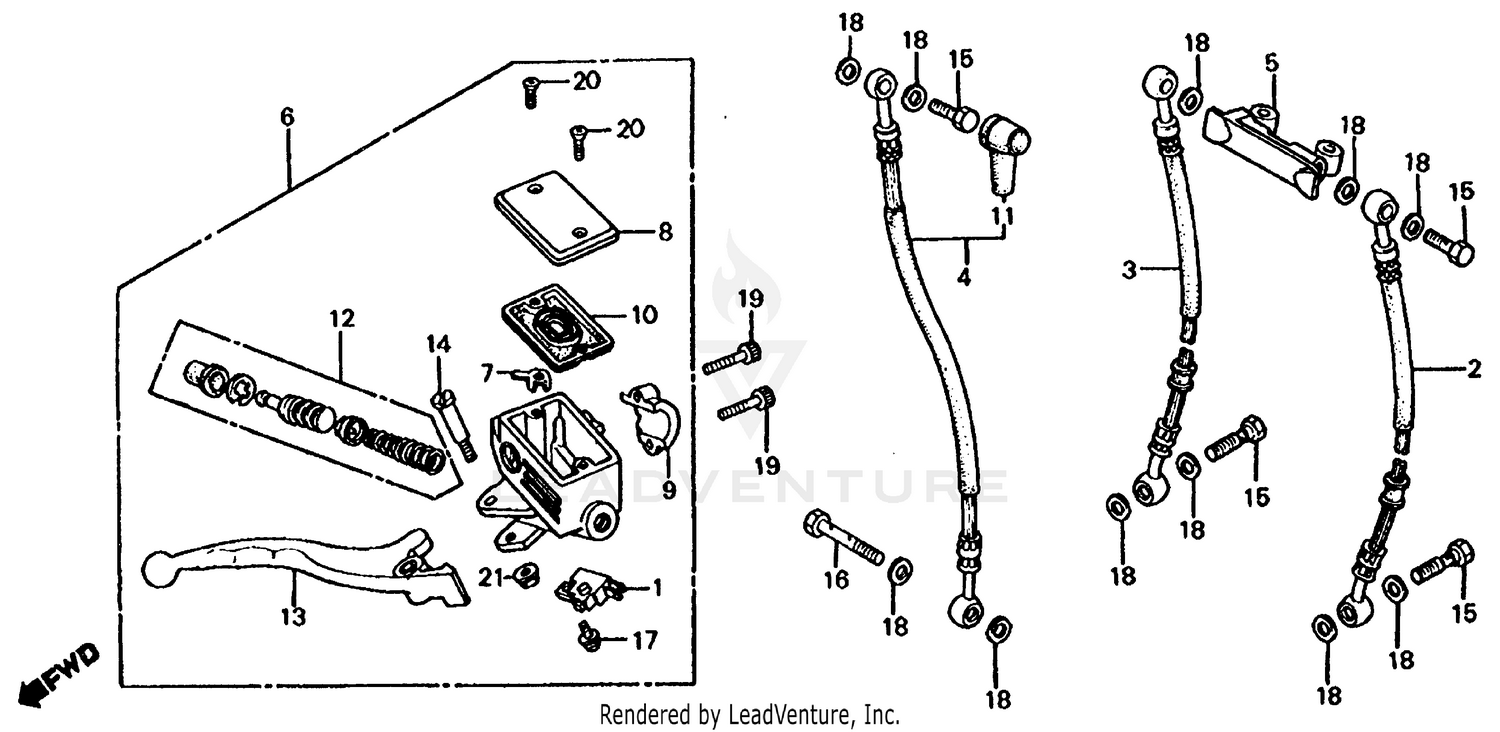

Front Brake Master + Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH ASSY., FR. STOP
35340-MA5-671
|
$29.67 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE, L. FR. BRAKE (NOT AVAILABLE)
45124-MB1-003
Superseded by 45124-MB1-013
|
$40.74 | ||
|
Unavailable |
|||
|
#2
HOSE, L. FR. BRAKE (NOT AVAILABLE)
45124-MB1-013
|
$40.74 | ||
|
Unavailable |
|||
|
#2
HOSE, L. FR. BRAKE (NOT AVAILABLE)
45124-MG1-003
|
$46.91 | ||
|
Unavailable |
|||
|
#3
HOSE, R. FR. BRAKE (NOT AVAILABLE)
45125-MB1-003
Superseded by 45125-MB1-013
|
$41.78 | ||
|
Unavailable |
|||
|
#3
HOSE, R. FR. BRAKE (NOT AVAILABLE)
45125-MB1-013
|
$41.78 | ||
|
Unavailable |
|||
|
#3
HOSE, R. FR. BRAKE (NOT AVAILABLE)
45125-MG1-003
|
$46.91 | ||
|
Unavailable |
|||
|
#4
HOSE B, FR. BRAKE
45126-MB1-003
Superseded by 45126-MB1-013
|
$48.06 | ||
|
Unavailable |
|||
|
#4
HOSE B, FR. BRAKE
45126-MB1-013
|
$48.06 | ||
|
Unavailable |
|||
|
#5
JOINT (TWO-WAY)
45127-MB1-000
|
$58.59 | ||
|
Unavailable |
|||
|
#6
MASTER CYLINDER ASSY., FR. BRAKE (NA USE ALT:45510-MB1-406)
45500-MB1-673
|
$199.34 | ||
|
Unavailable |
|||
|
#7
PROTECTOR
45512-MA6-006
|
$5.38 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
CAP
45540-MA6-621
|
$19.38 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOLDER, MASTER CYLINDER
45517-MB0-006
|
$17.61 | ||
|
Unavailable |
|||
|
#10
DIAPHRAGM
45520-MA5-671
Superseded by 45520-MA5-672
|
$21.96 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
DIAPHRAGM
45520-MA5-672
|
$21.96 | ||
|
Unavailable |
|||
|
#11
BOOT, MASTER CYLINDER
45522-422-000
|
$10.51 | ||
|
Available to order. Add to View Price |
|||
|
#12
MASTER CYLINDER SET
45530-MA5-671
|
$86.89 | ||
|
Available to order. Add to View Price |
|||
|
#13
LEVER, R. HANDLE
53175-MB0-006
Superseded by 53175-MK7-671
|
$21.67 | ||
|
Available to order. Add to View Price |
|||
|
#13
LEVER, R. HANDLE
53175-MB1-006
Superseded by 53175-MK7-671
|
$21.67 | ||
|
Unavailable |
|||
|
#13
LEVER, R. HANDLE
53175-MJ6-006
Superseded by 53175-MK7-671
|
$21.67 | ||
|
Unavailable |
|||
|
#14
BOLT, R. HANDLEBAR PIVOT
90114-MA5-671
|
$11.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, OIL
90145-300-000
Superseded by 90145-300-010
|
$11.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, OIL
90145-300-010
|
$11.73 | ||
|
Unavailable |
|||
|
#15
BOLT, OIL
90145-961-000
Superseded by 90145-300-010
|
$11.73 | ||
|
Unavailable |
|||
|
#16
BOLT, OIL (10X34)
90145-MB0-000
Superseded by 90145-MB0-010
|
$9.91 | ||
|
Unavailable |
|||
|
#16
BOLT, OIL (10X34)
90145-MB0-010
|
$9.91 | ||
|
Unavailable |
|||
|
#17
SCREW, PAN (4X13.5) (NOT AVAILABLE)
90183-422-000
|
$2.65 | ||
|
Unavailable |
|||
|
#18
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT-WASHER (6X25)
93401-06025-07
|
$3.78 | ||
|
Unavailable |
|||
|
#19
BOLT-WASHER (6X25)
93481-06025-07
Superseded by 93401-06025-07
|
$3.78 | ||
|
Unavailable |
|||
|
#20
SCREW, FLAT (4X12)
93600-04012-0G
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
SCREW, FLAT (4X12)
93600-04012-1G
Superseded by 93600-04012-0G
|
$0.95 | ||
|
Unavailable |
|||
|
#21
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
