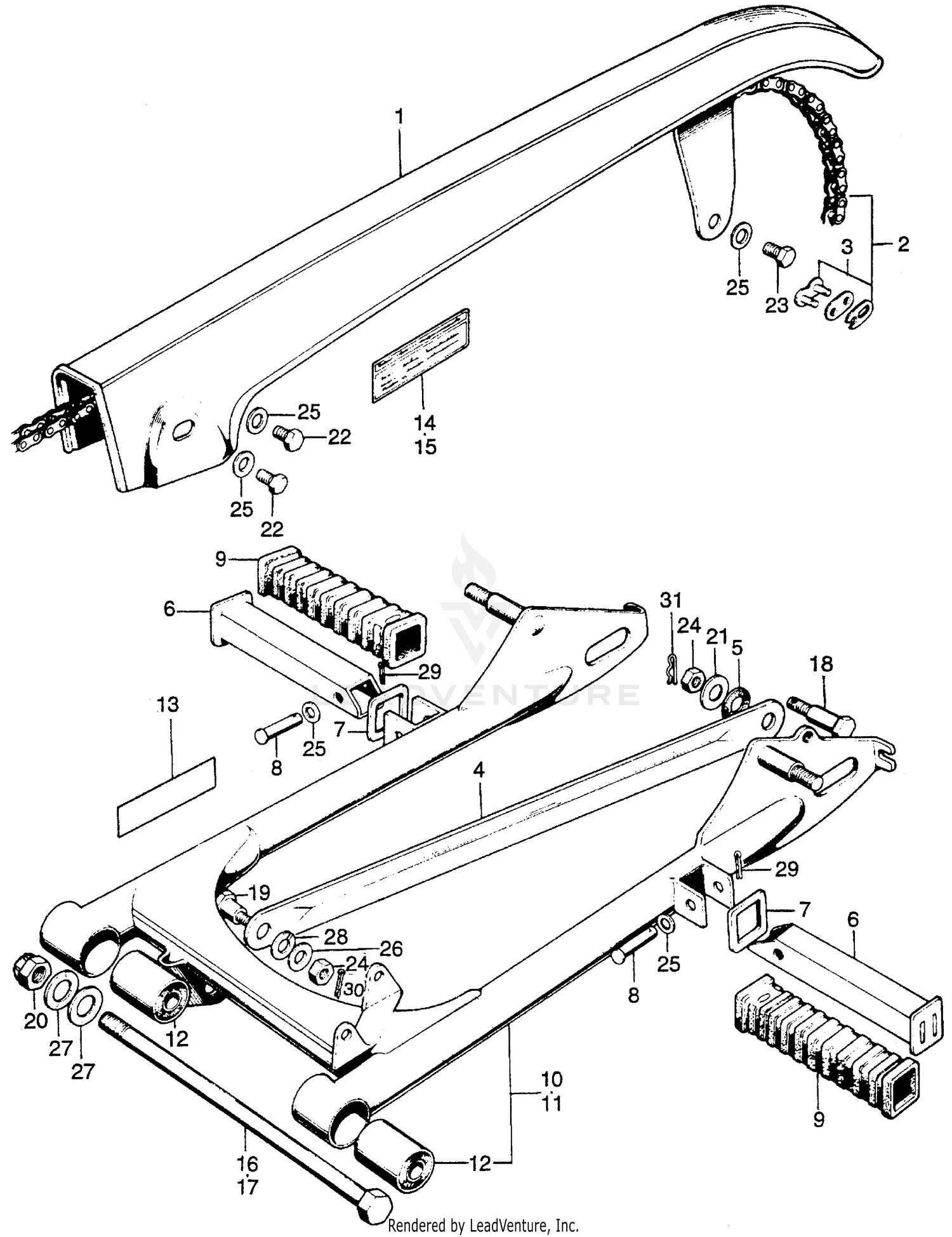

Swingarm + Chain Case Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CASE, DRIVE CHAIN
40510-107-010XW
Superseded by 40510-397-960
|
$56.65 | ||
|
Unavailable |
|||
|
#1
CASE, DRIVE CHAIN
40510-383-670XW
Superseded by 40510-397-960
|
$56.65 | ||
|
Unavailable |
|||
|
#1
CASE, DRIVE CHAIN
40510-397-960
|
$56.65 | ||
|
Unavailable |
|||
|
#2
CHAIN, DRIVE (104L) (DAIDO)
40530-028-611
Superseded by 405W3-KA8-505
|
$51.71 | ||
|
Unavailable |
|||
|
#2
CHAIN, DRIVE (104L) (DAIDO)
40530-107-003
Superseded by 405W3-KA8-505
|
$51.71 | ||
|
Unavailable |
|||
|
#2
CHAIN, DRIVE (104L) (DAIDO)
40530-107-013
Superseded by 405W3-KA8-505
|
$51.71 | ||
|
Unavailable |
|||
|
#2
CHAIN, DRIVE (104L) (DAIDO)
40530-397-821
Superseded by 405W3-KA8-505
|
$51.71 | ||
|
Unavailable |
|||
|
#2
CHAIN, DRIVE (104L) (DAIDO)
405W3-KA8-505
|
$51.71 | ||
|
Unavailable |
|||
|
#3
MASTER LINK
40531-205-003
Superseded by 40531-205-013
|
$3.42 | ||
|
Available to order. Add to View Price |
|||
|
#3
MASTER LINK (TAKASAGO) (NOT AVAILABLE)
40531-205-005
Superseded by 40531-028-005
|
$3.71 | ||
|
Unavailable |
|||
|
#3
MASTER LINK
40531-205-013
|
$3.42 | ||
|
Unavailable |
|||
|
#3
MASTER LINK
40531-216-003
Superseded by 40531-205-013
|
$3.42 | ||
|
Unavailable |
|||
|
#3
MASTER LINK (TAKASAGO) (NOT AVAILABLE)
40531-028-005
|
$3.71 | ||
|
Unavailable |
|||
|
#4
ARM, RR. BRAKE STOPPER (NOT AVAILABLE)
43431-107-010
|
$9.38 | ||
|
Unavailable |
|||
|
#5
RUBBER, STOPPER ARM CUSHION
43434-286-000
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAR B, PILLION STEP
50701-024-010
Superseded by 95015-62000
|
$40.02 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAR B, PILLION STEP
50715-283-000
Superseded by 95015-62000
|
$40.02 | ||
|
Unavailable |
|||
|
#6
BAR B, PILLION STEP
95015-62000
|
$40.02 | ||
|
Unavailable |
|||
|
#7
WASHER, FOOTPEG
50712-024-000
Superseded by 95015-91000
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, FOOTPEG
95015-91000
|
$1.49 | ||
|
Unavailable |
|||
|
#8
PIN A, PILLION STEP
50715-024-000
Superseded by 95015-81000
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN A, PILLION STEP
95015-81000
|
$2.53 | ||
|
Unavailable |
|||
|
#9
RUBBER, PILLION STEP
50731-024-000
Superseded by 95011-31000
|
$8.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
RUBBER, PILLION STEP
95011-31000
|
$8.69 | ||
|
Unavailable |
|||
|
#10
SWINGARM, RR. *NH1* (BLACK) (NOT AVAILABLE)
52100-107-610B
|
$411.95 | ||
|
Unavailable |
|||
|
#12
BUSH, SWINGARM PIVOT
52108-028-000
Superseded by 52147-028-300
|
$21.69 | ||
|
Available to order. Add to View Price |
|||
|
#12
BUSH, SWINGARM PIVOT
52147-028-300
|
$21.69 | ||
|
Unavailable |
|||
|
#13
LABEL, MUFFLER CAUTION
87504-028-670
|
$3.64 | ||
|
Available to order. Add to View Price |
|||
|
#14
MARK, TIRE CAUTION (NOT AVAILABLE)
87505-107-780
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, RR. SWINGARM PIVOT
90121-KE6-830
|
$14.87 | ||
|
Unavailable |
|||
|
#16
BOLT, RR. SWINGARM PIVOT
90121-107-780
Superseded by 90121-KE6-830
|
$14.87 | ||
|
Unavailable |
|||
|
#18
BOLT, RR. BRAKE STOPPER
90127-001-010
Superseded by 90127-400-000
|
$10.78 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, RR. BRAKE STOPPER
90127-400-000
|
$10.78 | ||
|
Unavailable |
|||
|
#19
BOLT, RR. BRAKE STOPPER ARM
90133-028-010
|
$2.86 | ||
|
Unavailable |
|||
|
#20
NUT, SELF-LOCK (12MM)
90353-045-000
|
$7.53 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER A, HANDLE HOLDER SETTING
90524-030-000
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEX. (6X6)
92000-06006
Superseded by 92101-06006-0A
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEX. (6X6)
92000-06006-0A
Superseded by 92101-06006-0A
|
$1.52 | ||
|
Unavailable |
|||
|
#22
BOLT, HEX. (6X6)
92101-06006-0A
|
$1.52 | ||
|
Unavailable |
|||
|
#23
BOLT, HEX. (6X12)
92000-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT, HEX. (6X12)
92101-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#23
BOLT, HEX. (6X12)
92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#24
NUT, HEX. (8MM)
94001-08000-0S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#25
WASHER, PLAIN (6MM)
94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#26
WASHER, PLAIN (8MM)
94101-08000
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
WASHER, PLAIN (12MM)
94101-12000
|
$1.28 | ||
|
Unavailable |
|||
|
#28
WASHER, SPRING (8MM)
94111-10000
|
$1.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
PIN, COTTER (1.6X25)
94201-16150
Superseded by 94201-16250
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
PIN, COTTER (1.6X25)
94201-16250
|
$1.08 | ||
|
Unavailable |
|||
|
#30
PIN, COTTER (2.0X15)
94201-20150
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
PIN, LOCK (8MM)
94251-08000
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
