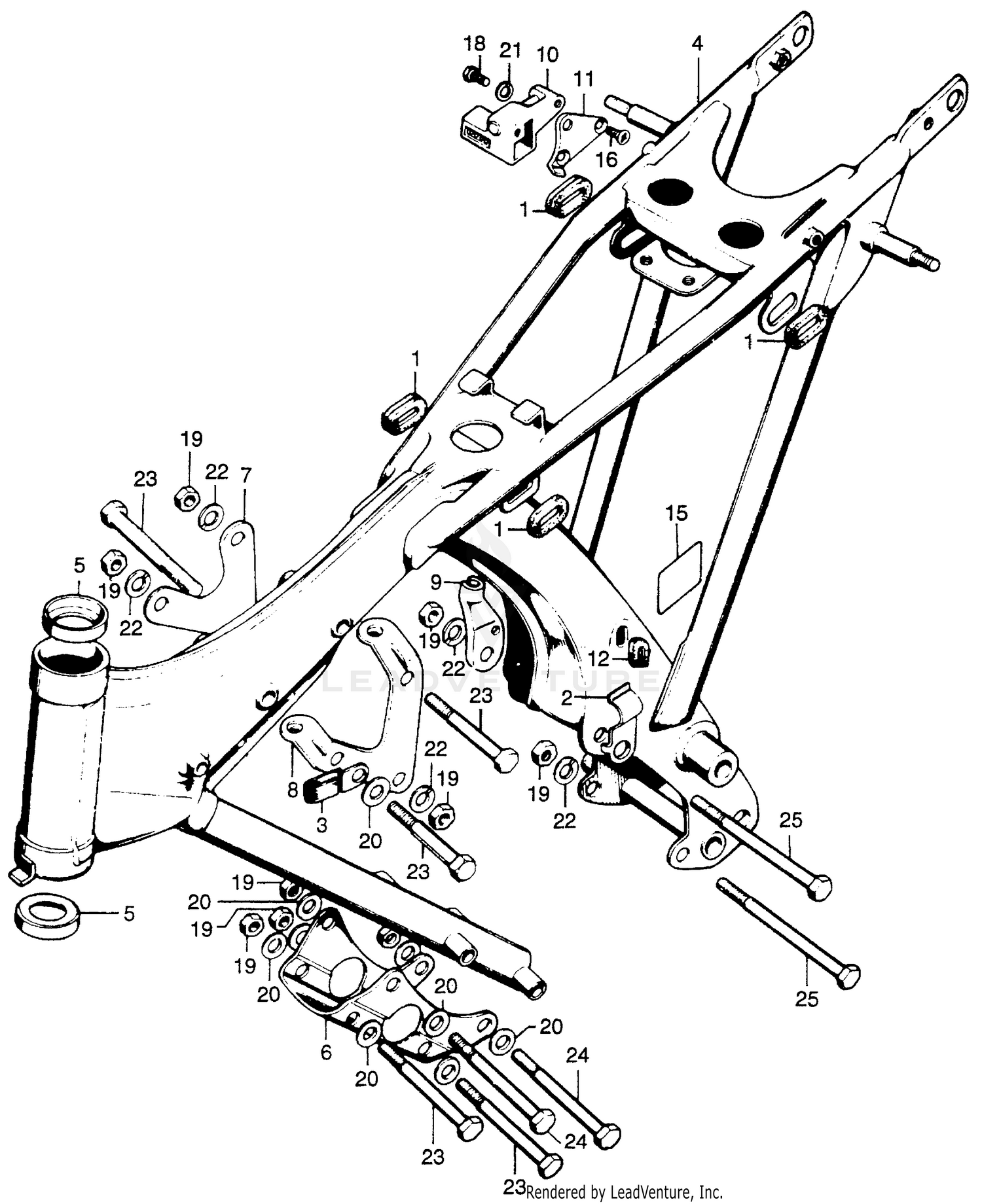

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GROMMET A, AIR CLEANER HOUSING
17247-303-000
|
$10.20 | ||
|
Available to order. Add to View Price |
|||
|
#1
GROMMET A, AIR CLEANER HOUSING
95020-52030
Superseded by 17247-303-000
|
$10.20 | ||
|
Unavailable |
|||
|
#2
CLIP, ALTERNATOR WIRE
32907-331-000
|
$1.48 | ||
|
Unavailable |
|||
|
#3
CLIP, COMBINATION SWITCH WIRE (NOT AVAILABLE)
32908-107-700
|
$2.24 | ||
|
Unavailable |
|||
|
#4
FRAME *NH1* (BLACK)
50100-107-781B
|
$1,166.56 | ||
|
Unavailable |
|||
|
#5
RACE, STEERING BALL
50301-041-000
Superseded by 50301-041-010
|
$15.02 | ||
|
Available to order. Add to View Price |
|||
|
#5
RACE, STEERING TOP BALL
50301-041-010
|
$15.02 | ||
|
Unavailable |
|||
|
#5
RACE, STEERING BALL
50301-041-305
Superseded by 50301-041-010
|
$15.02 | ||
|
Unavailable |
|||
|
#6
PLATE, FR. ENGINE HANGER *NH1* (BLACK)
50351-107-010B
|
$25.31 | ||
|
Unavailable |
|||
|
#7
PLATE, R. ENGINE HANGER (UPPER) (NOT AVAILABLE)
50353-107-000
|
$5.49 | ||
|
Unavailable |
|||
|
#8
PLATE, L. ENGINE HANGER (UPPER) (NOT AVAILABLE)
50354-107-010
Superseded by 50354-330-000
|
$21.03 | ||
|
Unavailable |
|||
|
#8
PLATE, L. ENGINE HANGER (UPPER) (NOT AVAILABLE)
50354-330-000
|
$21.03 | ||
|
Unavailable |
|||
|
#9
RECEIVER, CLUTCH CABLE (NOT AVAILABLE)
50356-107-000
|
$3.17 | ||
|
Unavailable |
|||
|
#10
HOLDER ASSY., HELMET (HONDALOCK)
50710-086-007
|
$80.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOLDER ASSY., HELMET (HONDALOCK)
50710-110-701
Superseded by 50710-086-007
|
$80.35 | ||
|
Unavailable |
|||
|
#11
STAY, HELMET HOLDER (NOT AVAILABLE)
50720-107-700
|
$6.02 | ||
|
Unavailable |
|||
|
#12
GROMMET, AIR CLEANER HOUSING
83551-300-000
|
$4.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
MARK, BATTERY CAUTION (NOT AVAILABLE)
87506-107-781
|
$2.63 | ||
|
Unavailable |
|||
|
#16
SCREW, U-LOCK FLAT (6X12)
90164-028-000
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HEX. (6X12)
92000-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, HEX. (6X12)
92101-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#18
BOLT, HEX. (6X12)
92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#19
NUT, HEX. (8MM)
94030-08000
|
$1.12 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLAIN (8MM)
94101-08000
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
WASHER, SPRING (6MM)
94111-06000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
WASHER, SPRING (8MM)
94111-08000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT, HEX. (8X70)
95300-08070
Superseded by 95301-08070-00
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEX. (8X70)
95300-08070-00
Superseded by 95301-08070-00
|
$2.72 | ||
|
Unavailable |
|||
|
#24
BOLT, HEX. (8X90) (NOT AVAILABLE)
95300-08090
Superseded by 95300-08090-00
|
$1.24 | ||
|
Unavailable |
|||
|
#24
BOLT, HEX. (8X90) (NOT AVAILABLE)
95300-08090-00
|
$1.24 | ||
|
Unavailable |
|||
|
#25
BOLT, HEX. (8X111)
95300-08111
Superseded by 95300-08111-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, HEX. (8X111)
95300-08111-00
|
$3.65 | ||
|
Unavailable |
|||
