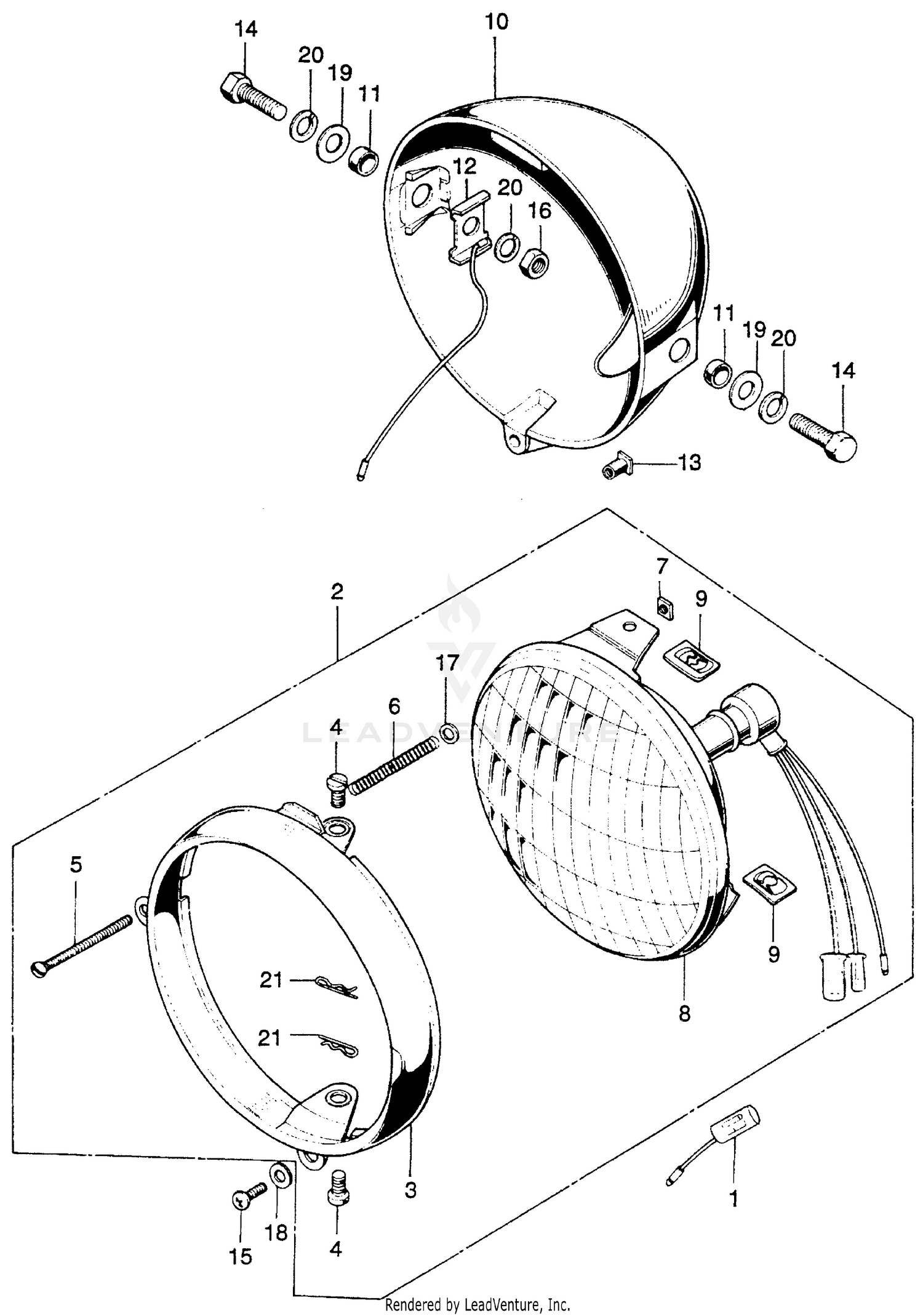

Headlight + Headlight Case Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SUB-WIRE, TURN SIGNAL (NOT AVAILABLE)
32102-107-000
|
$3.01 | ||
|
Unavailable |
|||
|
#2
HEADLIGHT ASSY. (NOT AVAILABLE)
33100-243-670
Superseded by 33100-243-672
|
$60.08 | ||
|
Unavailable |
|||
|
#2
HEADLIGHT ASSY. (NOT AVAILABLE)
33100-243-672
|
$60.08 | ||
|
Unavailable |
|||
|
#3
RIM, HEADLIGHT
33101-243-670
|
$40.62 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, UNIT HOLDER (NOT AVAILABLE)
33102-283-000
|
$3.34 | ||
|
Unavailable |
|||
|
#5
SCREW, HEADLIGHT BEAM ADJ.
33103-200-020
|
$2.23 | ||
|
Unavailable |
|||
|
#6
SPRING, HEADLIGHT BEAM ADJUSTING
33107-200-023
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, HEADLIGHT BEAM ADJ. (NOT AVAILABLE)
33117-200-023
|
$1.19 | ||
|
Unavailable |
|||
|
#8
HEADLIGHT UNIT (6V35/25W)
33120-243-670
Superseded by 33120-243-672
|
$75.56 | ||
|
Available to order. Add to View Price |
|||
|
#8
HEADLIGHT UNIT (6V35/25W)
33120-243-672
|
$75.56 | ||
|
Unavailable |
|||
|
#9
NUT, UNIT HOLDER
33128-200-033
|
$1.93 | ||
|
Unavailable |
|||
|
#10
CASE, HEADLIGHT *NH1* (BLACK)
61301-105-000B
Superseded by 61301-391-000ZB
|
$39.61 | ||
|
Unavailable |
|||
|
#10
CASE, HEADLIGHT *NH1* (BLACK)
61301-391-000B
Superseded by 61301-391-000ZB
|
$39.61 | ||
|
Unavailable |
|||
|
#10
CASE, HEADLIGHT *NH1* (BLACK)
61301-391-000ZB
|
$39.61 | ||
|
Unavailable |
|||
|
#11
COLLAR, HEADLIGHT CASE
61302-229-300
|
$2.04 | ||
|
Unavailable |
|||
|
#12
WASHER, HEADLIGHT CASE (NOT AVAILABLE)
61303-074-000
|
$2.09 | ||
|
Unavailable |
|||
|
#13
NUT, HEADLIGHT SETTING
61308-229-310
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEX. (8X25)
92000-08025-0B
Superseded by 92101-08025-0B
|
$2.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEX. (8X25)
92101-08025-0B
|
$2.04 | ||
|
Unavailable |
|||
|
#15
SCREW, PAN (5X12)
93500-05012-0A
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
NUT, HEX. (8MM)
94001-08000-0S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLAIN (4MM)
94101-04000
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLAIN (5MM)
94101-05000
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLAIN (8MM)
94101-08000
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
WASHER, SPRING (8MM)
94111-08000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
PIN, LOCK (5MM)
94251-05000
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
