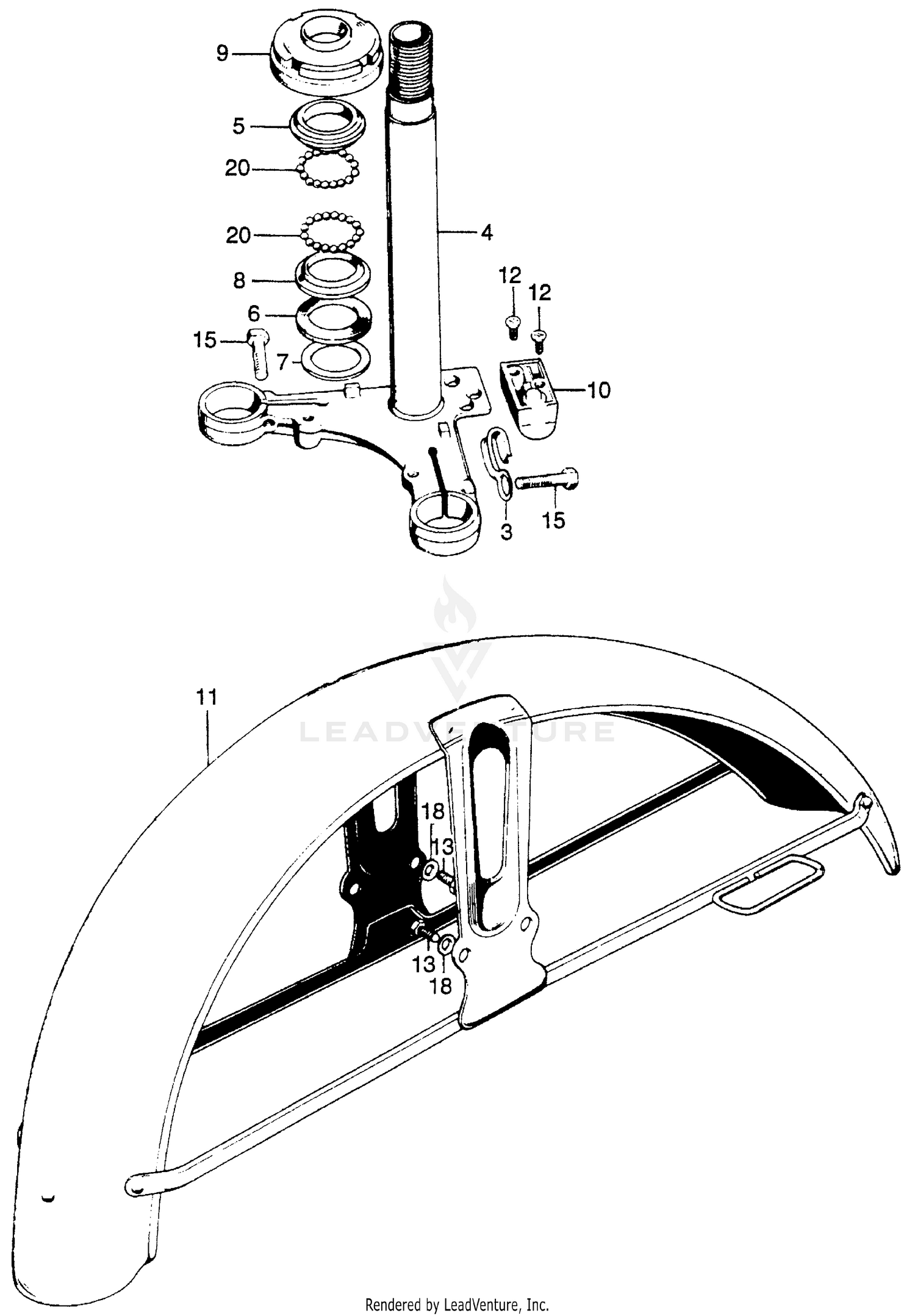

Cb100 Steering Stem + Front Fender K2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#3
CLIP, FR. BRAKE CABLE
45465-028-000
|
$5.28 | ||
|
Unavailable |
|||
|
#4
STEM, STEERING *NH1* (BLACK)
53200-028-000B
Superseded by 53200-028-000ZG
|
$137.94 | ||
|
Unavailable |
|||
|
#4
STEM, STEERING *NH1* (BLACK)
53200-028-000ZG
|
$137.94 | ||
|
Unavailable |
|||
|
#5
RACE, STEERING TOP CONE
53211-028-000
Superseded by 53211-028-010
|
$13.44 | ||
|
Available to order. Add to View Price |
|||
|
#5
RACE, STEERING CONE (UPPER)
53211-028-010
|
$13.44 | ||
|
Unavailable |
|||
|
#5
RACE, STEERING TOP CONE
53211-028-305
Superseded by 53211-028-010
|
$13.44 | ||
|
Unavailable |
|||
|
#6
DUST SEAL, STEERING HEAD
53214-001-010
Superseded by 53214-GJG-C20
|
$2.96 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, STEERING HEAD DUST SEAL
53215-001-000
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
RACE, STEERING CONE (LOWER)
53212-030-000
Superseded by 53212-030-010
|
$13.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
RACE, STEERING CONE (LOWER)
53212-030-010
|
$13.00 | ||
|
Unavailable |
|||
|
#8
RACE, STEERING CONE (LOWER)
53212-937-000
Superseded by 53212-030-010
|
$13.00 | ||
|
Unavailable |
|||
|
#8
RACE, STEERING CONE (LOWER)
53217-030-305
Superseded by 53212-030-010
|
$13.00 | ||
|
Unavailable |
|||
|
#9
THREAD, STEERING HEAD TOP
53220-074-000
|
$19.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
SWITCH, HANDLE LOCK (NOT AVAILABLE)
35010-001-010
|
$197.53 | ||
|
Unavailable |
|||
|
#10
SWITCH, HANDLE LOCK (NOT AVAILABLE)
53600-001-020
Superseded by 35010-001-010
|
$197.53 | ||
|
Unavailable |
|||
|
#11
FENDER, FR. *MRCR2* (CHROME PLATING) (NOT AVAILABLE)
61100-107-671XW
|
$210.97 | ||
|
Unavailable |
|||
|
#12
SCREW, U-LOCK FLAT (6X12)
90164-028-000
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEX. (6X12)
92000-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEX. (6X12)
92101-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#13
BOLT, HEX. (6X12)
92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#15
BOLT, HEX. (8X32)
92000-08032-0A
Superseded by 92101-08032-0B
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEX. (8X32)
92000-08032-0B
Superseded by 92101-08032-0B
|
$2.50 | ||
|
Unavailable |
|||
|
#15
BOLT, HEX. (8X32)
92101-08032-0B
|
$2.50 | ||
|
Unavailable |
|||
|
#18
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#18
WASHER, PLAIN (6MM)
94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#20
BALL, STEEL (#6) (3/16)
96211-06000
|
$0.53 | ||
|
Available to order. Add to View Price |
|||
