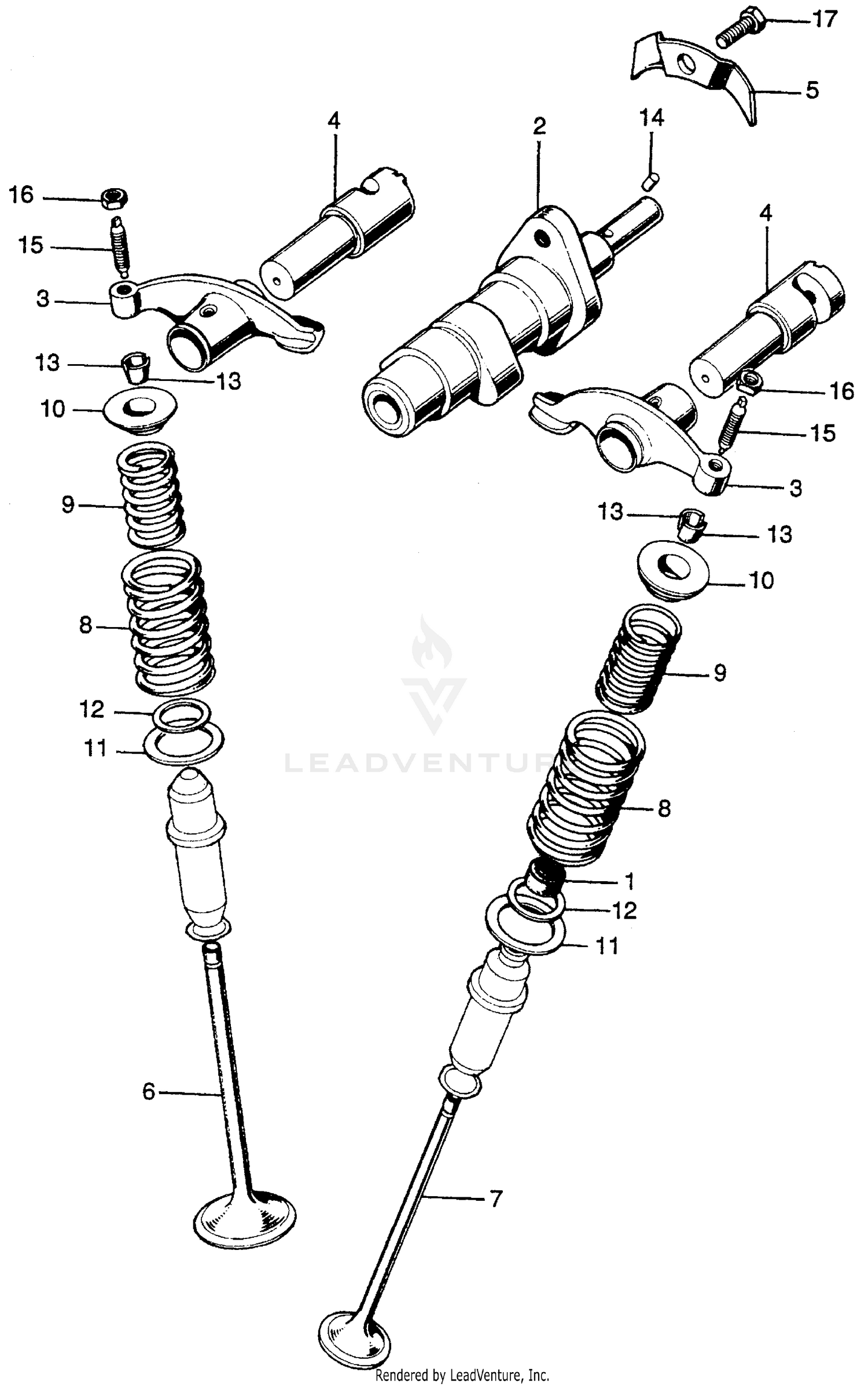

Camshaft + Valve Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAL, VALVE STEM (ARAI)
12208-MC0-003
Superseded by 12208-413-003
|
$13.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1
SEAL, VALVE STEM (ARAI)
12208-413-003
|
$13.78 | ||
|
Unavailable |
|||
|
#1
SEAL, VALVE STEM (ARAI)
12209-107-760
Superseded by 12208-413-003
|
$13.78 | ||
|
Unavailable |
|||
|
#2
CAMSHAFT (NOT AVAILABLE)
14101-107-020
Superseded by 14101-324-000
|
$77.28 | ||
|
Unavailable |
|||
|
#3
ARM, VALVE ROCKER
14431-324-000
|
$52.34 | ||
|
Unavailable |
|||
|
#4
SHAFT, VALVE ROCKER ARM
14451-107-000
|
$31.87 | ||
|
Unavailable |
|||
|
#5
PLATE, VALVE ROCKER ARM SHAFT SETTING (NOT AVAILABLE)
14456-107-010
|
$2.82 | ||
|
Unavailable |
|||
|
#6
VALVE, IN.
14711-107-020
|
$40.21 | ||
|
Unavailable |
|||
|
#7
VALVE, EX.
14721-324-000
Superseded by 14721-324-010
|
$65.68 | ||
|
Unavailable |
|||
|
#7
VALVE, EX.
14721-324-010
|
$65.68 | ||
|
Unavailable |
|||
|
#7
VALVE, EX.
14721-324-010
|
$65.68 | ||
|
Unavailable |
|||
|
#8
SPRING, VALVE (OUTER)
14751-324-000
|
$9.23 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, VALVE (INNER)
14761-324-000
|
$4.73 | ||
|
Unavailable |
|||
|
#10
RETAINER, VALVE SPRING
14771-107-020
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAT, VALVE SPRING (OUTER)
14775-107-000
|
$5.13 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAT, VALVE SPRING (INNER)
14776-107-010
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#13
COTTER, VALVE (SANKO)
14781-107-003
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
COTTER, VALVE (SANKO)
14781-107-020
Superseded by 14781-107-003
|
$3.05 | ||
|
Unavailable |
|||
|
#14
PIN, CAMSHAFT (3X5.2)
30905-216-000
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, TAPPET ADJ.
90012-324-000
Superseded by 90012-415-000
|
$7.25 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, TAPPET ADJ.
90012-415-000
|
$7.25 | ||
|
Unavailable |
|||
|
#16
NUT, TAPPET ADJ.
90206-250-000
|
$3.68 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEX. (6X10)
92000-06010
Superseded by 92101-06010-0A
|
$1.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, HEX. (6X10)
92101-06010-0A
|
$1.47 | ||
|
Unavailable |
|||
