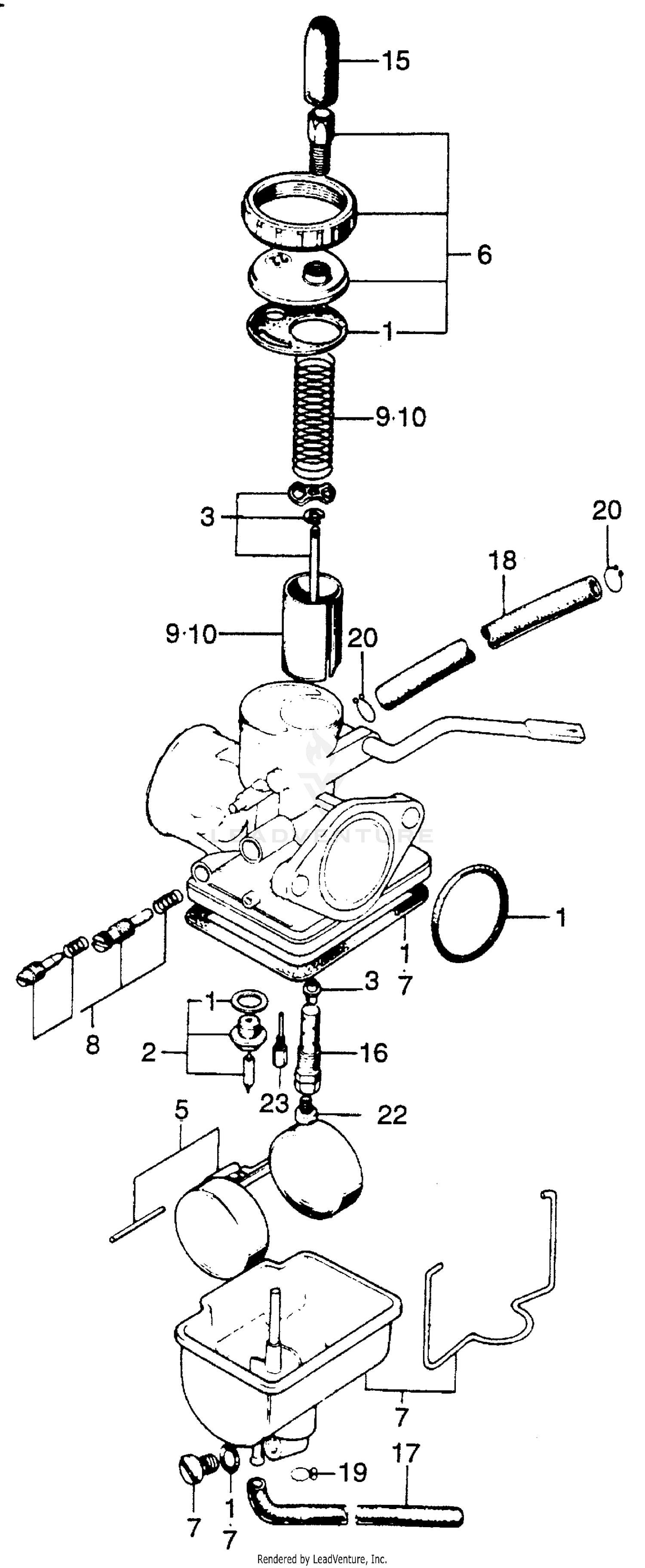

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET
16010-107-305
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#1
GASKET SET
16010-107-710
Superseded by 16010-107-305
|
$15.44 | ||
|
Unavailable |
|||
|
#2
VALVE SET, FLOAT
16011-302-004
Superseded by 16011-375-004
|
$35.09 | ||
|
Available to order. Add to View Price |
|||
|
#2
VALVE SET, FLOAT
16011-375-004
|
$35.09 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET, JET (NOT AVAILABLE)
16012-107-710
|
$20.59 | ||
|
Unavailable |
|||
|
#5
FLOAT SET
16013-286-014
|
$39.13 | ||
|
Available to order. Add to View Price |
|||
|
#6
TOP SET (NOT AVAILABLE)
16014-107-711
|
$19.40 | ||
|
Unavailable |
|||
|
#7
CHAMBER SET A, FLOAT (NOT AVAILABLE)
16015-107-710
|
$86.58 | ||
|
Unavailable |
|||
|
#8
SCREW SET A
16016-KJ2-671
|
$15.89 | ||
|
Unavailable |
|||
|
#8
SCREW SET A
16016-035-004
Superseded by 16016-KJ2-671
|
$15.89 | ||
|
Unavailable |
|||
|
#9
VALVE SET, THROTTLE
16022-107-710
|
$32.24 | ||
|
Unavailable |
|||
|
#11
CARBURETOR ASSY. (NOT AVAILABLE)
16100-107-760
Superseded by 16100-107-761
|
$243.85 | ||
|
Unavailable |
|||
|
#11
CARBURETOR ASSY. (NOT AVAILABLE)
16100-107-761
|
$243.85 | ||
|
Unavailable |
|||
|
#15
CAP, CABLE SEALING
16118-086-004
Superseded by 16118-166-004
|
$10.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP, CABLE SEALING
16118-166-004
|
$10.15 | ||
|
Unavailable |
|||
|
#16
HOLDER, NEEDLE JET (NOT AVAILABLE)
16139-107-710
|
$12.70 | ||
|
Unavailable |
|||
|
#17
BULK HOSE, FUEL (3.5X3000) (3.5X330)
95001-35003-60M
|
$25.27 | ||
|
Available to order. Add to View Price |
|||
|
#18
BULK HOSE, FUEL (4.5X3000) (4.5X140)
95001-45003-60M
|
$44.43 | ||
|
Available to order. Add to View Price |
|||
|
#18
BULK HOSE, FUEL (4.5X3000) (4.5X150)
95001-45003-60M
|
$44.43 | ||
|
Unavailable |
|||
|
#18
BULK HOSE, FUEL (4.5X3000) (4.5X200)
95001-45003-60M
|
$44.43 | ||
|
Unavailable |
|||
|
#19
CLIP, TUBE (B7)
95002-02070
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
CLIP, TUBE (B8)
95002-02080
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
JET, MAIN (#105)
99114-246-1050
|
$5.67 | ||
|
Unavailable |
|||
|
#23
JET, SLOW (#38)
99124-077-0380
|
$11.80 | ||
|
Unavailable |
|||
