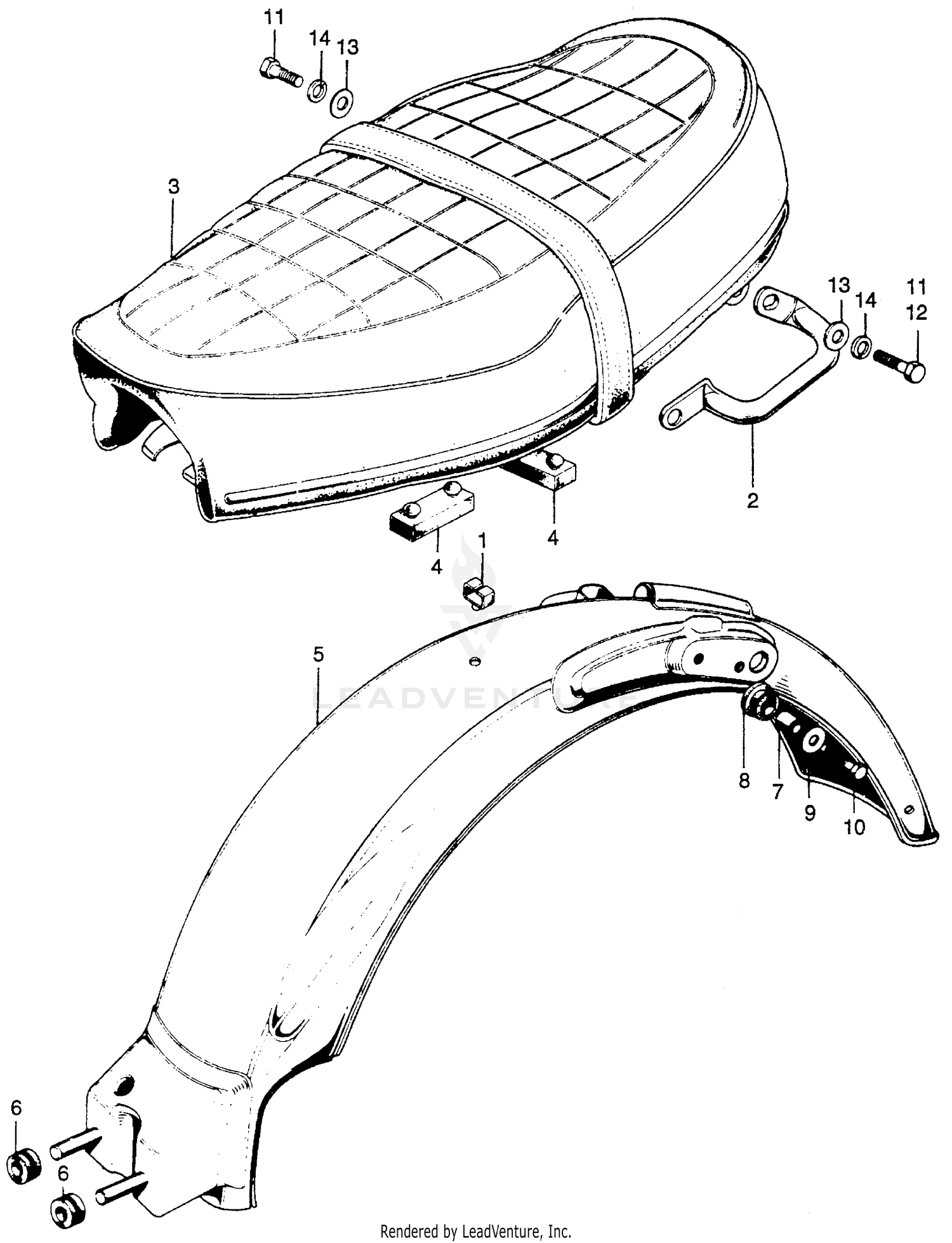

Seat + Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GROMMET, CABLE
32985-107-780
|
$3.30 | ||
|
Unavailable |
|||
|
#2
GRIP, SIDE (NOT AVAILABLE)
50316-107-780
|
$25.28 | ||
|
Unavailable |
|||
|
#3
SEAT ASSY. *NH1L* (BLACK) (NOT AVAILABLE)
77200-107-780A
|
$351.94 | ||
|
Unavailable |
|||
|
#4
RUBBER B, SEAT SETTING
77205-286-000
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#5
FENDER, RR. *MRCR2* (CHROME PLATING) (NOT AVAILABLE)
80100-107-782XW
|
$301.40 | ||
|
Unavailable |
|||
|
#6
RUBBER B, RR. FENDER (NOT AVAILABLE)
80106-028-010
|
$2.19 | ||
|
Unavailable |
|||
|
#7
COLLAR A, RR. FENDER (NOT AVAILABLE)
80108-028-000
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER A, RR. FENDER (NOT AVAILABLE)
80110-107-780
|
$1.97 | ||
|
Unavailable |
|||
|
#9
WASHER, PLAIN (6MM)
90514-700-000
Superseded by 94103-06800
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLAIN (6MM)
94103-06800
|
$0.82 | ||
|
Unavailable |
|||
|
#10
BOLT, HEX. (6X25)
92000-06025
Superseded by 92101-06025-0A
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, HEX. (6X25)
92101-06025-0A
|
$1.70 | ||
|
Unavailable |
|||
|
#11
BOLT, HEX. (8X20)
92000-08020-0A
Superseded by 92101-08020-0A
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT, HEX. (8X20)
92101-08020-0A
|
$1.70 | ||
|
Unavailable |
|||
|
#12
BOLT, HEX. (8X25)
92000-08025-0A
Superseded by 92101-08025-0A
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEX. (8X25)
92101-08025-0A
|
$1.82 | ||
|
Unavailable |
|||
|
#13
WASHER, PLAIN (8MM)
94101-08000
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WASHER, SPRING (8MM)
94111-08000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
