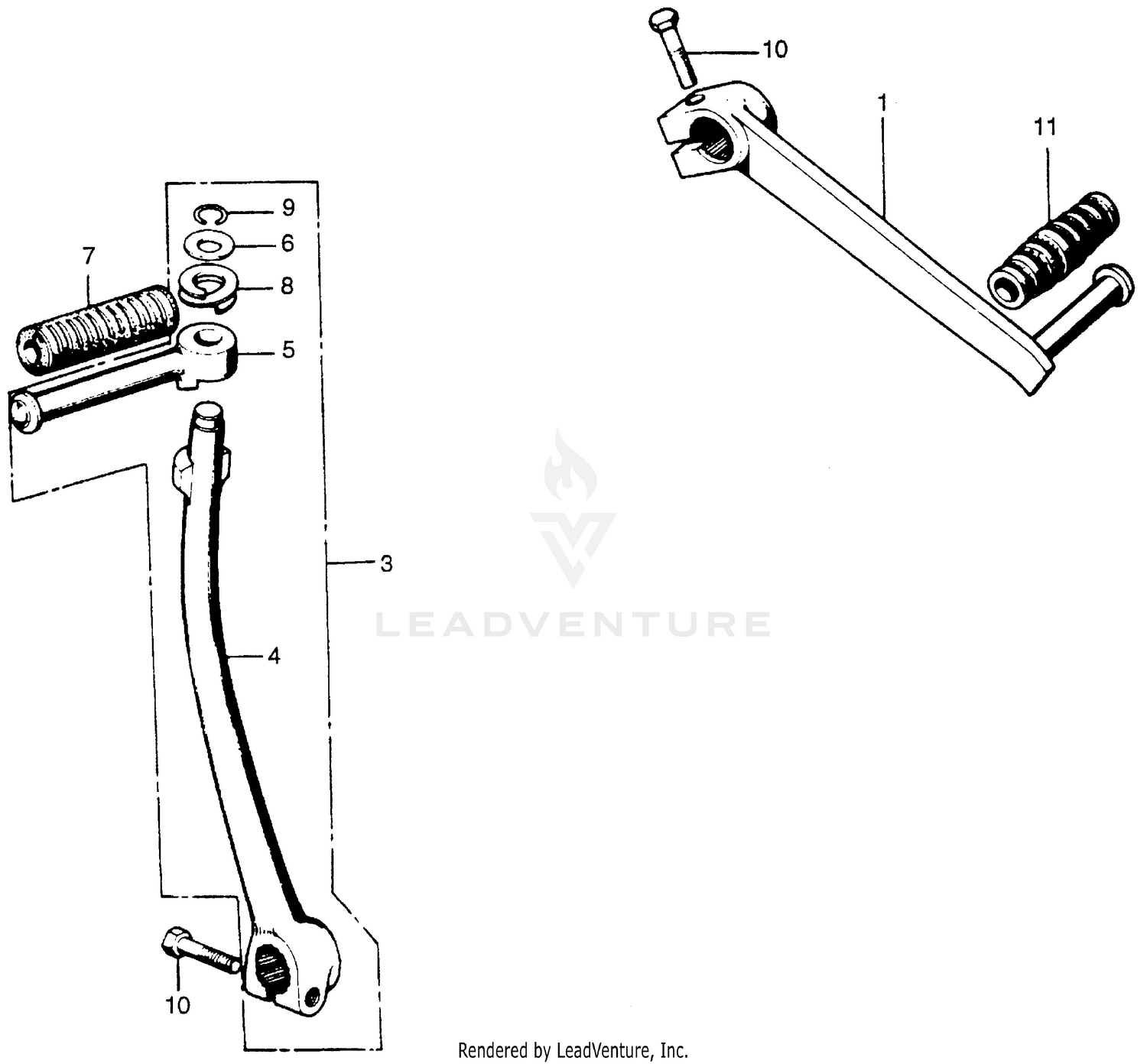

Change Pedal + Kick Starter Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, GEARSHIFT
24700-107-700
Superseded by 24701-107-700
|
$33.76 | ||
|
Unavailable |
|||
|
#1
PEDAL, GEARSHIFT
24701-107-700
|
$33.76 | ||
|
Unavailable |
|||
|
#3
ARM ASSY., KICK STARTER (NOT AVAILABLE)
28300-331-671
|
$131.58 | ||
|
Available to order. Add to View Price |
|||
|
#4
ARM, KICK STARTER
28301-331-671
|
$48.43 | ||
|
Unavailable |
|||
|
#5
PEDAL, KICK STARTER
28302-001-000
Superseded by 28302-126-770
|
$21.18 | ||
|
Unavailable |
|||
|
#5
PEDAL, KICK STARTER
28302-126-770
|
$21.18 | ||
|
Unavailable |
|||
|
#6
WASHER, KICK STARTER KNUCKLE
28303-001-000
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER A, KICK STARTER
28311-001-000
Superseded by 95011-51000
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER A, KICK STARTER
95011-51000
|
$4.64 | ||
|
Unavailable |
|||
|
#8
SPRING, KICK STARTER KNUCKLE
28322-001-000
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP, KICK STARTER KNUCKLE
28324-001-000
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEX. (6X20)
92000-06020
Superseded by 92101-06020-0A
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEX. (6X20)
92101-06020-0A
|
$1.08 | ||
|
Unavailable |
|||
|
#11
RUBBER, SHIFT PEDAL
95011-40000
|
$1.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
