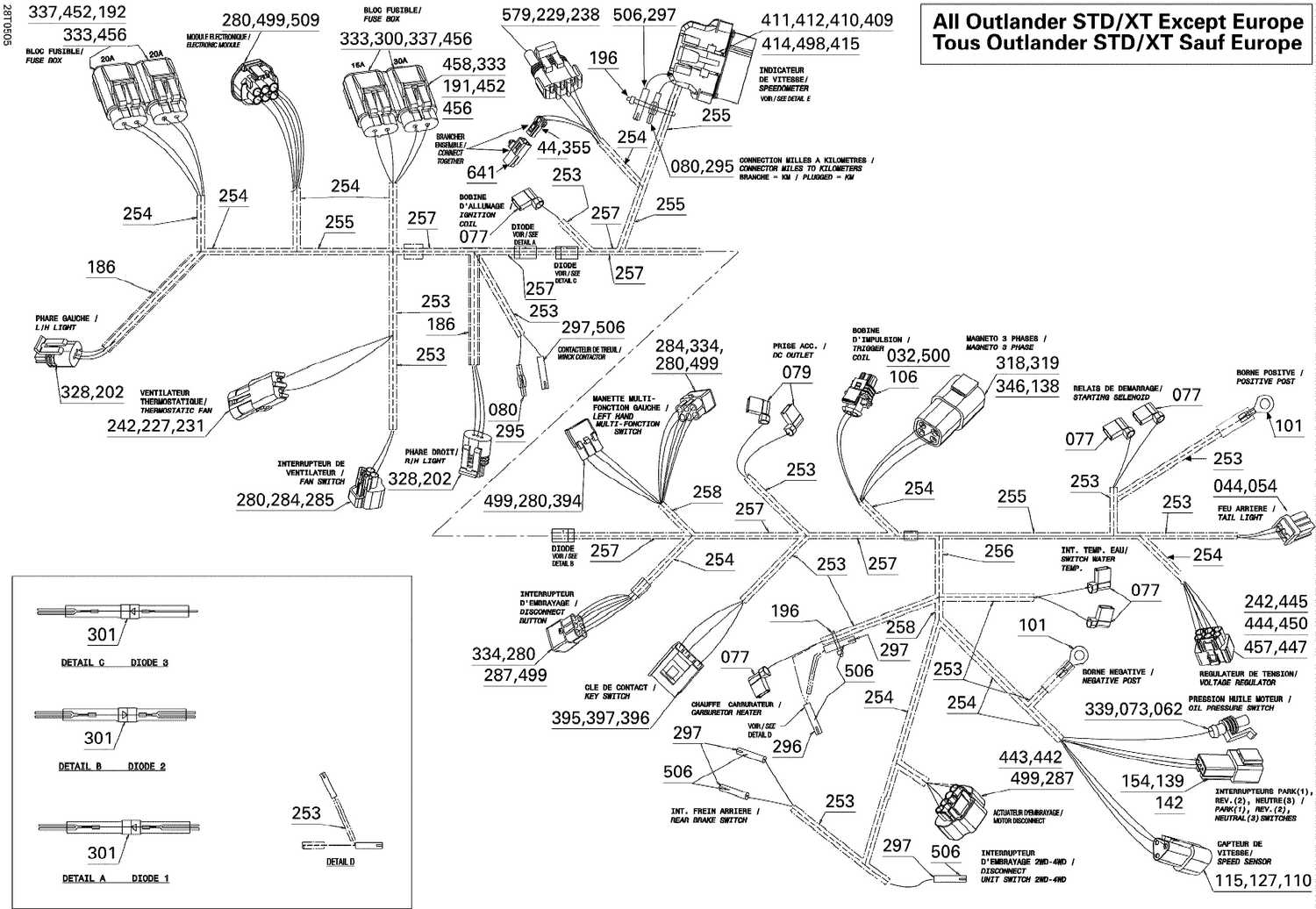

10- Main Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Main Harness Ass'y
710000713
|
$381.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Female Terminal
278000998
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
Female Terminal
515175231
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#54
Female Housing, 3 Circuits
515175495
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#62
Female Terminal
278001014
|
$3.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#73
Wire Seal
278001013
|
$3.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#77
Female Terminal
409010300
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#79
Female Terminal
710000038
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#80
Male Terminal
278000230
|
$4.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#101
Open Barrel Terminal
278001392
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#106
Male Housing, 2 Circuits
278001005
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#110
Male Terminal
278000631
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#115
Male Housing
409207000
Superseded by 278002378
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#127
Male Lock, 3 Circuits
409207600
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#138
Sealing Cap
293000052
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#139
MALE TERMINAL - Call your local BRP dealership
409014800
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#142
MALE HOUSING, 3 CIRCUITS - Call your local BRP dealership
710000044
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#154
MALE LOCK, 3 CIRCUITS - Call your local BRP dealership
710000043
|
$5.92 | ||
|
Available to order. Add to View Price |
|||
|
#186
Vinyl Tubing, Low Temp 3000Mm Long
219704424
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#191
Fuse, 30 Amperes
410917200
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#192
Fuse, 20 Amperes
409003900
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#196
Tie Wrap 142 mm
293750002
|
$1.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#202
Female Terminal
278001114
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#210
CONNECTOR_MALE 6 CAVITIES - Call your local BRP dealership
278000736
Superseded by 710001540
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#227
Male Terminal
409004300
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
|
#231
Female Housing, 2 Circuits
278000217
|
$9.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#242
Wire Seal
278000218
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#253
Tubing 6 Mm 3000Mm Long
219704425
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#254
Was 409901700 Tubing (9 mm)
219704399
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#255
Was 409901800 Tubing (13 mm)
219704400
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#256
Tubing 16 Mm 1000Mm Long
219704408
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#257
Was 409901600 Tubing 19mm
219704398
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#280
Female Terminal
409012100
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#284
Seal
409012300
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#285
HOUSING-TAB - Call your local BRP dealership
710000078
|
$21.99 | ||
|
Unavailable |
|||
|
#287
Cap
710000080
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#295
Female Terminal
278001009
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#296
Insulated Sheath
278000770
|
$7.90 | ||
|
Available to order. Add to View Price |
|||
|
#297
Insulated Sheath
278001007
|
$3.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#300
Fuse, 15 Amperes
278000343
|
$3.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#301
Not Available As Spare Part - Diode
|
|||
|
Unavailable |
|||
|
#318
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership
278001477
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#319
Male Terminal
515175568
|
$9.29 | ||
|
Available to order. Add to View Price |
|||
|
#328
MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
278001467
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#333
Fuse Holder
278001325
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#334
Female Housing, 6 Circuits
710000081
|
$8.79 | ||
|
Available to order. Add to View Price |
|||
|
#336
Rubber Envelope Terminal
710000115
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#337
Female Terminal
710000113
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#338
FEMALE TERMINAL - Call your local BRP dealership
710000114
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#339
Male Housing, 1 Circuit
278001012
|
$17.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#346
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership
278001478
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#355
Female Housing, 2 Circuits
515175658
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#394
Female Terminal Housing, 3 Circuits
710000275
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#395
Female Terminal
710000274
|
$9.79 | ||
|
Available to order. Add to View Price |
|||
|
#396
Female Terminal Housing, 4 Circuits
710000272
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#397
Lock, 4 Circuits
710000273
|
$9.79 | ||
|
Available to order. Add to View Price |
|||
|
#409
Plug
515175812
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#410
FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership
409204600
|
$3.66 | ||
|
Available to order. Add to View Price |
|||
|
#411
Retainer Block
515175802
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#412
Wire Seal
515175803
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#414
LOCK - Call your local BRP dealership
515175805
|
$6.79 | ||
|
Available to order. Add to View Price |
|||
|
#415
Female Terminal
515175806
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#435
FEMALE TERMINAL - Call your local BRP dealership
409009500
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#444
MALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership
710000336
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#445
JOINT SEAL - Call your local BRP dealership
710000337
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#447
SECONDARY LOCK - Call your local BRP dealership
710000339
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#450
CAP - Call your local BRP dealership
710000343
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#452
HOUSING COVER - Call your local BRP dealership
710000342
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#456
Cushion
278000805
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#457
FEMALE TERMINAL - Call your local BRP dealership
710000356
|
$9.69 | ||
|
Available to order. Add to View Price |
|||
|
#458
Female Terminal
710000357
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#498
Female Housing
710000399
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#499
Wire Seal
710000402
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#500
WIRE SEAL - Call your local BRP dealership
710000403
|
$3.37 | ||
|
Available to order. Add to View Price |
|||
|
#506
Female Terminal
710000421
|
$6.29 | ||
|
Available to order. Add to View Price |
|||
|
#509
Female Terminal Housing, 6 Circuits
710000474
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#641
Male Housing, 2 Circuits
710000667
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
