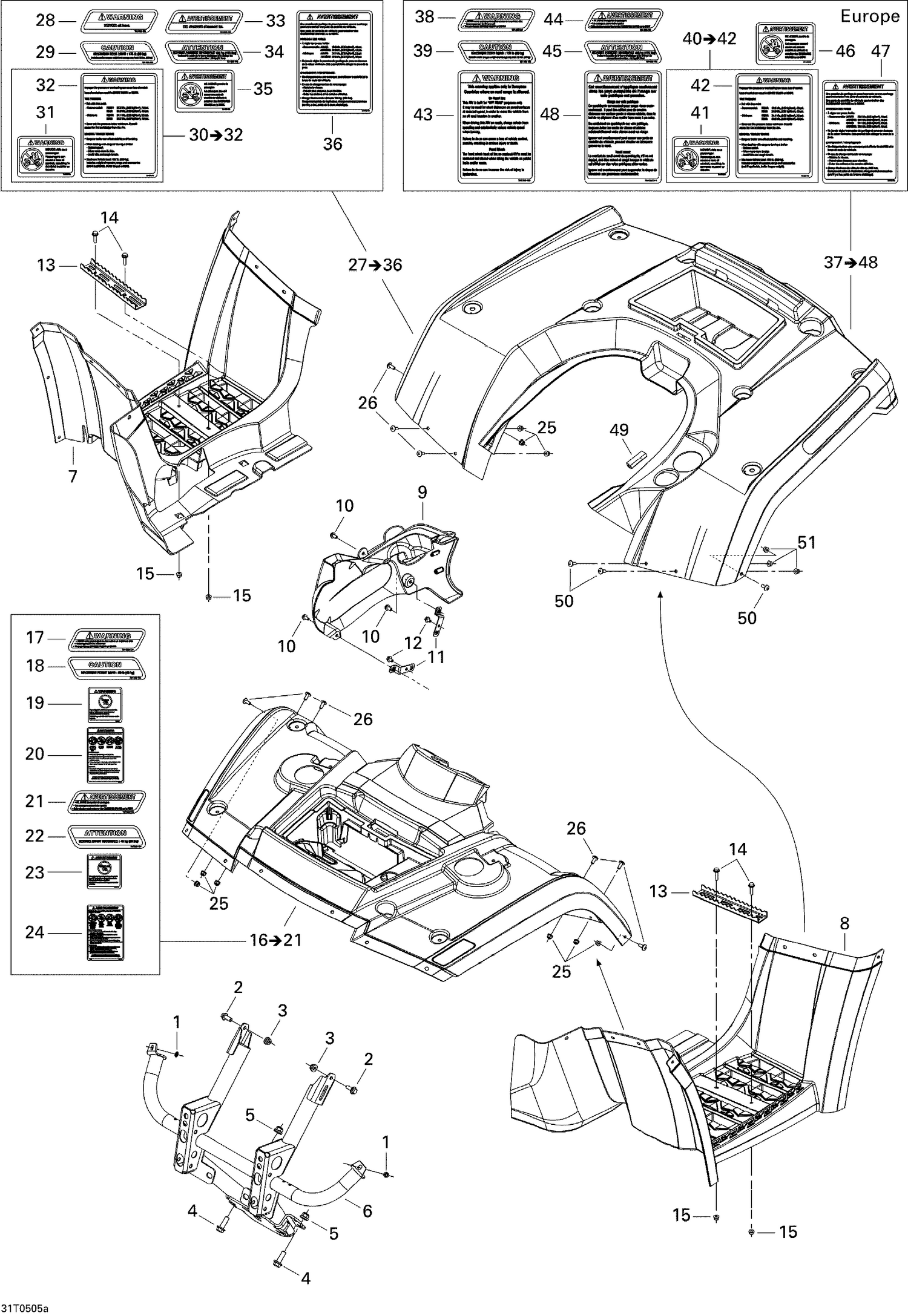

09- Body And Accessories 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Push Nut
732610072
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#2
Hex. Flange Screw M8 X 20
207682044
|
$1.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
Hex. Flange Screw M10 X 30
207603044
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#5
Hex. Flange Elastic Nut M10
233201414
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUMPER F KIT - Call your local BRP dealership
705001682
Superseded by 715900097
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUMPER F KIT - Call your local BRP dealership
705001726
Superseded by 715900097
|
$189.99 | ||
|
Unavailable |
|||
|
#7
RH Footboard
705001510
Superseded by 705002485
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
LH Footboard
705001511
Superseded by 705003632
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Engine Cover
705001518
Superseded by 705003837
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Hex. Flange Screw M6 X 12
210261280
Superseded by 210261250
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
Engine Cover Support
705000657
Superseded by 705003646
|
$9.23 | ||
|
Available to order. Add to View Price |
|||
|
#12
Hex. Forming Screw M6 X 10
210261080
Superseded by 210261050
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#13
Footrest
705000428
Superseded by 705003648
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Hex. Flange Screw M6 X 25
207662584
Superseded by 207662554
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
RED FRONT FENDER KIT - Call your local BRP dealership
703500530
Superseded by 715002318
|
$359.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
FRONT FENDER KIT, GREEN - Call your local BRP dealership
703500527
Superseded by 715001030
|
$384.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
YELLOW FRONT FENDER KIT - Call your local BRP dealership
703500525
Superseded by 715002317
|
$359.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Front Fender
703500327
|
$733.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Warning Decal, Load
704900884
Superseded by 704901089
|
$0.01 | ||
|
Available to order. Add to View Price |
|||
|
#18
Warning Decal, Load
704900433
Superseded by 704901089
|
$0.01 | ||
|
Unavailable |
|||
|
#19
Warning Decal, Under 16 Years Old
704900113
Superseded by 704900011
|
$0.01 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
WARNING DECAL, DEATH AND INJURIES - Call your local BRP dealership
704900112
Superseded by 704901878
|
$0.01 | ||
|
Available to order. Add to View Price |
|||
|
#21
Not Available As Spare Part - Warning Label, Do Not Sit
|
|||
|
Unavailable |
|||
|
#22
Not Available As Spare Part - Warning Label, Front Load
|
|||
|
Unavailable |
|||
|
#23
Warning Decal, Under 16 Years Old
704900012
|
$0.01 | ||
|
Available to order. Add to View Price |
|||
|
#24
Warning Decal, Death And Injuries
704900002
|
$0.01 | ||
|
Available to order. Add to View Price |
|||
|
#25
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
Unavailable |
|||
|
#26
TRUSS PHILLIPS SCREW M6 X 16 - Call your local BRP dealership
211000121
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#27
Rear Fender Kit, Red - Call Your Local BRP Dealership
703500272
|
$459.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Rear Fender Kit, Green
703500273
|
$576.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
Rear Fender Kit, Yellow
703500328
|
$419.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Rear Fender Kit, Camo
703500329
|
$714.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Warning Decal,, Do Not Sit
704900483
|
$0.01 | ||
|
Available to order. Add to View Price |
|||
|
#29
Warning Decal, Load
704900432
Superseded by 704901089
|
$0.01 | ||
|
Unavailable |
|||
|
#30
Warning Decal Ass'y
704900662
|
$0.01 | ||
|
Available to order. Add to View Price |
|||
|
#31
WARNING DECAL, PASSENGER - Call your local BRP dealership
704900005
|
$0.01 | ||
|
Available to order. Add to View Price |
|||
|
#32
Not Available As Spare Part - Warning Label, Tire Pressure
|
|||
|
Unavailable |
|||
|
#33
Not Available As Spare Part - Warning Label, Do Not Sit
|
|||
|
Unavailable |
|||
|
#34
Not Available As Spare Part - Warning Label, Rear Load
|
|||
|
Unavailable |
|||
|
#35
Warning Decal, Passenger, French
704900006
|
|||
|
Unavailable |
|||
|
#36
Not Available As Spare Part - Warning Label, Tire Pressure
|
|||
|
Unavailable |
|||
|
#37
Rear Fender Kit, Red, Europe
703500480
|
$564.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
Rear Fender Kit, Green, Europe
703500481
|
$479.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
Rear Fender Kit, Yellow, Europe
703500482
|
$459.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
Warning Decal, Load
704900884
Superseded by 704901089
|
$0.01 | ||
|
Unavailable |
|||
|
#39
Warning Decal, Load
704900432
Superseded by 704901089
|
$0.01 | ||
|
Unavailable |
|||
|
#40
Warning Decal Ass'y
704900662
|
$0.01 | ||
|
Unavailable |
|||
|
#41
WARNING DECAL, PASSENGER - Call your local BRP dealership
704900005
|
$0.01 | ||
|
Unavailable |
|||
|
#42
Not Available As Spare Part - Warning Label, Tire Pressure
|
|||
|
Unavailable |
|||
|
#43
WARNING DECAL, PUBLIC ROADS USE - Call your local BRP dealership
704900400
Superseded by 704901444
|
$0.01 | ||
|
Available to order. Add to View Price |
|||
|
#44
Warning Label, Do Not Sit
704900885
|
|||
|
Unavailable |
|||
|
#45
Not Available As Spare Part - Warning Label, Rear Load
|
|||
|
Unavailable |
|||
|
#46
Warning Decal, Passenger, French
704900006
|
|||
|
Unavailable |
|||
|
#47
Not Available As Spare Part - Warning Label, Tire Pressure
|
|||
|
Unavailable |
|||
|
#48
WARNING DECAL, PUBLIC ROADS USE - Call your local BRP dealership
704900911
|
$0.01 | ||
|
Available to order. Add to View Price |
|||
|
#49
Was 293200017 Neoprene Seal
219704365
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
TRUSS PHILLIPS SCREW M6 X 16 - Call your local BRP dealership
211000121
|
$2.28 | ||
|
Unavailable |
|||
|
#51
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
Unavailable |
|||
