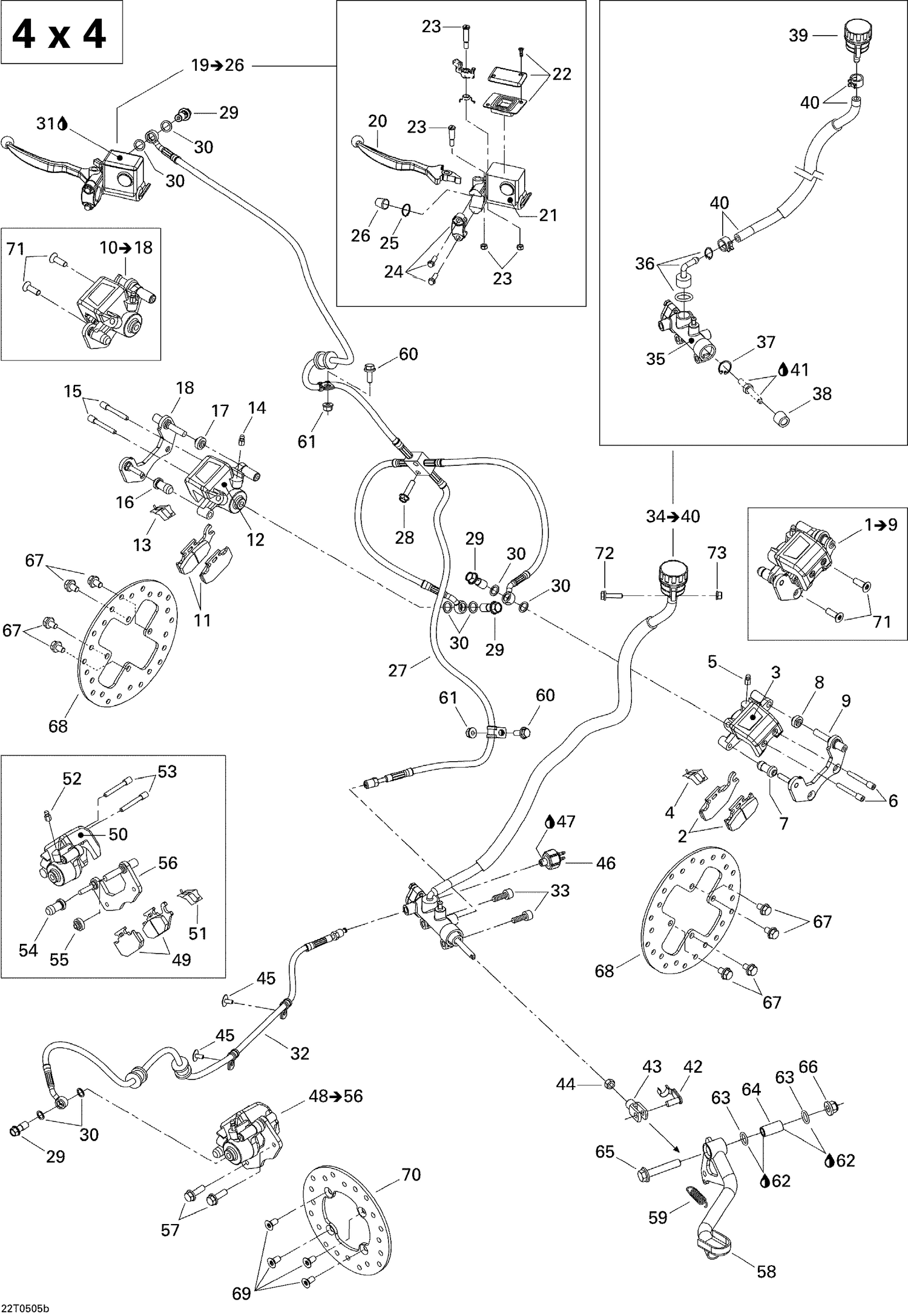

06- Hydraulic Brake 4 X 4 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RH Caliper
705600367
Superseded by 705600575
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Brake Pad Kit
705600349
|
$51.99 | ||
|
Unavailable |
|||
|
#3
Piston Set
705600078
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Spring
705600079
|
$15.81 | ||
|
Available to order. Add to View Price |
|||
|
#5
Bleeding Screw
705600080
|
$16.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
Pin Set (2)
705600081
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Compression Boot
705600082
|
$10.06 | ||
|
Available to order. Add to View Price |
|||
|
#8
Compression Boot
705600083
|
$10.06 | ||
|
Available to order. Add to View Price |
|||
|
#9
Not Available As Spare Part - RH Caliper Support
|
|||
|
Unavailable |
|||
|
#10
LH Caliper
705600366
Superseded by 705600576
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Brake Pad Kit
705600350
|
$51.99 | ||
|
Unavailable |
|||
|
#12
Piston Set
705600078
|
$38.99 | ||
|
Unavailable |
|||
|
#13
Spring
705600079
|
$15.81 | ||
|
Unavailable |
|||
|
#14
Bleeding Screw
705600080
|
$16.87 | ||
|
Unavailable |
|||
|
#15
Pin Set (2)
705600081
|
$21.99 | ||
|
Unavailable |
|||
|
#16
Compression Boot
705600082
|
$10.06 | ||
|
Unavailable |
|||
|
#17
Compression Boot
705600083
|
$10.06 | ||
|
Unavailable |
|||
|
#18
LH Caliper Support
705600297
|
$48.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
Front Master Cylinder
705600242
Superseded by 705600844
|
$229.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Lever Arm
705600243
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PISTON KIT - Call your local BRP dealership
705600244
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Cap Set
705600084
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Brake Lever Bolt Kit
705600246
|
$14.81 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRACKET KIT - Call your local BRP dealership
705600087
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CIRCLIP - Call your local BRP dealership
705600088
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
COMPRESSION BOOT - Call your local BRP dealership
705600089
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
Front Hose
705600382
|
$127.99 | ||
|
Unavailable |
|||
|
#28
Hex. Flange Forming Screw M6 X 25
210262580
Superseded by 210262550
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Banjo Bolt (M10 x 1.25 thread)
705600396
Superseded by 705600609
|
$0.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
Copper Washer
705600310
Superseded by 705601628
|
$4.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership
293600063
|
|||
|
Unavailable |
|||
|
#31
HYDRAULIC OIL - Call your local BRP dealership
293600062
Superseded by 293600131
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Rear Hose
705600373
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
Socket Head Screw M8 X 20, Scotch Grip
250000136
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#34
Rear Master Cylinder
705600254
|
$224.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
PISTON SET - Call your local BRP dealership
705600255
|
$64.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership
705600064
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
Circlip
705600068
|
$3.49 | ||
|
Unavailable |
|||
|
#38
Compression Boot
705600090
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
Oil Tank, Brake Fluid Reservoir
705600182
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
OIL HOUSING HOSE - Call your local BRP dealership
705600262
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
Not Available As Spare Part - Grease, Therma Lube, 2 G
|
|||
|
Unavailable |
|||
|
#42
Pin Kit
250400007
Superseded by 219702305
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
Yoke
705600100
|
|||
|
Available to order. Add to View Price |
|||
|
#44
Hex. Nut M8
232081414
|
$0.74 | ||
|
Available to order. Add to View Price |
|||
|
#45
Pop Rivet 3/16"
390406500
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#46
BRAKE SWITCH - Call your local BRP dealership
710000734
Superseded by 710001345
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
Was 293800013 Loctite 56765
219704454
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
Rear Caliper
705600397
Superseded by 705600577
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
LH Brake Pad Kit
705600398
|
$51.99 | ||
|
Unavailable |
|||
|
#50
Piston Set
705600399
|
$23.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
Spring
705600079
|
$15.81 | ||
|
Unavailable |
|||
|
#52
Bleeding Screw
705600080
|
$16.87 | ||
|
Unavailable |
|||
|
#53
Pin Set (2)
705600081
|
$21.99 | ||
|
Unavailable |
|||
|
#54
Compression Boot
705600082
|
$10.06 | ||
|
Unavailable |
|||
|
#55
Compression Boot
705600083
|
$10.06 | ||
|
Unavailable |
|||
|
#56
LH CALIPER SUPPORT - Call your local BRP dealership
705600298
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
Hex. Flange Screw M8 X 25, Scotch Grip
207582544
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#58
BRAKE PEDAL - Call your local BRP dealership
705600265
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
BREAK PEDAL SPRING - Call your local BRP dealership
705600098
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
Hex. Flange Screw M6 X 16
207661644
|
$0.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#61
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#62
Synthetic Grease, 400 G
293550010
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
O-RING - Call your local BRP dealership
293300053
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#64
SPACER - Call your local BRP dealership
705600283
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#65
Hex. Flange Screw M10 X 55
207605544
|
$3.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#66
Hex. Flange Elastic Nut M10
233201414
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#67
Hex. Flange Screw M8 X 12, Scotch Grip
207581244
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#68
Disk Brake
705600279
Superseded by 705600603
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#69
Torx Screw M8 X 16, Scotch Grip
235381646
|
$2.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#70
Disk Brake
705600271
Superseded by 705600604
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#71
Torx Screw M8 X 25, Scotch Grip
250000143
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#72
Hex. Flange Screw M6 X 25
207662544
|
$0.66 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#73
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
Unavailable |
|||
