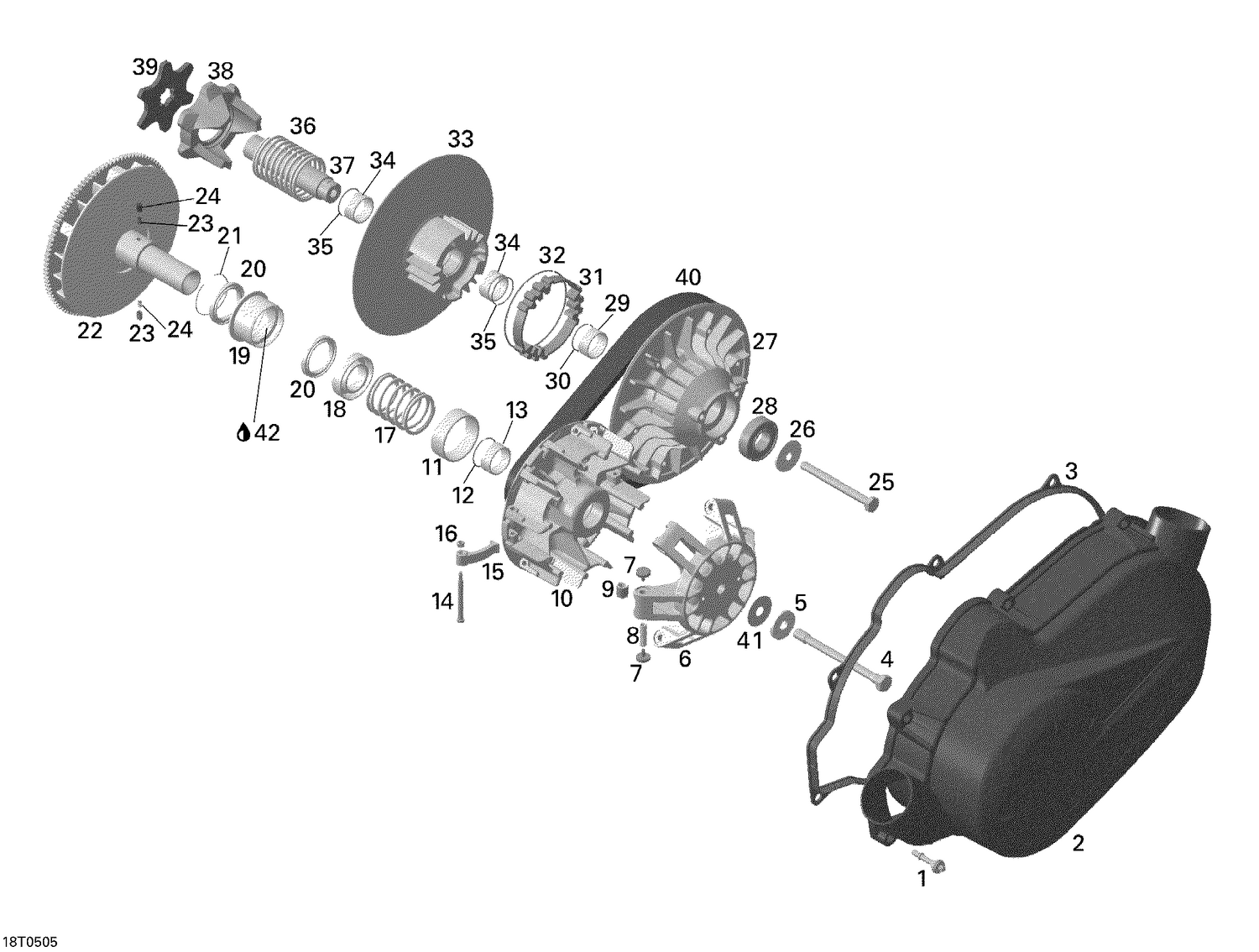

05- Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Hex Screw M6 X 30
420440307
Superseded by 420440568
|
$8.79 | ||
|
Available to order. Add to View Price |
|||
|
#2
CVT COVER - Call your local BRP dealership
420610421
|
$131.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CVT Cover Gasket
420630290
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Hex. Screw M12 X 140
420641812
|
$29.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
Spring Washer
420627760
|
$11.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
CVT Drive Ass'y
420684400
|
|||
|
Available to order. Add to View Price |
|||
|
#6
CVT DRIVE ASS'Y - Call your local BRP dealership
420684405
|
|||
|
Unavailable |
|||
|
#6
Governor Cup Ass'y
420280155
Superseded by 420280522
|
$269.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Not Available As Spare Part - Governor Cup
|
|||
|
Unavailable |
|||
|
#7
Slider Shoe Set
420281290
Superseded by 420281296
|
$45.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Roller Axle
420233890
Superseded by 417223257
|
$7.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
Roller
420229585
Superseded by 417223767
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Outer Half Ass'y
420280310
|
|||
|
Available to order. Add to View Price |
|||
|
#10
Outer Half Ass'y
420280315
|
$456.99 | ||
|
Unavailable |
|||
|
#10
Not Available As Spare Part - Outer Half
|
|||
|
Unavailable |
|||
|
#11
Not Available As Spare Part - Bushing
|
|||
|
Unavailable |
|||
|
#12
Not Available As Spare Part - Retaining Ring
|
|||
|
Unavailable |
|||
|
#13
Not Available As Spare Part - Bushing
|
|||
|
Unavailable |
|||
|
#14
Centrifugal Lever Set
420248428
Superseded by 420248424
|
$75.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CENTRIFUGAL LEVER SET - Call your local BRP dealership
420248475
|
$135.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Not Available As Spare Part - Bearing Screw M5
|
|||
|
Unavailable |
|||
|
#15
Not Available As Spare Part - Lever
|
|||
|
Unavailable |
|||
|
#16
Not Available As Spare Part - Lock Nut M5
|
|||
|
Unavailable |
|||
|
#17
Compression Spring
420238161
Superseded by 420238166
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Seat Spring
420627574
Superseded by 420627578
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Inner Half Set Ass'y
420281390
|
|||
|
Available to order. Add to View Price |
|||
|
#19
Clutch
420257437
Superseded by 420257439
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Ball Bearing
420632371
Superseded by 420632377
|
$49.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
Retaining Ring
420245950
Superseded by 420245951
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#22
Not Available As Spare Part - Inner Half Ass'y
|
|||
|
Unavailable |
|||
|
#23
Spring Sleeve
420229576
Superseded by 420229577
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
Compression Spring
420239132
Superseded by 420239135
|
$6.59 | ||
|
Available to order. Add to View Price |
|||
|
#25
Hex. Screw M10 X 110
420941906
Superseded by 420441485
|
$12.18 | ||
|
Available to order. Add to View Price |
|||
|
#26
Thrust Washer
420627590
Superseded by 420627594
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
CVT DRIVEN PULLEY ASS'Y - Call your local BRP dealership
420684450
|
|||
|
Available to order. Add to View Price |
|||
|
#27
Outer Half Pulley Ass'y
420280176
Superseded by 420280178
|
$359.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Not Available As Spare Part - Outer Half
|
|||
|
Unavailable |
|||
|
#28
Ball Bearing
420932426
Superseded by 420932421
|
$28.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
Not Available As Spare Part - Bushing
|
|||
|
Unavailable |
|||
|
#30
Not Available As Spare Part - Retaining Ring
|
|||
|
Unavailable |
|||
|
#31
TORQUE GEAR - Call your local BRP dealership
420660120
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Retaining Ring
420245910
Superseded by 420245911
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#33
Inner Half Ass'y
420280235
Superseded by 420248233
|
$308.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
Not Available As Spare Part - Inner Half
|
|||
|
Unavailable |
|||
|
#34
Not Available As Spare Part - Bushing
|
|||
|
Unavailable |
|||
|
#35
Not Available As Spare Part - Retaining Ring
|
|||
|
Unavailable |
|||
|
#36
COMPRESSION SPRING - Call your local BRP dealership
420238340
|
$24.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
Driven Pulley Shaft
420220911
Superseded by 420220913
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
Cam
420280250
|
$43.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
Cam Plate
420627582
Superseded by 420627586
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
Drive Belt
420280280
Superseded by 422280283
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
Thrust Washer
420627920
|
$7.51 | ||
|
Available to order. Add to View Price |
|||
|
#42
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
