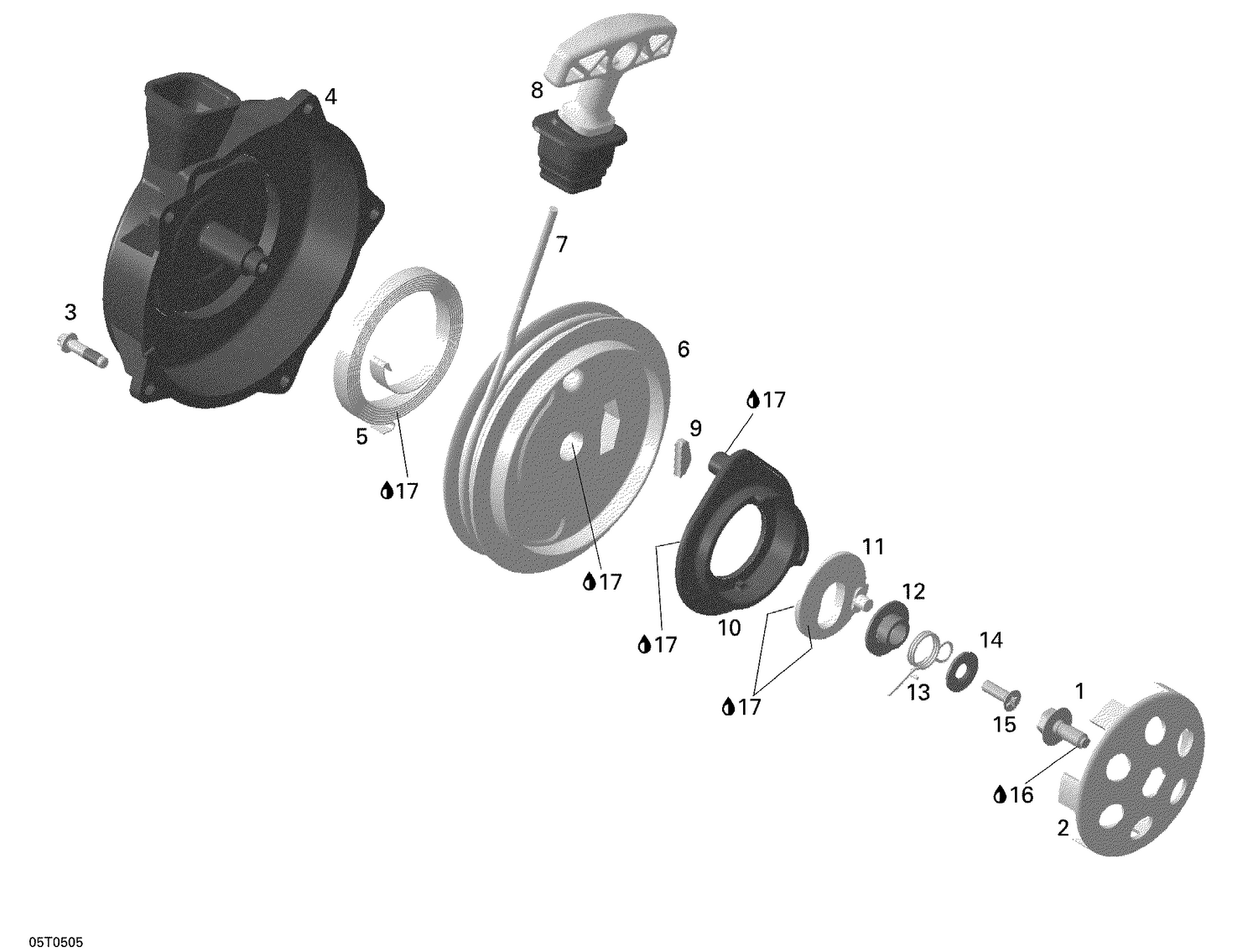

04- Rewind Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Hex. Collar Screw M8 X 20
420241721
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#2
Starting Pulley
420852501
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Hex. Screw M6 X 25
420240031
Superseded by 420240034
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Starter Rope Housing Ass'y
420684290
Superseded by 715001034
|
$217.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Starter Rope Housing
420610930
|
$58.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
Rewind Spring
420939115
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Rope Sheave
420852283
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Was 412500100 Rope-Starter
219704403
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Starting Grip With Rubber Buffer
420852555
|
$47.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
Key Clamp
420852070
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#10
Pawl
420852299
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Lock Pawl
420852306
|
$17.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
STAGE SLEEVE - Call your local BRP dealership
420847927
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
Locking Spring
420938989
|
$20.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
Flat Washer
420244320
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLASTITE SCREW M6 X 20 - Call your local BRP dealership
420241730
|
$9.39 | ||
|
Available to order. Add to View Price |
|||
|
#16
Loctite 243, 10 ml
293800060
|
$21.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
Molykote PG 54, 10 g
420899763
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
