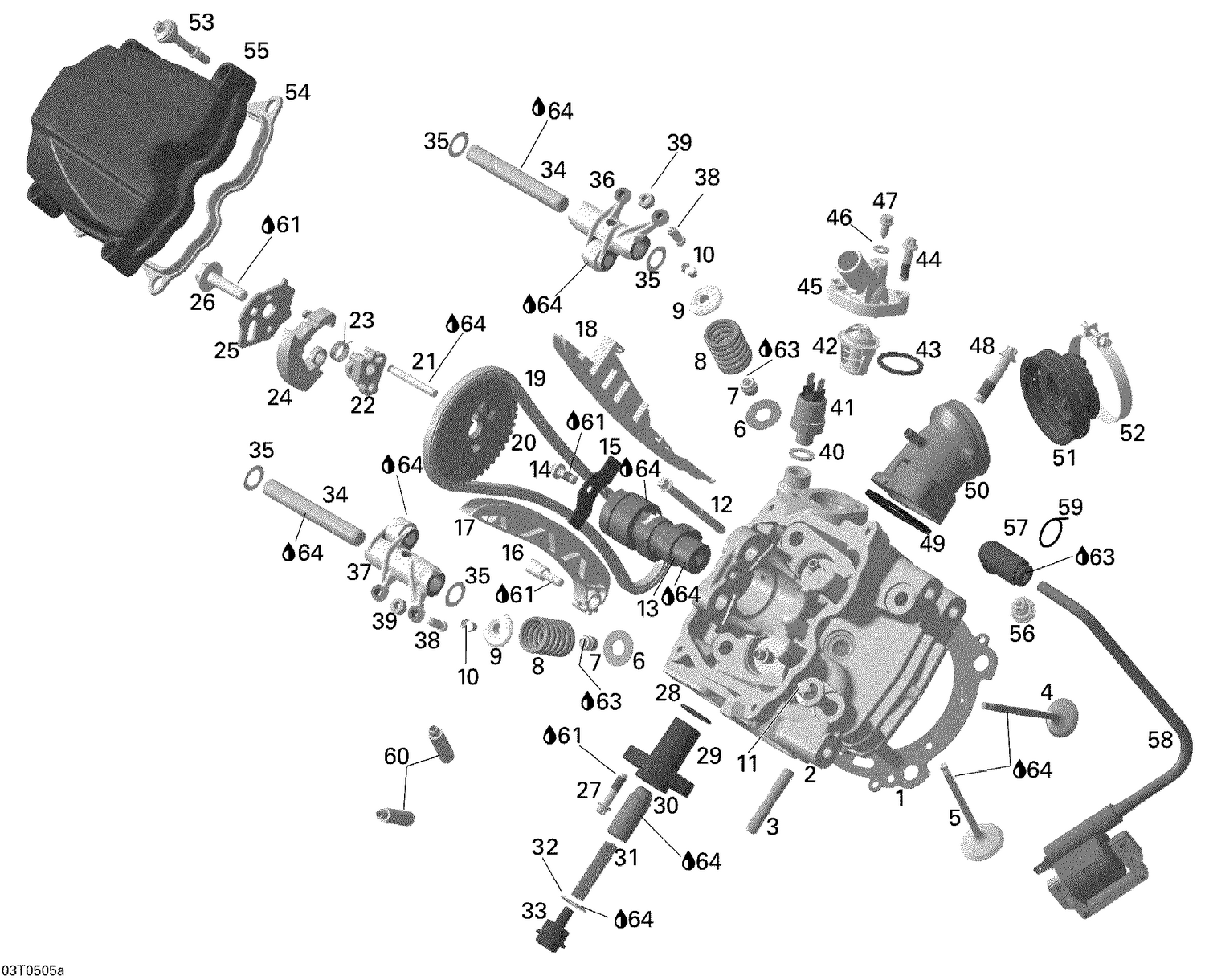

01- Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Cylinder Head Gasket
420630195
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Cylinder Head Gasket
420630850
|
$62.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
Cylinder Head
420613526
Superseded by 420413397
|
$679.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Not Available As Spare Part - Cylinder Head
|
|||
|
Unavailable |
|||
|
#3
Stud M8 x 26
420941013
Superseded by 420941014
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
Intake Valve 31MM
420254350
Superseded by 420254359
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Exhaust Valve, 27 Mm
420254360
Superseded by 420253171
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Thrust Washer
420627770
Superseded by 420627525
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#7
Valve Stem Seal
420230515
|
$12.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Valve Spring
420239295
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
Valve Spring Retainer
420254132
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
Cotter Valve
420254120
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#11
Torx Screw M10X140
420641550
Superseded by 420641551
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
Torx Flange Screw M6 X 85
420440342
Superseded by 420641228
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#13
Camshaft
420620010
Superseded by 420620011
|
$418.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Torx Flange Screw M6 X 16
420440162
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
Holding Strip
420627740
Superseded by 420627743
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
Bearing Screw M6
420240942
Superseded by 420240943
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#17
Chain Tension Guide
420236570
Superseded by 420436015
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Chain Guide
420236580
Superseded by 420236584
|
$7.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
Silent Chain
420297060
Superseded by 420297063
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Camshaft Sprocket
420254432
Superseded by 420254434
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Deko Shaft
420620120
|
$20.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
Spacer
420231080
|
$20.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
Deko Torsion Spring
420238270
|
$4.97 | ||
|
Available to order. Add to View Price |
|||
|
#24
Centrifugal Weight
420231070
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
Deko Washer
420231090
|
$12.18 | ||
|
Available to order. Add to View Price |
|||
|
#26
Hex. Collar Screw M8 X 32
420641820
|
$17.04 | ||
|
Available to order. Add to View Price |
|||
|
#26
Hex. Collar Screw M8 X 20
420241721
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#27
Hex. Screw M6 X 25
420240031
Superseded by 420240034
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-Ring
420430370
Superseded by 420430373
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#29
Chain Tensioner Housing
420236510
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Chain Tensioner Plunger
420236520
Superseded by 420236521
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
Spring
420238120
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#32
O-Ring
420250890
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#33
Plug Screw
420641150
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#34
Pin #12, Small, M6 X 90
420229711
Superseded by 420229712
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Shim
420944382
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#36
Inlet Rocker Arm
420254405
Superseded by 420254907
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
Exhaust Rocker Arm
420254415
Superseded by 420254911
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
Adjustment Screw M6 X 0.75
420241335
Superseded by 420241337
|
$5.19 | ||
|
Available to order. Add to View Price |
|||
|
#39
Hex Nut M6
420242910
Superseded by 420242913
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#40
Copper Washer
420250640
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
Temperature Switch
420897938
|
$78.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
Thermostat 65° With Gasket Ass'y
420222493
Superseded by 420222494
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
Not Available As Spare Part - Thermostat 65°
|
|||
|
Unavailable |
|||
|
#43
Thermostat Gasket
420650300
|
$8.79 | ||
|
Available to order. Add to View Price |
|||
|
#44
Torx Flange Screw M6 X 25
420440232
Superseded by 420440234
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#45
Thermostat Cover
420222690
Superseded by 420222696
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#46
Gasket Ring
420650250
Superseded by 420650255
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#47
Screw M5 X 16
420941950
Superseded by 420441621
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#48
ALLEN SCREW M8 X 40 - Call your local BRP dealership
420440482
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
Gasket
420630640
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#50
Intake Flange Ass'y
420267386
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
Intake Neck
420267340
|
$17.05 | ||
|
Available to order. Add to View Price |
|||
|
#52
Clamp
420251480
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
Hex Screw M6 X 30
420440307
Superseded by 420440568
|
$8.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#54
Gasket
420630260
Superseded by 420630265
|
$8.79 | ||
|
Unavailable |
|||
|
#55
Valve Cover
420610390
Superseded by 420610393
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
Spark Plug NGK DCPR8E
707000246
Superseded by 715900637
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
IGNITION COIL ASS'Y - Call your local BRP dealership
420265358
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
Spark Plug Connector
420265240
Superseded by 420265248
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#58
Not Available As Spare Part - Ignition Coil
|
|||
|
Unavailable |
|||
|
#59
Not Available As Spare Part - Cable Clamp
|
|||
|
Unavailable |
|||
|
#60
Valve Guide
420254370
Superseded by 420254374
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#61
Loctite 243, 10 ml
293800060
|
$21.49 | ||
|
Available to order. Add to View Price |
|||
|
#62
Sealant Loctite 648
413711400
Superseded by 219703000
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
Grease, Super Lube
293550030
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership
293600039
Superseded by 293600121
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
