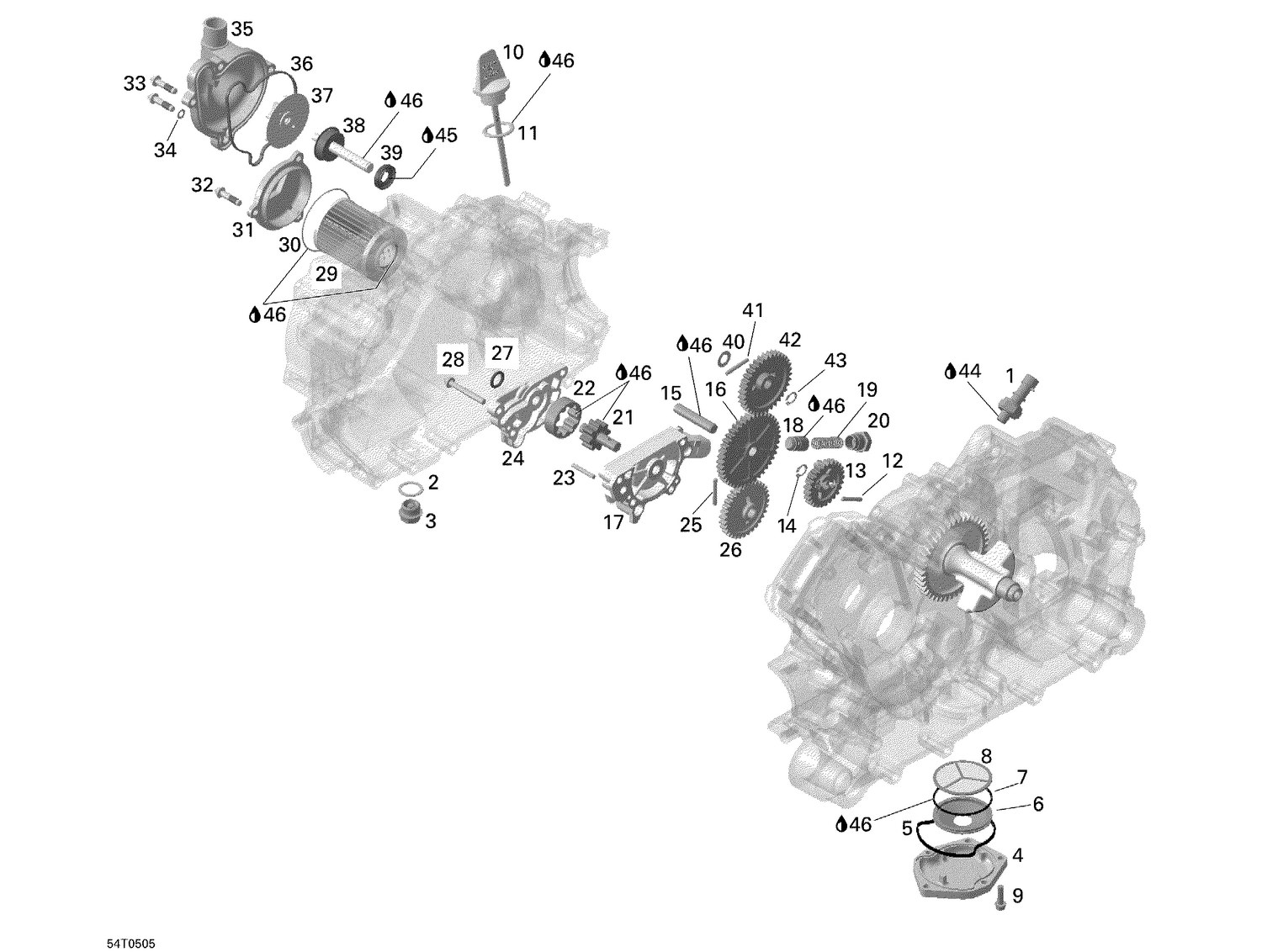

01- Engine Lubrication Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Inter.Press.Hui*Switch-Oil Pressure
420256770
Superseded by 420856539
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Crush Washer
420552280
|
$3.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
Drain Plug M18 X 1.5
420840277
Superseded by 420840278
|
$23.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
OIL SIEVE COVER - Call your local BRP dealership
420211940
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Rubber Ring
420650560
|
$16.86 | ||
|
Available to order. Add to View Price |
|||
|
#6
Oil Collector
420256650
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-Ring
420650695
Superseded by 420650697
|
$11.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
Oil Sieve
420256575
Superseded by 420256576
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
Torx Flange Screw M6 X 20
420440202
Superseded by 420440207
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#10
Oil Dipstick
420256800
|
$17.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-Ring
420631640
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#12
Needle Pin
420232430
Superseded by 420232432
|
$4.59 | ||
|
Available to order. Add to View Price |
|||
|
#13
Idle Gear, 25 Teeth
420635191
|
$17.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
Snap Ring
420245330
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#15
Location Pin 10 M6x50
420229301
Superseded by 420229302
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#16
Idle Gear, 42 Teeth
420635660
|
$20.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
Oil Pump Ass’y
420296507
|
$284.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Oil Pump Housing
420610220
Superseded by 420610221
|
$96.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
Piston Valve
420256921
Superseded by 420256922
|
$12.70 | ||
|
Available to order. Add to View Price |
|||
|
#19
Compression Spring
420238220
|
$8.09 | ||
|
Available to order. Add to View Price |
|||
|
#20
Plug Screw M16
420641167
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
Oil Pump Shaft
420220814
|
$132.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
Oil Pump Outer Rotor
420256935
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Needle Pin
420232430
Superseded by 420232432
|
$4.59 | ||
|
Unavailable |
|||
|
#24
Oil Pump Cover
420610570
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Needle Pin
420232430
Superseded by 420232432
|
$4.59 | ||
|
Unavailable |
|||
|
#26
Oil Pump Gear, 32 Teeth
420635220
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING - Call your local BRP dealership
293300037
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Torx Flange Screw M6 X 45
420440322
Superseded by 420440324
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#29
Oil Filter
420256188
|
$13.77 | ||
|
Available to order. Add to View Price |
|||
|
#30
O-Ring
420230920
Superseded by 420230923
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#31
Oil Filter cover
420210418
Superseded by 420612135
|
$11.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
Torx Flange Screw M6 X 25
420440232
Superseded by 420440234
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#33
Torx Flange Screw M6 X 25
420440232
Superseded by 420440234
|
$3.09 | ||
|
Unavailable |
|||
|
#34
Seal Washer
420230415
|
$1.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
Water Pump Housing
420222680
|
$62.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
Gasket
420630270
|
$11.05 | ||
|
Available to order. Add to View Price |
|||
|
#37
Water Impeller
420222505
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
Waterpump Shaft Ass'y
420620171
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
Oil Seal
420650310
Superseded by 420650315
|
$11.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
Thrust Washer
420827590
|
$4.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
Needle Pin
420232430
Superseded by 420232432
|
$4.59 | ||
|
Unavailable |
|||
|
#42
Idle Gear, 34 Teeth
420635620
|
$17.05 | ||
|
Available to order. Add to View Price |
|||
|
#43
Snap Ring
420245330
|
$1.79 | ||
|
Unavailable |
|||
|
#44
Loctite 243, 10 ml
293800060
|
$21.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
Grease, Super Lube
293550030
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership
293600039
Superseded by 293600121
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
