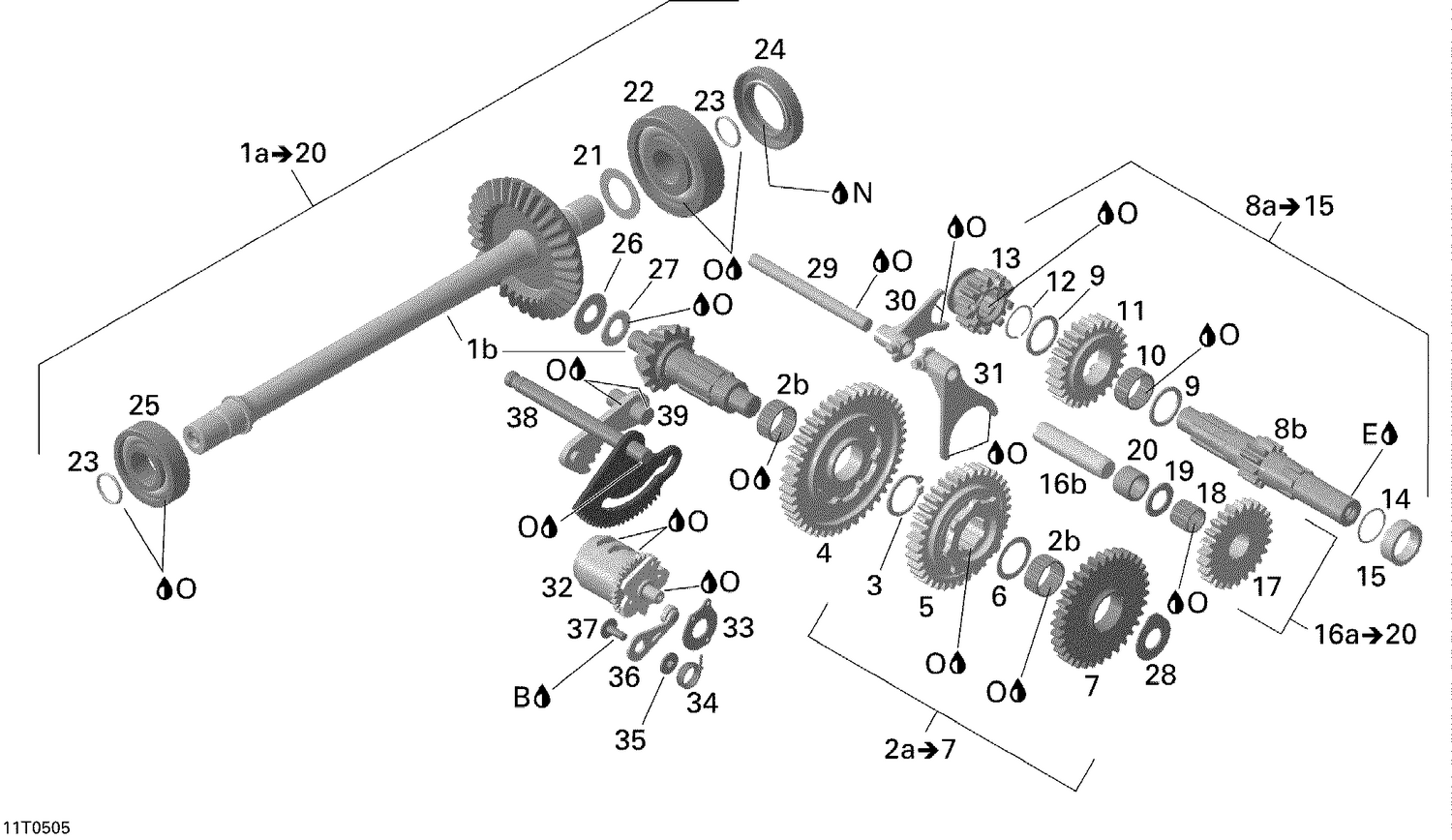

05- Gear Shift Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1a
Drive Ass'y
420684220
|
$1,299.49 | ||
|
Available to order. Add to View Price |
|||
|
#1a
Drive Ass'y
420684320
|
$1,610.99 | ||
|
Unavailable |
|||
|
#1b
BEVEL GEAR ASS?Y - Call your local BRP dealership
420296535
|
$493.49 | ||
|
Available to order. Add to View Price |
|||
|
#2a
Gear Wheel Set
420281285
|
$499.99 | ||
|
Available to order. Add to View Price |
|||
|
#2a
GEAR WHEEL SET - Call your local BRP dealership
420281287
|
$480.99 | ||
|
Available to order. Add to View Price |
|||
|
#2b
Needle Bearing
420632070
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Retaining Ring
420245850
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#4
Not Available As Spare Part - Sliding Gear, 44 Teeth
|
|||
|
Unavailable |
|||
|
#5
Not Available As Spare Part - Gear Pinion, 36 Teeth
|
|||
|
Unavailable |
|||
|
#6
Not Available As Spare Part - Thrust Washer
|
|||
|
Unavailable |
|||
|
#7
Not Available As Spare Part - Gear Pinion, 34 Teeth
|
|||
|
Unavailable |
|||
|
#8a
COUNTERSHAFT ASS'Y, 11 TEETH - Call your local BRP dealership
420620440
|
$353.99 | ||
|
Available to order. Add to View Price |
|||
|
#8a
COUNTERSHAFT ASS'Y, 11 TEETH - Call your local BRP dealership
420620442
|
$645.99 | ||
|
Available to order. Add to View Price |
|||
|
#8b
Not Available As Spare Part - Countershaft, 11 Teeth
|
|||
|
Unavailable |
|||
|
#9
Not Available As Spare Part - Thrust Washer
|
|||
|
Unavailable |
|||
|
#10
Needle Bearing
420632070
|
$25.99 | ||
|
Unavailable |
|||
|
#11
Not Available As Spare Part - Gear Pinion, 25 Teeth
|
|||
|
Unavailable |
|||
|
#12
Circlip
420445300
Superseded by 420445302
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#13
Not Available As Spare Part - Shift Gear, 16 Teeth
|
|||
|
Unavailable |
|||
|
#14
O-Ring
420630040
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
Distance Ring
420247110
|
|||
|
Available to order. Add to View Price |
|||
|
#16a
INTERMEDIATE GEAR SHAFT ASS'Y - Call your local BRP dealership
420635671
Superseded by 420635673
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#16b
Needle Pin
420229600
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Not Available As Spare Part - Intermediate Gear, 25 Teeth
|
|||
|
Unavailable |
|||
|
#18
Needle Cage
420432030
Superseded by 420432034
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Not Available As Spare Part - Thrust Washer
|
|||
|
Unavailable |
|||
|
#20
Not Available As Spare Part - Distance Ring
|
|||
|
Unavailable |
|||
|
#21
Washer Thrust Set
420281300
|
$95.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
Ball Bearing 6405
420632280
|
$98.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-Ring
420430370
Superseded by 420430373
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#24
Oil Seal
420650682
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
Ball Bearing
420932825
Superseded by 420932822
|
$30.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
Thrust Washer Set, MAG Side
420281306
|
$61.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
Axial Needle Bearing
420632300
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
Thrust Washer Set, CVT Side
420281302
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Pin
420229540
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Shift Fork
420257330
Superseded by 420257332
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Shift Fork
420257340
Superseded by 420257342
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Shift Drum Ass'y
420257326
Superseded by 420257325
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
ISOLATING WASHER - Call your local BRP dealership
420627780
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#34
Index Spring
420238290
|
$11.12 | ||
|
Available to order. Add to View Price |
|||
|
#35
BUSHING - Call your local BRP dealership
420227710
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
Index Lever Kit
703500254
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
Torx Screw M6 X 16
420241529
Superseded by 420241522
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
Shift Shaft Ass'y
420620135
Superseded by 420620136
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
Parking Lock Lever
420257315
Superseded by 420257316
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#B
Loctite 243, 10 ml
293800060
|
$21.49 | ||
|
Available to order. Add to View Price |
|||
|
#E
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#N
Grease, Super Lube
293550030
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#O
Not Available As Spare Part - Engine Oil
|
|||
|
Unavailable |
|||
