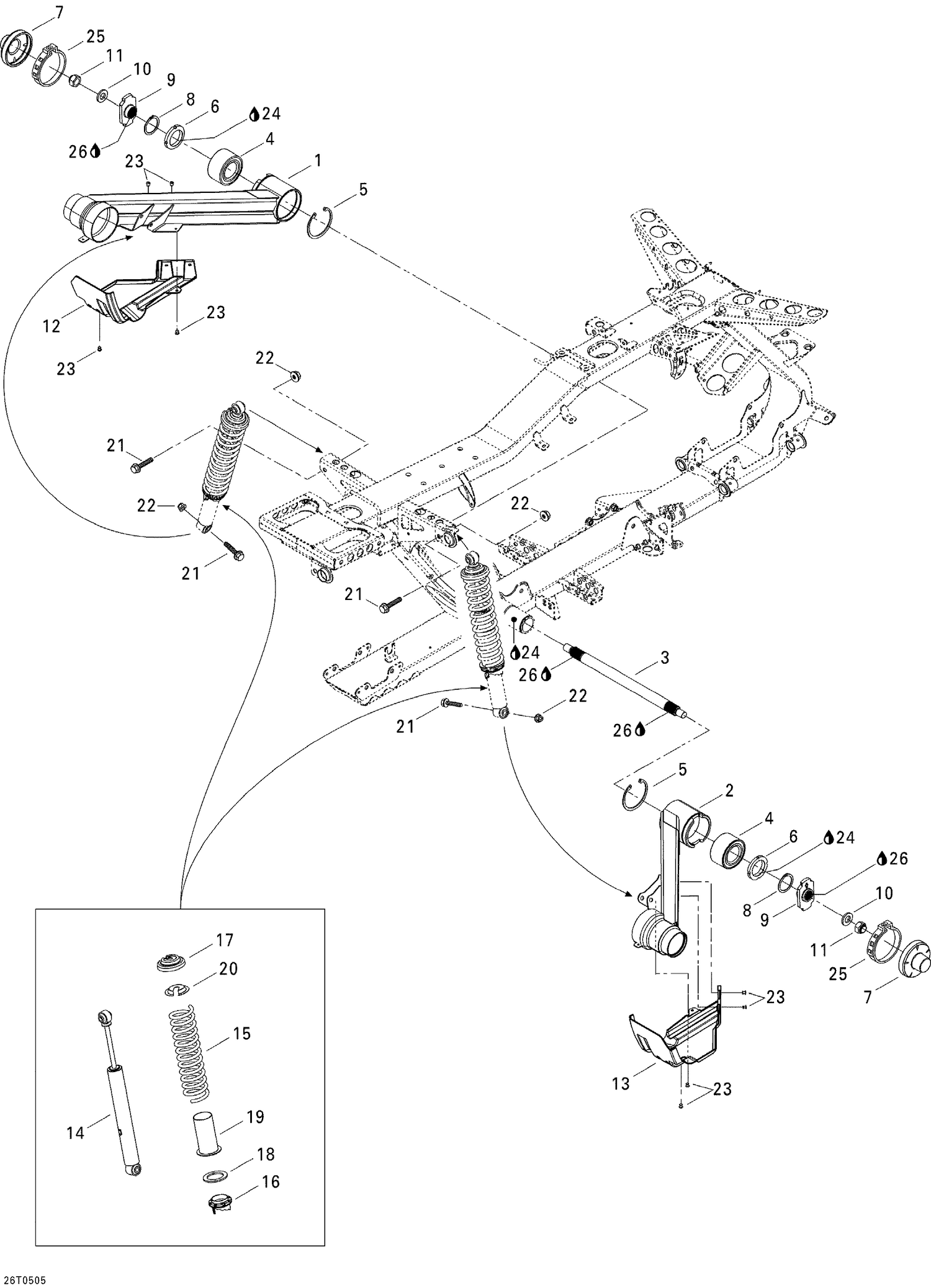

08- Rear Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LH SWING ARM - Call your local BRP dealership
706000347
Superseded by 706001185
|
$279.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Rh Swing Arm
706000350
Superseded by 706003425
|
$296.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Sway Bar
706000400
Superseded by 706001077
|
$116.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
Ball Bearing
293350037
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Circlip
293370041
|
$9.26 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
Nut
706000221
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Cover
706000222
Superseded by 706000749
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
Circlip 45 mm
293370027
|
$4.14 | ||
|
Available to order. Add to View Price |
|||
|
#9
Lever
706000224
Superseded by 706000548
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Washer
250200045
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
Elastic Stop Nut M18
232591414
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
LH PROTECTOR - Call your local BRP dealership
706000333
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
RH PROTECTOR - Call your local BRP dealership
706000334
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
Rear Shock
706000391
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING_COMPRESSION B-211 PAINTED - Call your local BRP dealership
706000245
|
|||
|
Available to order. Add to View Price |
|||
|
#15
REAR SPRING, BLACK - Call your local BRP dealership
706000289
|
$44.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
Adjuster Ring
706000294
Superseded by 706002356
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
Spring Stopper
503140600
Superseded by 706200881
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING SEAT - Call your local BRP dealership
706000335
Superseded by 706000533
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
PROTECTOR - Call your local BRP dealership
503139800
|
$7.39 | ||
|
Available to order. Add to View Price |
|||
|
#20
Cap
503141600
Superseded by 706200785
|
$4.79 | ||
|
Available to order. Add to View Price |
|||
|
#21
Hex. Flange Screw M10 X 55
207605544
|
$3.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
Hex. Flange Elastic Nut M10
233201414
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#23
Pop Rivet 3/16"
293150104
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#24
Loctite 243, 10 ml
293800060
|
$21.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
Oetiker Clamp
293650162
|
$9.79 | ||
|
Available to order. Add to View Price |
|||
|
#26
Loctite 271, 10 ml
293800005
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
