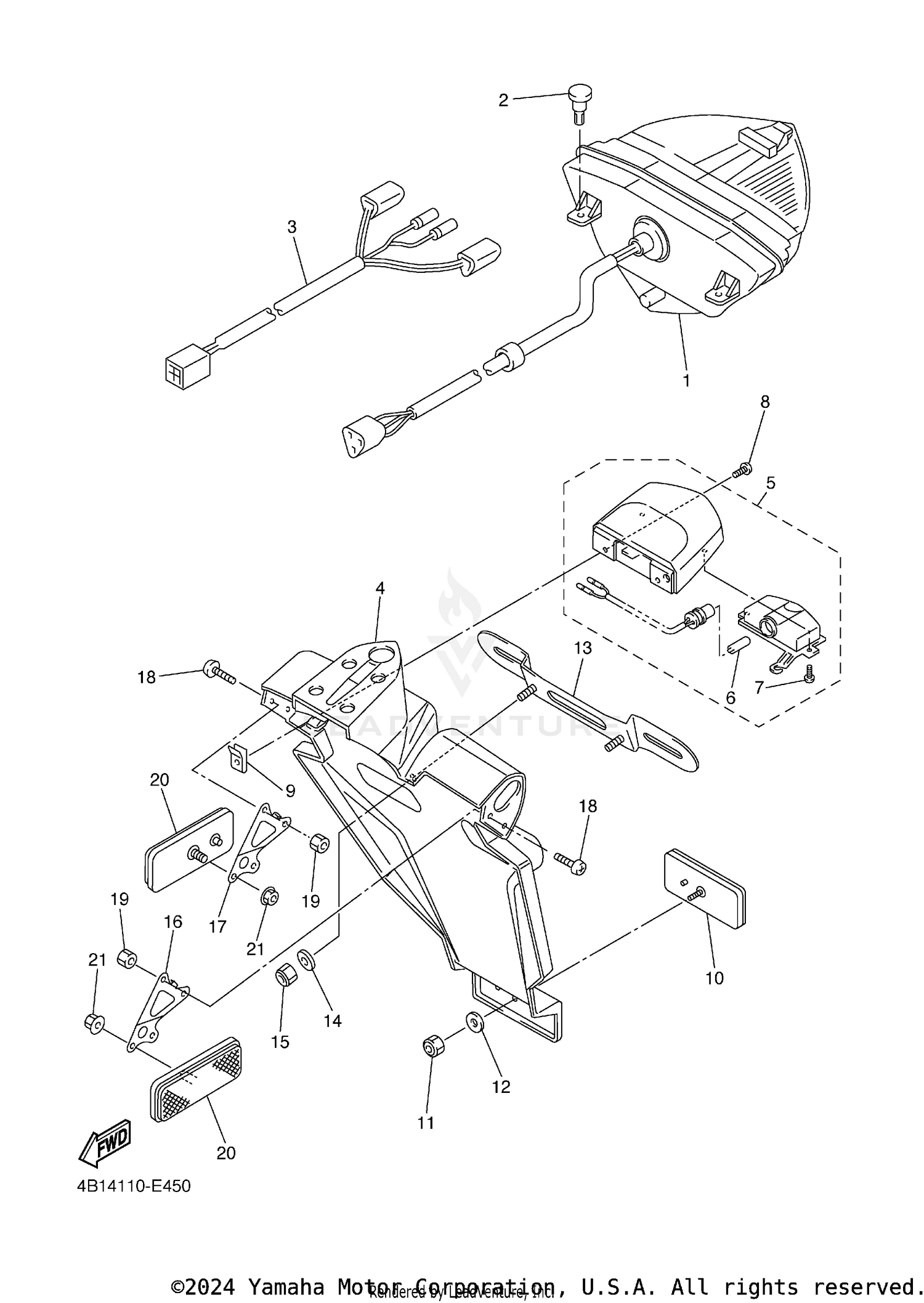

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT ASSY
5VY-84710-10-00
|
$272.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
RIVET
90269-06081-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
CORD, TAILLIGHT
5PW-84717-00-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUARD, MUD
5VY-21629-40-00
|
$29.99 | ||
|
Unavailable |
|||
|
#5
LICENCE LIGHT UNIT ASSY
5VY-84745-00-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BULB (12V-5W)
4HC-84744-00-00
Superseded by 4SV-84347-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, TAPPING
97706-04012-00
Superseded by 97707-40012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
5VY-84726-00-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
4KB-84117-00-00
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
REAR REFLECTOR ASSY
3Y6-85130-02-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, U
95607-05100-00
Superseded by 95617-05100-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-05725-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BRACKET, LICENSE
5MT-84751-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-06057-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, U
95607-06100-00
Superseded by 95617-06100-00
|
$2.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BRACKET, REAR STAY
5VY-21688-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET, REAR STAY 2
5VY-21689-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, ROUND HEAD
90150-04041-00
|
$0.50 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, U
95607-04100-00
Superseded by 95617-04100-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
REAR REFLECTOR ASSY
3Y6-85130-02-00
|
$30.99 | ||
|
Unavailable |
|||
|
#21
NUT, FLANGE
95707-05500-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
